All Products

PA0053TP

A356 ALUMINUM ALLOY WHEEL, 5L 4.5"SPACING. BLACK/GUNMETAL 205/75/14C

PA14014S

STEEL MOD SILVER 15" 5L 205/75/15C

1/2" Galvanized Hex Head Screws

5 sizes available

1/2" Galvanized Square U-Bolts

15 sizes available

1/2" Stainless Steel Square U-Bolts

2 sizes available

1/2" Stainless Steel Square UBolts

4 sizes available

Heavy-duty U-bolt helps to secure a bracket to your trailer's frame Stainless steel construction is sturdy and resists corrosion Made in the USA

1/4" ALUM "STRAIGHT" CROSS MEMBERS

3 sizes available

1/4" ALUM "V" CROSS MEMBERS

5 sizes available

10" Disc Brake Assemblies

Stainless Steel

BEARING 1-1/16" [44649] qty2 BEARING 1-3/8" [68149] qty2 SEAL 1-3/8"[UFP][257-168] qty2 BEARING PROTECTOR SET S/S #1.980 qty1 DISC ROTOR AND HUB S/S 10" 5L [UFP] qty2 DISC BRAKE CALIPER S/S LH [UFP DB35 qty1 DISC BRAKE CALIPER S/S RH [UFP DB35 qty1 7/16"X1"SHCS BOLT [UFP DISC CALIPER qty4 COTTER PIN 1/8"X1-1/4"[UFP AXLE] qty2

10" Disc Rotors

DISC ROTOR 10" 5LUG [UFP]

10" Keel Rolls

2 sizes available

100-07134-GL ~ FENDER BRACKET TORSION AXLES ALUMINUM FENDER (KARAVAN)

REPRESENTATION PHOTO MAGIC TILT FENDER BRACKET ~ 100-07134-GL MOUNTING HARDWARE NOT INCLUDED MOUNTS TO TORSION ARM ON AXLE (USE NYLOCK NUTS)

100-07313-GL ~ FENDER BRACKET TORSION AXLES PLASTIC FENDER (KARAVAN)

REPRESENTATION PHOTO MAGIC TILT FENDER BRACKET ~ 100-07313-GL MOUNTING HARDWARE NOT INCLUDED MOUNTS TO TORSION ARM ON AXLE (USE NYLOCK NUTS)

11GA Galvanized Cross members

XM-71" 3X3 11GA "V"

11GA Galvanized Cross members W/Yoke

2 sizes available

12" Disc Brake Assemblies

2 sizes available

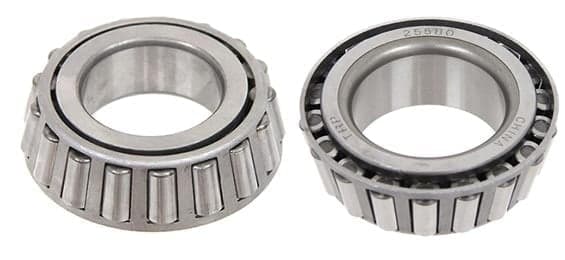

BEARING 1-1/4" [67048] qty2 BEARING 1-3/4" [25580] qty2 SEAL 1-3/4"[UFP][21333] qty2 BEARING PROTECTOR SET #2.717 qty1 DISC ROTOR AND HUB S/S 12" 8L [UFP] qty2 DISC BRAKE CALIPER S/S LH [UFP DB35 qty1 DISC BRAKE CALIPER S/S RH [UFP DB35 qty1 7/16"X1"SHCS BOLT [UFP DISC CALIPER qty4 COTTER PIN 1/8"X1-1/4"[UFP AXLE] qty2

12" Keel Rolls

3 sizes available

2-PC BOW REST ASSY

2 sizes available

2-PC BOW REST ASSY

BOW REST ASSY W/YLW 3"ROLLER

2" x 2" 93" Track 76"SC Straight Spring Axles

3 sizes available

2"x2" 93" Track 75"SC "V" Spring Axles

5 sizes available

2"x2" 93" Track 75"SC Straight Spring Axles

2 sizes available

2"x2" 93" Track 76" SC "V" Spring Axles

7 sizes available

2"x2" 93" Track 77"SC Straight Spring Axles

2 sizes available

2"X6" Carpeted Bunks

10 sizes available

2"x2" 71" Track 57-3/8"SC Straight Spring Axles

4 sizes available

2"x2" 81.5" Track 68-3/8" SC "V" Spring Axles

3 sizes available

2"x2" 84" Track 67" SC "V" Spring Axles

4 sizes available

2"x2" 84" Track 67" SC Straight Axles

2X2X84TR 67SC 5L HD W/BRK. FLANG

2"x2" 84" Track 68" SC "V" Spring Axles

2X2X84TR 68SC 5LHD

2"x2" 84" Track 68"SC Straight Spring Axles

2 sizes available

2"x2" 86.5" Track 77 3/8"SC Straight Spring Axles

3 sizes available

2"x2" 86.5"Track 73-3/8"SC "V" Spring Axles

4 sizes available

2"x2" 87" Track 73-3/8"SC "V" Spring Axles

2 sizes available

2"x2" 88" Track 73-3/8"SC Straight Spring Axles

2 sizes available

2"x2" 91"Track 73"SC "V" Spring Axles

4 sizes available

2"x2" 91"Track 73"SC Straight Axles

2 sizes available

2"x2" 93.5" Track 80-3/8"SC Straight Spring Axles

3 sizes available

2"x2" 93" Track 77.5" SC "V" Spring Axles

3 sizes available

2"x2" 93" Track 77.5"SC Straight Spring Axles

2X2X93TR 77.5 SC 5L HD

2"x2" 93" Track 78.5"SC "V" Spring Axles

3 sizes available

2"x2" 93"Track 77"SC "V" Spring Axles

3 sizes available

2"x2" 95" Track 78.5"SC "V" Spring Axles

2 sizes available

2"x3" 84" Track 67"SC "V" Spring Axles

3 sizes available

2"x3" 86.5" Track 73-3/8"SC "V" Spring Axles

2 sizes available

2"x3" 86" Track 67"SC "V" Spring Axles

3 sizes available

2"x3" 91" Track 73"SC "V" Spring Axles

4 sizes available

2"x3" 93.5" Track 80-3/8"SC "V" Spring Axles

2 sizes available

2"x3" 93" Track 75"SC "V" Spring Axles

6 sizes available

2"x3" 93" Track 75"SC Straight Spring Axles

2 sizes available

2"x3" 93" Track 76.5"SC "V" Spring Axles

2 sizes available

2"x3" 93" Track 76"SC "V" Spring Axles

6 sizes available

2"x3" 93" Track 78.5"SC "V" Spring Axles

2 sizes available

2"x3" 93" Track 80-3/8"SC Straight Spring Axles

2 sizes available

2"x3" 93" Track 86"SC Straight Spring Axles

3 sizes available

2"x3" 95" Track 76"SC "V" Spring Axles

2 sizes available

200-00061 ~ TORSION AXLE 2-1/2" "V" 88-3/4T 78FW 3.75K W/HUBS KNOTT (KARAVAN)

REPRESENTATION PHOTO MAGIC TILT TORSION AXLE W/ HUBS (KNOTT) TRACK (HUB FACE TO HUB FACE): 88-3/4" LUG NUTS NOT INCLUDED MOUNTING HARDWARE (NOT INCLUDED) ALUMINUM TUBE FRAME BOTTOM CHANNEL PY9145-T ALUMINUM I-BEAM FRAME PY9145 GALVANIZED TUBE FRAME U-BOLTS 95x12x10

200-00102 ~ TORSION AXLE 2-1/2" "V" 89-1/4T 74-1/2FW 3.75K W/HUBS KNOTT (KARAVAN)

REPRESENTATION PHOTO MAGIC TILT TORSION AXLE W/ HUBS (KNOTT) TRACK (HUB FACE TO HUB FACE): 89-1/4" LUG NUTS NOT INCLUDED MOUNTING HARDWARE (NOT INCLUDED) ALUMINUM TUBE FRAME BOTTOM CHANNEL PY9145-T ALUMINUM I-BEAM FRAME PY9145 GALVANIZED TUBE FRAME U-BOLTS 96x12x10

200-00124-GL ~ TORSION AXLE 2-1/4" STRAIGHT 53T 44FW 1.5K W/HUBS KNOTT (KARAVAN)

REPRESENTATION PHOTO MAGIC TILT TORSION AXLE W/ HUBS (KNOTT) TRACK (HUB FACE TO HUB FACE): 53" LUG NUTS NOT INCLUDED MOUNTING HARDWARE (NOT INCLUDED) ALUMINUM TUBE FRAME BOTTOM CHANNEL PY9145-T ALUMINUM I-BEAM FRAME PY9145 GALVANIZED TUBE FRAME U-BOLTS 60x13x8

205-00161-NA ~ LED COMBINATION TAIL LIGHT LH >80" (KARAVAN)

REPRESENTATION PHOTO MAGIC TILT TAIL LIGHT ~ 205-00161-NA COMBINATION LED TAIL LAMP WITH SIDE LIGHT (NOT REFLECTOR) FOR USE ON TRAILERS GREATER THAN 80" WIDE. COMES WITH PRE-MOLDED ORIGINAL KARAVAN CONNECTORS THAT PLUG INTO THE BACK WITH A 3-PRONG PLUG.

205-00162-NA ~ LED COMBINATION TAIL LIGHT RH >80" (KARAVAN)

REPRESENTATION PHOTO MAGIC TILT TAIL LIGHT ~ 205-00162-NA COMBINATION LED TAIL LAMP WITH SIDE LIGHT (NOT REFLECTOR) FOR USE ON TRAILERS GREATER THAN 80" WIDE. COMES WITH PRE-MOLDED ORIGINAL KARAVAN CONNECTORS THAT PLUG INTO THE BACK WITH A 3-PRONG PLUG.

205-00308-NA ~ 4-WAY PIGTAIL KARAVAN

REPRESENTATION PHOTO MAGIC TILT REPLACEMENT PIGTAIL FOR KARAVAN ~ 205-00308-NA REPLACEMENT 4-PIN PIGTAIL FOR MAGIC TILT TRAILERS MADE BY KARAVAN INCLUDED MOLDED CONNECTORS 4 X DOUBLE, 2 X SINGLE USED ON TRAILERS WITHOUT BRAKES

205-00309-NA ~ 5-WAY PIGTAIL KARAVAN

REPRESENTATION PHOTO MAGIC TILT REPLACEMENT PIGTAIL FOR KARAVAN ~ 205-00309-NA RPLACEMENT 5-PIN PIGTAIL FOR MAGIC TILT TRAILERS MADE BY KARAVAN INCLUDED MOLDED CONNECTORS USED ON TRAILERS WITH BRAKES

205-00325-NA ~ LED COMBINATION TAIL LIGHT <80" (KARAVAN)

REPRESENTATION PHOTO MAGIC TILT SUBMERSIBLE LED TAIL LIGHT ~ 205-00325-NA SOLD INDIVIDUALLY * OFTEN USED ON TRAILERS OVER 80" WIDE WITH SECONDARY SIDE MARKER LIGHTS USED ON SELECT ALUMINUM TRAILERS MADE BY KARAVAN FOR MAGIC TILT INCLUDES MOLDED CONNECTORS MOUNT SCREWS NOT INCLUDED

205-00346-NA ~ LED COMBINATION TAIL LIGHT LH <80" (KARAVAN)

REPRESENTATION PHOTO MAGIC TILT TAIL LIGHT ~ 205-00346-NA COMBINATION LED TAIL LAMP WITH SIDE REFLECTOR FOR USE ON TRAILERS LESS THAN 80" WIDE. COMES WITH PRE-MOLDED ORIGINAL KARAVAN CONNECTORS.

205-00347-NA ~ LED COMBINATION TAIL LIGHT RH <80"(KARAVAN)

REPRESENTATION PHOTO MAGIC TILT TAIL LIGHT ~ 205-00347-NA COMBINATION LED TAIL LAMP WITH SIDE REFLECTOR FOR USE ON TRAILERS LESS THAN 80" WIDE. COMES WITH PRE-MOLDED ORIGINAL KARAVAN CONNECTORS.

205-00348-NA ~ LED COMBINATION TAIL LIGHT LH >80" (KARAVAN)

REPRESENTATION PHOTO MAGIC TILT TAIL LIGHT ~ 205-00348-NA COMBINATION LED TAIL LAMP WITH SIDE LIGHT (NOT REFLECTOR) FOR USE ON TRAILERS GREATER THAN 80" WIDE. COMES WITH PRE-MOLDED ORIGINAL KARAVAN CONNECTORS.

205-00349-NA ~ LED COMBINATION TAIL LIGHT RH >80"(KARAVAN)

REPRESENTATION PHOTO MAGIC TILT TAIL LIGHT ~ 205-00349-NA COMBINATION LED TAIL LAMP WITH SIDE LIGHT (NOT REFLECTOR) FOR USE ON TRAILERS GREATER THAN 80" WIDE. COMES WITH PRE-MOLDED ORIGINAL KARAVAN CONNECTORS.

205-00386-NA ~ LED COMBINATION TAIL LIGHT LH >80" (KARAVAN)

REPRESENTATION PHOTO MAGIC TILT TAIL LIGHT ~ 205-00386-NA COMBINATION LED TAIL LAMP WITH SIDE LIGHT (NOT REFLECTOR) FOR USE ON TRAILERS GREATER THAN 80" WIDE. COMES WITH PRE-MOLDED ORIGINAL KARAVAN CONNECTORS.

205-00387-NA ~ LED COMBINATION TAIL LIGHT RH >80" (KARAVAN)

REPRESENTATION PHOTO MAGIC TILT TAIL LIGHT ~ 205-00387-NA COMBINATION LED TAIL LAMP WITH SIDE LIGHT (NOT REFLECTOR) FOR USE ON TRAILERS GREATER THAN 80" WIDE. COMES WITH PRE-MOLDED ORIGINAL KARAVAN CONNECTORS.

206-00116-AL ~ 1-AXLE FENDER ALUMINUM 8" x 9-3/4" x 26-1/2" (KARAVAN)

REPRESENTATION PHOTO PRIMARILY USED ON KARAVAN TRAILERS WITH KNOTT TORSION AXES AND 13" TIRES (MAY WORK IN OTHER APPLICATIONS) COMES WITH PRE-DRILLED HOLES FOR 100-07134-GL FENDER BRACKET ON KNOTT TORSION AXLES MOUNTING HARDWARE NOT INCLUDED

219-00055-NA ~ SINGLE-EYE HOOK SPRING 27-1/2" KARAVAN

REPRESENTATION PHOTO MAGIC TILT LEAF SPRING ~ 219-00055-NA SINGLE-EYE HOOK SPRINGS ARE MEASURED FROM THE CENTER OF THE FRONT EYE TO THE END OF THE HOOK. INCLUDES .58" ID NYLON SPRING BUSHINGS (ALLOWS FOR GALVANIZED 1/2" BOLT) DOES NOT INCLUDE MOUNTING HARDWARE MOUNTING HARDWARE KITS HARDWARE KITS SPRING EYE BOLT PK1450

2X4 PLASTIC COVER BUNK[GREY]

5 sizes available

2X6 PLASTIC COVER BUNK[GREY]

7 sizes available

3-1/2" x 3-1/2" 79"FW Straight Torsion Axles

3 sizes available

3-1/2" x 3-1/2" 79"FW "V" Torsion Axles

3 sizes available

3" CHANNEL U-BOLT KIT (Minimum Order of 20 Each)

1 - 7/16X3-1/16X2-13/16 Ubolt, 2- 7/16 Lock Washers, and 2- 7/16 Nut

3" x 3" 69"FW Straight Torsion Axles

2 sizes available

3" x 3" 70"FW "V" Torsion Axles

2 sizes available

3" x 3" 70"FW Straight Torsion Axles

2 sizes available

3" x 3" 76"FW "V" Torsion Axles

2 sizes available

3" x 3" 76"FW Straight Torsion Axles

2 sizes available

3" x 3" 79"FW "V" Torsion Axles

3 sizes available

3" x 3" 79"FW Straight Torsion Axles

2 sizes available

3" x 3" FW 86" Straight Torsion Axles

AX[STR]3X3 W/5LUG 86FRM ASSY

3"X3" 11GA Galvanized Tongue

9 sizes available

3"X4" Galvanized Tongue

3 sizes available

3"X5" 3/16GA Galvanized Tongue

5 sizes available

3/16" ALUM "STRAIGHT" CROSS MEMBERS

5 sizes available

3/16" ALUM "V" CROSS MEMBERS

7 sizes available

3/8" Stainless Steel Square UBolts

Heavy-duty U-bolt helps to secure a bracket to your trailer's frame Stainless steel construction is sturdy and resists corrosion Made in the USA

300-03156-GL ~ FENDER BRACKET GALVANIZED TRAILERS 37" FENDERS KARAVAN

REPRESENTATION PHOTO MAGIC TILT FENDER BRACKETS ~ 300-03156-GL MOUNTS WITH U-BOLTS OVER TUBE FRAME USED WITH 37" PLASTIC FENDERS FOR 12" AND 13" TIRES

300-03758-GL ~ FENDER BRACKET GALVANIZED TRAILERS 40" FENDERS KARAVAN

REPRESENTATION PHOTO MAGIC TILT FENDER BRACKETS ~ 300-03758-GL MOUNTS WITH U-BOLTS OVER TUBE FRAME USED WITH 40" PLASTIC FENDERS FOR 14" TIRES

300-03858-GL ~ FENDER BRACKET ALUMINUM TRAILERS 37" FENDERS KARAVAN

REPRESENTATION PHOTO MAGIC TILT FENDER BRACKETS ~ 300-03858-GL MOUNTS WITH PY1701 BOLTS UNDER ALUMINUM TUBE FRAMES USED WITH 37" PLASTIC FENDERS FOR 12" AND 13" TIRES

320-01429-GL ~ FRAME SPARE TIRE MOUNT KARAVAN

REPRESENTATION PHOTO MAGIC TILT FRAME SPARE TIRE MOUNT ~ 320-01429-GL TOP OF TIRE SLANTS AWAY FROM FRAME FOR ADDITIONAL CLEARANCE UNDER BOW INCLUDES: 4 X 3/8" FLAT WASHER GALV 4 X 3/8" NUT GALV 2 X LUG NUT 2 X U-BOLT 3/8"x 3"x 4-1/16" GALV 2 X U-BOLT SEAT PLASTIC 2 X BOLT 1/2"x 1-1/2" GALV 2 X 1/2" NUT GALV 1 X SLANTED SPARE TIRE CARRIER GALV

3X10 BUNK W/CARPET

4 sizes available

3X6 BUNK W/CARPET

5 sizes available

3X8 BUNK W/CARPET

7 sizes available

4 Way

6 sizes available

4" x 4" 79"FW Straight Torsion Axles

7 sizes available

5 Lug Hubs

2 sizes available

5-Way Wire Harnesses

3 sizes available

5/8" Shafts

3 sizes available

5Lug Hub Assemblies

HUB ASSY 1-3/8X1-1/16 5L

6Lug Hub Assemblies

2 sizes available

6Lug Hub Assemblies (Copy)

3 sizes available

7/16" Bunk Bracket UBolts W/Nuts

Part Qty PY1406 NUT HEX 7/16 HDG 2 PY1515 WASHER FLAT USS 1/2 HDG 2 PY1606 WASHER LOCK 7/16 HDG 2 PY2090 UBOLT 7/16X3-1/16X2-13/16 SQ GALV 1

7/16" Galvanized Square UBolts

2 sizes available

8Lug Hub Assemblies

2 sizes available

90885 ~ TEKONSHA P2 ELECTRIC BRAKE CONTROLLER

REPRESENTATION PHOTO ** THIS IS A SPECIAL BUY OFFERED AT A GREATLY REDUCE PRICE! ** MAGIC TILT ELECTRIC BRAKE CONTOLLER ~ 90885 The Prodigy P2 electric brake controller supplies power to your tow vehicle&#39;s brakes proportionally. This means that your trailer brakes at the same time and with the same strength as your vehicle - even in reverse gear. If you have to slam on your truck&#39;s brakes, the trailer&#39;s brakes respond instantly, too - there&#39;s no delay. Therefore your vehicle&#39;s brakes aren&#39;t overworked from trying to stop the entire load, and they suffer less wear and tear extending the longevity of your brakes compared to time based controls. The P2 also cuts power to the trailer&#39;s brakes when your vehicle is stopped - extending the life of the magnets and brake shoes in the trailer&#39;s brake assemblies. Aside from smoother, more efficient braking that results from proportional application of stopping power, the Prodigy P2 also has a boost feature that gives you more initial braking power for those times when you&#39;re towing heavier loads. That&#39;s when more braking power is needed to stop the trailer at the same time as the tow vehicle. The boost setting sends 13 or 25 percent more power (depending on which setting you choose) back to the trailer brakes, thus compensating for heavier loads. You can boost the power manually at the push of a button as well. The boost feature gets more power to the trailer brakes exactly when you need it most, and your fully loaded rig brakes smoothly and comfortably. This brake controller levels automatically as you drive, so there&#39;s no problem using it on steep hills or when towing through the mountains. The self-leveling feature also makes the Prodigy easy to install: Simply mount it in your cab at any vertical angle (it has 360-degree rotation). It&#39;s easy to see the display and to access the pivoting manual override lever on the bottom of the unit. The P2&#39;s continuous diagnostic check monitors your connection and magnet condition, so you can fix any problems before they land you on the side of the road. This newest version of Tekonsha&#39;s popular Prodigy brake controller has reverse battery protection to preserve the unit and accessory systems. And the power-save mode reduces battery drain when the controller isn&#39;t in use.

Actuator Components

2 sizes available

Actuator Cover Plate

BRAKE LOCKOUT CAP-UFP

Actuators for 3" Tongues, In-Line

6K# 3HOLE ACTUATOR

Actuators for 3" Tongues, In-Line W/Swing

6K# ACTUATOR W/SWING

Actuators for 3" Tongues, In-Line W/Swing

7K# ACTUATOR W/3X4 SWING ASSY

Airboat Guide Poles

2 sizes available

Aluminum Cross-member "L" Brackets

ADJ'L'BRKT 5-1/2"-ALUM

Aluminum Cross-member "L" Brackets

L BRACKET ALUM 8" HD

Aluminum Fenders for Single Axle Trailers

5 sizes available

Round fender covers 1 tire on your single-axle trailer Acts as a splash guard to keep road debris from hitting other vehicles and to help protect your trailer's cargo Diamond tread plating provides a stylish look and non-slip surface Sturdy, lightweight, 14-gauge aluminum construction resists corrosion bolt-on installation Not pre-drilled Mounting brackets for bolt-on installation sold separately Made in the USA

Aluminum Fenders for Tandem Axle Trailers

2 sizes available

Aluminum Smooth Fenders for Single Axle Trailers

4 sizes available

DECAL NOT INCLUDED

Aluminum Smooth Fenders for Tandem Axle Trailers

4 sizes available

Magic Tilt Non-Skid not included

Aluminum Tail Light Brackets

4 sizes available

Angles for Single Axle

11 sizes available

Bearing Kits & Conversion Kits

HD 1-3/4"X1-1/4" UFP

Kit Includes: Part Description Qty PE1550 BEARING HD 1-1/4" [15123] 1 PE1600 BEARING 1-3/4" [25580] 1 PE1850 RACE-HD 1-1/4" [15245] 1 PE1900 RACE 1-3/4" [25520] 1 PE2101 SEAL 1-3/4"[UFP][21333] 1 PH2012 COTTER PIN 1/8"X1-1/4"[UFP AXLE] 1

Bearing Protector Bras

2 sizes available

Bearing Protectors

4 sizes available

Desc

BOATBUCKLE RETRACTABLE S/S TRANSOM TIEDOWN PAIR

RETRACTABLE S/S TRANSOM TIEDOWN

Bolster Dimpled Bunk Brackets

10" BRKT No Pivot Top

Bolster Dimpled Bunk Brackets

10" BRKT W/Pivot Top

Bolster Dimpled Bunk Brackets

12" BRKT No Pivot Top

Bolster Dimpled Bunk Brackets

12" BRKT W/Pivot Top

Bolster Dimpled Bunk Brackets

8" BRKT No Pivot Top

Bolster Dimpled Bunk Brackets

8" BRKT W/Pivot Top

Bolt On Swing Tongue Assemblies

4 sizes available

Bow Board Kits

BOW SUPPORT ALS TO 24'

Bow Board Kits

BOW SUPPORT ALS 26'

BOW EYE SAFETY CHAIN

5 sizes available

BOW REST ASSY W/BMPR

5 sizes available

BOW REST ASSY W/WOOD

REST ASSY W/WOOD[ALOHA ONLY]

Bow Rest/Roller Guide Components

ROLLER GUIDE[Bar Only 8"]

Bow Stop Rollers

8 sizes available

Brake Caliper Components

BRAKE LINE COUPLER

These unions are the best option to join two 3/16" brake lines together.

Brake Line Kits for Single Axle

6 sizes available

1- HYD. BRAKE HOSE W/SWIVEL 19' 1- HYD.BRAKE/BRASS T-FITTING 1- HYD. BRAKE HOSE W/SWIVEL 1' 1- HYD. BRAKE HOSE W/SWIVEL 6'6" 10 - PLASTIC WIRE TIE HD 14-1/2""

BRAKE PADS

4 UNIVERSAL BRAKE PAD (SET)

Complete axle set, pre-boxed as full axle set of 4

Bunk Risers

Carriage Bolts

BOLT 5/16 X 3/4 PLTD

Clamp-On Sockets

3 sizes available

Width4"

Clamp-On Sockets

CLAMP ON H.W.KIT FOR 2X2 TUBE

COTTER PINS

COTTER PIN 1/8"X1-1/4"[UFP AXLE]

Coupler Repair Kit

COUPLER REPAIR KIT 2" D&L

COUPLERS

3 sizes available

Cross-member "L" Brackets W/Brace

5/1/2002

Cross-member "L" Brackets W/Brace

8

Custom Step Pads

2 sizes available

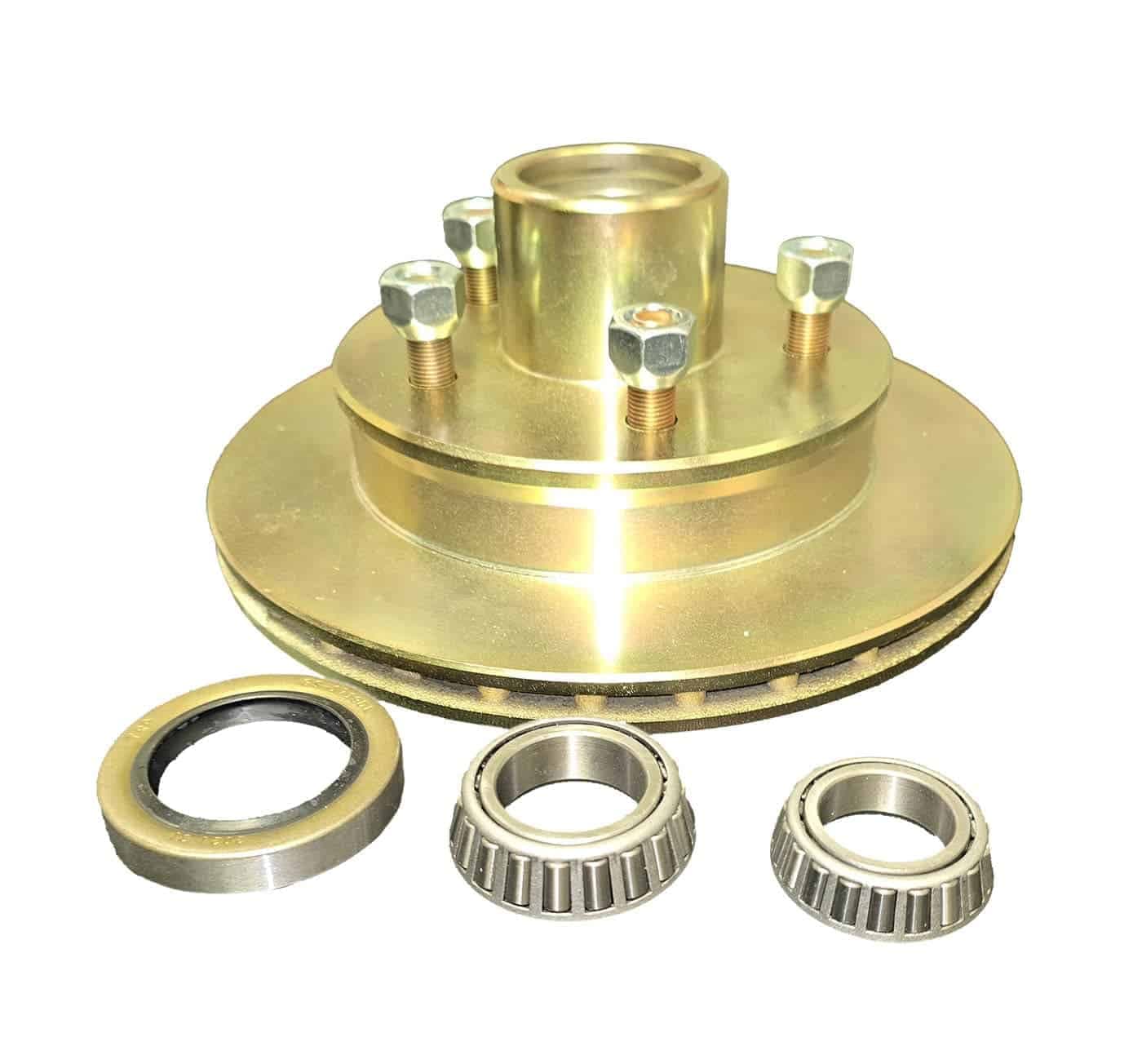

DISC BRAKE ASSY 10" 5L [NO CAL] EA.

UFP

includes : PD2250 LUG NUT 13/16" qty: 5 PD1400 BEARING 1-1/16" [44649] qty: 1 PD1450 BEARING 1-3/8" [68149] qty: 1 PD2055 SEAL 1-3/8"[UFP][257-168] qty: 1 PG2026-1 DISC ROTOR & HUB 10" 5L PLTD UFP bearing protectors sold separately

Disc Brake Calipers

2 sizes available

DISC BRAKE ROTOR KIT 12" 6L [NO CAL] EA.

UFP

Double Eye Springs

5 sizes available

Dust Caps

4 sizes available

Electrical Components

4 sizes available

End Caps Bell

BOW STOP - TJ WHEELS

End Caps Bell

11 sizes available

Fender Brackets

4 sizes available

FENDER PAD SINGLE

14" SGL UHMW BLACK

Galvanized 5 Lug Wheels with Bias Ply Tires

5 sizes available

Galvanized 5 Lug Wheels with Radial Tires

3 sizes available

Galvanized 6 Lug Wheels with Bias Ply Tires

T&W SBB (ST225/75D 15D)

Galvanized 6 Lug Wheels with Radial Tires

T&W ST225/75R 15D

Galvanized Cross-member "L" Brackets

6" X-ARM, GALV, 8 HOLE

6" X-ARM-L VERTICAL BUNK BRACKET, GALV, 8-HOLE

Galvanized Cross-member "L" Brackets

ADJ "L" BRKT 6"

Galvanized Cross-member "L" Brackets

ADJ "L" BRKT 8" [TALL]

Galvanized Cross-member "L" Brackets

ADJ "L" BRKT 10" [TALL]

Galvanized Fenders for Single Axle Trailers

8 sizes available

Galvanized Fenders for Tandem Axle Trailers

4 sizes available

Galvanized Flat Washers

2 sizes available

Galvanized Hex Head Screws

6 sizes available

Galvanized Hex Nuts

3 sizes available

Galvanized Lock Washers

3 sizes available

Galvanized Plates

2-HOLE PLT.[PWC-4 BACKING PLT.]

Grey Carpet

GREY 12"X12" (Per FT)

Grey Carpet

GREY 9"X12" (Per FT)

Grey Carpet

GREY 20"X12" (Per FT)

Grey Carpet

GREY 24"X12" (Per FT)

Grey Carpet

GREY 12" X 100' Roll

Grey Carpet

GREY 24" X 100' Roll

Guide Brackets

ON BRACKET [EACH]

Guide Components

3 sizes available

HYDRAULIC RUBBER BRAKE HOSES

15 sizes available

KEEL ROLL BRACKET ASSY

2 sizes available

SKUPS1310-1

Ladders

ALUM TONGUE MOUNTED ASSY

Comes with Hardware to mount

Lug Nuts

CHROME LUG NUT (MCGARD)

MAGIC TILT SHARK DECAL

3 sizes available

MAGIC TILT SHARK NON SKID DECAL

3 sizes available

MASTER CYLINDER CAPS

MODEL 6 CYLINDER CAP

ML Series Spare Tire Mounts

9 sizes available

NK0600 ~ RED REFLECTOR

Magic Tilt Reflector ~ Nk0600 Good to know: Fastening Hardware Not Included

NW0192 ~ PINNACLE BOW REST REPLACEMENT BUMPER

REPRESENTATION PHOTO MAGIC TILT D-4 BUMPER ~ NW0192 SOLD INDIVIDUALLY MOUNTING HARDWARE NOT INCLUDED USED ON THE FOLLOWING BOW STOPS (NOT INCLUDED) PO1976 , PO1976N , PO1977 , PO1977N , PO1978 , PO1997 , PO1998

PA0220G

13" GALVANIZED SPOKE 5 LUG 175/80/13D

PA1665 ~ TIRE & WHEEL 10" RIM 800x10 GALVANIZED 5-LUG

REPRESENTATION PHOTO MAGIC TILT TIRE & WHEEL ~ PA1665

PA1751 ~ TIRE & WHEEL 12" RIM 480x12 GALVANIZED 5-LUG

REPRESENTATION PHOTO MAGIC TILT TIRE & WHEEL

PA2440G

14" GALVANIZED 5 LUG SPOKE 205/75/14C

PA3905 ~ TIRE & WHEEL 16" RIM ST245/75R16 GALVANIZED 8-LUG

REPRESENTATION PHOTO MAGIC TILT TIRE & WHEEL ~ PA3905

PA3908 ~ TIRE & WHEEL 16" RIM ST235/85R16 GALVANIZED 8-LUG

REPRESENTATION PHOTO MAGIC TILT TIRE & WHEEL ~ PA3908

PA4067 ~ 480 x 12C 12" TIRE & WHEEL ALUMINUM BLACK

REPRESENTATION PHOTO MAGIC TILT TIRE & WHEEL DOES NOT INCLUDE MAG WHEEL CENTER CAPS WHICH ARE NO LONGER AVAILABLE.

PD1300 ~ 4-LUG HUB ASSEMBLY 1-1/16"

REPRESENTATION PHOTO MAGIC TILT HUB KIT ASSEMBLY ~ PD1300 INCLUDES: 1 x HUB W/ RACE-DACRO 1-1/16" 4-LUG 4 x LUG NUT 13/16" 2 x BEARING 1-1/16" (44649) 1 x SEAL 1-1/16" (198-125) 1 x DUST CAP (1.980) 1 x COTTER PIN 1/8" x 1-3/4" PLATED DO YOU NEED BEARING PROTECTORS AND BRAS? (NOT INCLUDED) PF1054 BEARING PROTECTOR PF1060 BRA

PD1360 ~ 4-LUG HUB WITH RACE 1-1/16" COATED

REPRESENTATION PHOTO MAGIC TILT HUB WITH RACE ~ PD1360 INCLUDES RACES ALREADY INSTALLED NOT INCLUDED BEARING KIT PE1100 BEARING PROTECTOR PF1054 AND BRA PF1060

PD1600 ~ 5-LUG HUB ASSEMBLY 1-1/16" BEARINGS 1.38" ID SEAL GREASED (UFP)

REPRESENTATION PHOTO MAGIC TILT KUB KIT ASSEMBLY ~ PD1600 INCLUDES: 1 x HUB ZINC W/ RACES 5-LUG 5 x LUG NUT 13/16" 2 x BEARING 1-1/16" (44649) 1 x SEAL 1-1/16" UFP (198-138) 1 x DUST CAP 1" (1.980) 1 x COTTER PIN 1/8" x 1-3/4" PLATED DO YOU NEED? (NOT INCLUDED) PF1054 BEARING PROTECTOR PF1060 BRA

PD1602-L ~ 5-LUG HUB ASSEMBLY 1-1/16" BEARINGS 1.25" ID SEAL GREASED (UFP & NON-UFP)

REPRESENTATION PHOTO MAGIC TILT PRE-GREASED HUB ASSEMBLY ~ PD1602-L APPLICATION: ALL 1-1/2" x 1-1/2" AXLES USING 1-1/16" BEARINGS AND 1.25" ID SEAL (UFP AND NON-UFP) ALL 2" x 2" 1,500 TO 2,500-POUND UFP AXLES FROM 2022 ON COMES PRE-GREASED AND ASSEMBLED - READY TO USE IF YOU HAVE A 2" x 2" UFP AXLE THAT USES 1-1/16" BEARINGS A 1.38" ID SEAL, USE PD1600 HUB KIT. INCLUDES: 1 x PD1670 GALV HUB 5 x PD2250 LUG NUT 1/2" 2 x PE1400 BEARING 1-1/16" (44649) (INSTALLED) 2 x PE1710 RACE (44610) (INSTALLED) 1 x PE2010 SEAL 1.98" OD x 1.25" ID (INSTALLED) 1 x PE2301 POSI-LUBE DUST CAP 1.98" 1 x PE2311 POSI-LUBE RUBBER PLUG 1 x PH2014 COTTER PIN 1/8" x 1-3/4" PLATED DO YOU NEED? (NOT INCLUDED) PF1054 BEARING PROTECTOR PF1060 BRA

PD1602-L-100 ~ 5-LUG HUB ASSEMBLY 1-1/16" BEARINGS 1.25" ID SEAL GREASED (UFP & NON-UFP)

PALLET OF 100

PD1602-L Quantity of 100 Palletized

PD1670 ~ 5-LUG HUB WITH RACE 1-1/16" GALVANIZED

REPRESENTATION PHOTO MAGIC TILT HUB W/ RACE ~ PD1670 INCLUDES RACES ALREADY INSTALLED NOT INCLUDED BEARING PROTECTOR PF1054 AND BRA PF1060

PD1700-L ~ 5-LUG HUB ASSEMBLY 1-1/16"x1-3/8" GREASED (UFP)

Magic Tilt Pre-Greased Hub Assembly ~ PD1700-L Any Axle Using 1-1/16" x 1-3/8" Bearings and a seal with 1.68" ID Included in this kit: 1 x PD1760 Galv Hub 5 x PD2250 Lug Nut 1/2" 1 x PE1400 Bearing 1-1/16" (44649) (Installed) 1 x PE1450 Bearing 1-3/8" (68149) (Installed) 1 x PE1710 Race (44610) (Installed) 1 x PE1750 Race (68111) (Installed) 1 x PE2055 Seal 2.561" OD x 1.687" ID (Installed) 1 x PE2301 Posi-Lube Dust Cap 1.98" 1 x PE2311 Posi-Lube Rubber Plug 1 x PH2012 Cotter Pin 1/8" x 1-1/4" Plated Good to know: Comes pre-greased and assembled - ready to use Need? (sold separately) PF1054 Bearing Protector PF1060 Bra

PD1702-L ~ 5-LUG HUB ASSEMBLY 1-1/16"x1-3/8" GREASED (NON UFP)

REPRESENTATION PHOTO MAGIC TILT PRE-GREASED HUB ASSEMBLY ~ PD1702-L INCLUDES: 1 x PD1760 GALV HUB 5 x PD2250 LUG NUT 1/2" 1 x PE1400 BEARING 1-1/16" (44649) (INSTALLED) 1 x PE1450 BEARING 1-3/8" (68149) (INSTALLED) 1 x PE1710 RACE (44610) (INSTALLED) 1 x PE1750 RACE (68111) (INSTALLED) 1 x PE2050 SEAL 2.565" OD x 1.719" ID (INSTALLED) 1 x PE2301 POSI-LUBE DUST CAP 1.98" 1 x PE2311 POSI-LUBE RUBBER PLUG 1 x PH2014 COTTER PIN 1/8" x 1-3/4" PLATED COMES PRE-GREASED AND ASSEMBLED - READY TO USE DO YOU NEED? (NOT INCLUDED) PF1054 BEARING PROTECTOR PF1060 BRA

PD1702-L-100 ~ 5-LUG HUB ASSEMBLY 1-1/16"x1-3/8" GREASED (NON UFP)

PALLET OF 100

PD1760 ~ 5-LUG HUB WITH RACE 1-1/16" x 1-3/8" GALVANIZED

REPRESENTATION PHOTO MAGIC TILT HUB W/ RACE ~ PD1760 INCLUDES RACES ALREADY INSTALLED NOT INCLUDED BEARING KIT PE1152 (UFP), PE1150 (NON-UFP) BEARING PROTECTOR PF1054 AND BRA PF1060

PD1857 ~ 6-LUG HUB WITH RACE 1-1/4" x 1-3/4" GALVANIZED

REPRESENTATION PHOTO MAGIC TILT HUB WITH RACE ~ PD1857 INCLUDES RACES ALREADY INSTALLED NOT INCLUDED USE BEARING KITS PE1201 (UFP AXLES) OR PE1250 (NON-UFP AXLES) BEARING PROTECTOR PF1101 AND BRA PF1063

PD1860 ~ 8-LUG HUB WITH RACES 1-1/4" x 1-3/4" GALVANIZED

REPRESENTATION PHOTO MAGIC TILT HUB WITH RACE ~ PA1860 INCLUDES RACES ALREADY INSTALLED NOT INCLUDED USE BEARING KITS PE1256 (UFP), PE1255 (NON-UFP) BEARING PROTECTOR PF1103 AND BRA PF1063

PD1861-L ~ 8-LUG HUB ASSEMBLY 1-1/4"x1-3/4" GREASED (NON-UFP)

REPRESENTATION PHOTO MAGIC TILT PRE-GREASED HUB ASSEMBLY ~ PD1861-L ALL 6K TO 7K AXLES THAT USE A 2.23" ID SEAL AND A 1" CASTLE NUT INCLUDES: 1 x PD1860 GALV HUB W/ LONG STUDS 8 x PD2250 LUG NUT 1/2" 1 x PE1555 BEARING 1-1/4" (14125A) (INSTALLED) 1 x PE1600 BEARING 1-3/4" (25580) (INSTALLED) 1 x PE1855 RACE OUTER (14276) (INSTALLED) 1 x PE1900 RACE INNER (25520) (INSTALLED) 1 x PE2100 SEAL 3.38" OD x 2.23" ID (22333) (INSTALLED) 1 x PE2308 POSI-LUBE DUST CAP 2.717" 1 x PE2311 POSI-LUBE RUBBER PLUG 1 x PH1340 COTTER PIN 1/8" x 1-3/4" PLATED COMES PRE-GREASED AND ASSEMBLED - READY TO USE

PD2250 ~ LUG NUT 1/2"

REPRESENTATION PHOTO MAGIC TILT LUG NUT ~ PD2250 SOLD INDIVIDUALLY

PD2255 ~ LUG NUT ACORN 1/2" STAINLESS STEEL

REPRESENTATION PHOTO MAGIC TILT ACORN LUG NUT~ PD2255 SOLD INDIVIDUALLY

PD2400 ~ LUG BOLT 1/2" x 1-5/8"

REPRESENTATION PHOTO MAGIC TILT LUG BOLT ~ PD2400 SOLD INDIVIDUALLY

PD2450-L ~ 6-LUG HUB ASSEMBLY 1-1/4"x1-3/4" GREASED (NON UFP)

REPRESENTATION PHOTO MAGIC TILT PRE-GREASED HUB ASSEMBLY ~ PD2450-L INCLUDES: 1 x PD1857 GALV HUB W/ LONG STUDS 6 x PD2250 LUG NUT 1/2" 1 x PE1550 BEARING 1-1/4" (15123) (INSTALLED) 1 x PE1600 BEARING 1-3/4" (25580) (INSTALLED) 1 x PE1850 RACE OUTER (15245) (INSTALLED) 1 x PE1900 RACE INNER (25520) (INSTALLED) 1 x PE2100 SEAL 3.38" OD x 2.25" ID (22333) (INSTALLED) 1 x PE2303 POSI-LUBE DUST CAP 2.441" 1 x PE2311 POSI-LUBE RUBBER PLUG 1 x PH2014 COTTER PIN 1/8" x 1-3/4" PLATED COMES PRE-GREASED AND ASSEMBLED - READY TO USE DO YOU NEED? (NOT INCLUDED) PF1101 BEARING PROTECTOR PF1063 BRA

PD2550-L ~ 6-LUG HUB ASSEMBLY 1-1/4"x1-3/4" GREASED (UFP)

REPRESENTATION PHOTO MAGIC TILT PRE-GREASED HUB ASSEMBLY ~ PD2550-L ANY AXLE USING 1-1/4" x 1-3/4" BEARINGS, A SEAL WITH 2.125" ID, PH2130 HARDWARE INCLUDES: 1 x PD1857 GALV HUB W/ 2" LONG STUDS 6 x PD2250 LUG NUT 1/2" 1 x PE1550 BEARING 1-1/4" (151123) (INSTALLED) 1 x PE1600 BEARING 1-3/4" (25580) (INSTALLED) 1 x PE1850 RACE OUTER (15245) (INSTALLED) 1 x PE1900 RACE INNER (25520) (INSTALLED) 1 x PE2101 SEAL 3.38" OD x 2.125" ID (21333) (INSTALLED) 1 x PE2303 POSI-LUBE DUST CAP 2.441" 1 x PE2311 POSI-LUBE RUBBER PLUG 1 x PH2012 COTTER PIN 1/8" x 1-1/4" PLATED COMES PRE-GREASED AND ASSEMBLED - READY TO USE

PD2750 ~ 5-LUG MAINTENANCE-FREE HUB ASSEMBLY KNOTT (KARAVAN 200-00036-SP2)

REPRESENTATION PHOTO MAGIC TILT KNOTT HUB ASSEMBLY ~ PD2750 INCLUDES: 1 X GALVANIZED HUB WITH SEALED BEARINGS 5 X LUG NUTS PLATED 1 X CRUSH SPINDLE NUT 1 X DUST CAP 1 X DUST CAP O-RING PLEASE NOTE NEVER REUSE THE OLD AXLE NUT TIGHTEN THE NEW AXLE NUT TO 207 FT-LBS (280 NM)

PE1100 ~ BEARING KIT 1-1/16" x 1-1/16" (NON-UFP)

REPRESENTATION PHOTO MAGIC TILT BEARING KIT ~ PE1100 USE WITH HUBS PD1360 , PD1670 , PD1660 INCLUDES: 2 x PE1400 BEARING 1-1/16" (44649) 2 x PE1710 RACE 1" OR 1-1/16" (44610) 1 x PE2010 SEAL 1-1/16" (198-125) 1 x PH2014 COTTER PIN 1/8" x 1-3/4" PLATED

PE1101 ~ BEARING KIT 1-1/16 x 1-1/16" (UFP)

REPRESENTATION PHOTO MAGIC TILT BEARING KIT ~ PE1101 USE WITH HUBS PD1670 , PD1660 INCLUDES: 2 x PE1400 BEARING 1-1/16" (44649) 2 x PE1710 RACE 1" OR 1-1/16" (44610) 1 x PE2015 SEAL 1-1/16" UFP (198-138) 1 x PH2012 COTTER PIN 1/8" x 1-1/4" UFP PLATED

PE1150 ~ BEARING KIT 1-1/16" x 1-3/8" (NON-UFP)

REPRESENTATION PHOTO MAGIC TILT BEARING KIT ~ PE1150 USE WITH HUBS PD1750 , PD1760 INCLUDES: 1 x PE1400 BEARING 1-1/16" (44649) 1 x PE1450 BEARING 1-3/8" (68149) 1 x PE1710 RACE 1" OR 1-1/16" (44610) 1 x PE1750 RACE 1-3/8" UCF (68111) 1 x PE2050 SEAL 1-3/8" (255-171) 1 x PH2014 COTTER PIN 1/8" x 1-3/4" PLATED

PE1151 ~ BEARING KIT 1-1/16" x 1-3/8" (UFP)

Magic Tilt Bearing Kit ~ PE1151 Good to know: Use with rotor/hub combinations PG2026-1 , PG2026-2, PG2024 Inner Race (PE1749) Used Exclusively In 5-Lug UFP 1-Piece Disk Brake Rotors Kit Contains: 1 x PE1400 Bearing 1-1/16" (44649) 1 x PE1450 Bearing 1-3/8" (68149) 1 x PE1710 Race 1" Or 1-1/16" (44610) 1 x PE1749 Race 1-3/8" UFP (68110) 1 x PE2055 Seal 1-3/8" UFP (257-168) 1 x PH2012 Cotter Pin 1/8" x 1-1/4" UFP

PE1152 ~ BEARING KIT 1-1/16" x 1-3/8" (UFP)

REPRESENTATION PHOTO MAGIC TILT BEARING KIT ~ PE1152 USE WITH HUBS PD1750 , PD1760 INCLUDES: 1 x PE1400 BEARING 1-1/16" (44649) 1 x PE1450 BEARING 1-3/8" (68149) 1 x PE1710 RACE 1" OR 1-1/16" (44610) 1 x PE1750 RACE 1-3/8" UCF (68111) 1 x PE2055 SEAL 1-3/8" UFP (257-168) 1 x PH2012 COTTER PIN 1/8" x 1-1/4" UFP

PE1200 ~ BEARING KIT 1-1/4" x 1-3/4" SELECT 6-LUG UFP HUBS/ROTORS

REPRESENTATION PHOTO MAGIC TILT BEARING KIT ~ PE1200 APPLICATION: - USE ROTORS PG2027-1 & PG2027-2 PRIOR TO 3/24 WITH 2.328" DUST CAPS - 5,200-POUND UFP AXLES (2"x3" SPRING AND 3-1/2" TORSION) USING SEAL WITH 2.13" INSIDE DIAMETER INCLUDES: 1 x PE1500 1-1/4" BEARING (67048) 1 x PE1600 1-3/4" BEARING (25580) 1 x PE1800 RACE (67010) 1 x PE1900 RACE (25520) 1 x PE2101 SEAL (21333) 1 x PH2012 1/8" x 1-1/4" COTTER PIN

PE1201 ~ BEARING KIT 1-1/4" x 1-3/4" SELECT 6-LUG UFP HUBS/ROTORS

REPRESENTATION PHOTO MAGIC TILT BEARING KIT ~ PE1201 APPLICATION: - USE WITH HUB PD1857 , ROTORS PG2027-1 & PG2027-2 (AFTER 3/24 WITH 2.44" DUST CAPS) ON UFP AXLES - 5,200-POUND UFP AXLES (2"x3" SPRING AND 3-1/2" TORSION) USING 2.13" INSIDE DIAMETER SEALS - SELECT 6-LUG NON-UFP HUBS (D-MAX, KODIAK, DRUM) ON UFP AXLES USING 2.13" INSIDE DIAMETER SEALS INCLUDES: 1 x PE1550 1-1/4" BEARING (15123) 1 x PE1600 1-3/4" BEARING (25580) 1 x PE1850 RACE (15245) 1 x PE1900 RACE (25520) 1 x PE2101 SEAL (21333) 1 x PH2012 1/8" x 1-1/4" COTTER PIN

PE1250 ~ BEARING KIT 1-1/4" x 1-3/4" SELECT 6-LUG NON-UFP HUBS/ROTORS

REPRESENTATION PHOTO MAGIC TILT BEARING KIT ~ PE1250 APPLICATION: - USE WITH HUB PD1857 AND ROTORS PG2027-1 & PG2027-2 (AFTER 3/24 WITH 2.44" DUST CAPS) ON NON-UFP AXLES - 5,200-POUND NON-UFP AXLES (2"x3" SPRING AND 3-1/2" TORSION) USING SEAL WITH 2.23" INSIDE DIAMETER - SELECT 6-LUG NON-UFP HUBS (D-MAX, KODIAK, DRUM) ON NON-UFP AXLES ON AXLES USING A SEAL WITH 2.23" INSIDE DIAMETER INCLUDES: 1 x PE1550 BEARING HD 1-1/4" (15123) 1 x PE1600 BEARING 1-3/4" (25580) 1 x PE1850 RACE HD 1-1/4" (15245) 1 x PE1900 RACE 1-3/4" (25520) 1 x PE2100 SEAL 1-3/4" (22333) 1 x PH2014 COTTER PIN 1/8" x 1-3/4" PLATED

PE1255 ~ BEARING KIT 1-1/4" x 1-3/4" 8-LUG NON-UFP HUBS

REPRESENTATION PHOTO MAGIC TILT BEARING KIT ~ PE1255 USE WITH 8-LUG HUB PD1860 OR ROTORS PG2028-1 AND PG2028-2 ON NON-UFP AXLES INCLUDES: 1 x PE1555 BEARING 1-1/4" (14125A) 1 x PE1600 BEARING 1-3/4" (25580) 1 x PE1855 RACE 1-1/4" 8-LUG (14276) 1 x PE1900 RACE 1-3/4" (25520) 1 x PE2100 SEAL 1-3/4" (22333) 1 x PH2014 COTTER PIN 1/8" x 1-3/4" PLATED

PE1256 ~ BEARING KIT 1-1/4" x 1-3/4" 8-LUG UFP HUBS

REPRESENTATION PHOTO MAGIC TILT BEARING KIT ~ PE1256 USE WITH 8-LUG HUB PD1860 OR ROTORS PG2028-1 AND PG2028-2 ON UFP AXLES INCLUDES: 1 x PE1555 BEARING 1-1/4" (14125A) 1 x PE1600 BEARING 1-3/4" (25580) 1 x PE1855 RACE 1-1/4" 8-LUG (14276) 1 x PE1900 RACE 1-3/4" (25520) 1 x PE2101 UFP SEAL 1-3/4" (21333) 1 x PH2012 x COTTER PIN 1/8" x 1-1/4" (UFP AXLE)

PE1400 ~ BEARING 1-1/16" (44649)

REPRESENTATION PHOTO MAGIC TILT BEARING ~ PE1400 SOLD INDIVIDUALLY

PE1450 ~ BEARING 1-3/8" (68149)

REPRESENTATION PHOTO MAGIC TILT BEARING ~ PE1450 SOLD INDIVIDUALLY

PE1500 ~ BEARING 1-1/4" (67048)

REPRESENTATION PHOTO MAGIC TILT BEARING ~ PE1500 SOLD INDIVIDUALLY

PE1550 ~ BEARING 1-1/4" (15123)

REPRESENTATION PHOTO MAGIC TILT H.D. BEARING ~ PE1550 SOLD INDIVIDUALLY

PE1555 ~ BEARING 1-1/4" (14125A)

REPRESENTATION PHOTO MAGIC TILT BEARING ~ PE1555 SOLD INDIVIDUALLY FOR 8 LUG HUBS

PE1600 ~ BEARING 1-3/4" (25580)

REPRESENTATION PHOTO MAGIC TILT BEARING ~ PE1600 SOLD INDIVIDUALLY

PE1710 ~ RACE 1-1/16" (44610)

REPRESENTATION PHOTO MAGIC TILT RACE ~ PE1710 SOLD INDIVIDUALLY

PE1749 ~ RACE 1-3/8" (68110)

REPRESENTATION PHOTO MAGIC TILT RACE ~ PE1749 SOLD INDIVIDUALLY

PE1750 ~ RACE 1-3/8" (68111)

REPRESENTATION PHOTO MAGIC TILT RACE ~ PE1750 SOLD INDIVIDUALLY

PE1800 ~ RACE 1-1/4" (67010)

REPRESENTATION PHOTO MAGIC TILT RACE ~ PE1800 SOLD INDIVIDUALLY

PE1850 ~ RACE 1-1/4" (15245)

REPRESENTATION PHOTO MAGIC TILT H.D. RACE ~ PE1850 SOLD INDIVIDUALLY FOR 6 LUG HEAVY DUTY NON-UFP HUBS

PE1855 ~ RACE 1-1/4" (14276)

REPRESENTATION PHOTO MAGIC TILT RACE ~ PE1855 SOLD INDIVIDUALLY FOR 8 LUG HUBS

PE1900 ~ RACE 1-3/4" (25520)

REPRESENTATION PHOTO MAGIC TILT RACE ~ PE1900 SOLD INDIVIDUALLY

PE2010 ~ SEAL 1-1/16" SPINDLES NON-UFP, UFP AFTER 2019 (125-198)

REPRESENTATION PHOTO MAGIC TILT GREASE SEAL ~ PE2010 SOLD INDIVIDUALLY APPLICATION: USED ON NON-UFP 1,500 TO 2,500 POUND AXLES WITH 1-1/6" X 1-1/16" SPINDLES USED ON UFP 1,500 TO 2,500 POUND AXLES WITH 1-1/6" X 1-1/16" SPINDLES AFTER 2019 FOR UFP 1,500 TO 2,500 POUND AXLES PRIOR TO 2020, USE SEAL PE2015

PE2015 ~ SEAL 1-1/16" SPINDLES UFP BEFORE 2020 (138-198)

REPRESENTATION PHOTO MAGIC TILT GREASE SEAL ~ PE2015 SOLD INDIVIDUALLY UFP 2", 2.5K AXLES BUILT AFTER MID 2019 USE THE PE2010 SEAL WITH 1.25" INSIDE DIAMETER. MEASURE THE SPINDLE SURFACE FOR THE SEAL BEFORE ORDERING.

PE2050 ~ SEAL 1-3/8" NON-UFP (171-255)

REPRESENTATION PHOTO MAGIC TILT GREASE SEAL ~ PE2050 SOLD INDIVIDUALLY

PE2055 ~ SEAL 1-3/8" UFP (168-257)

REPRESENTATION PHOTO MAGIC TILT GREASE SEAL ~ PE2055 SOLD INDIVIDUALLY

PE2100 ~ SEAL 1-3/4" NON-UFP (22333)

REPRESENTATION PHOTO MAGIC TILT GREASE SEAL ~ PE2100 SOLD INDIVIDUALLY FOR USE ON 4 x 4 TORSION AXLES

PE2101 ~ SEAL 1-3/4" UFP (21333)

REPRESENTATION PHOTO MAGIC TILT GREASE SEAL ~ PE2101 SOLD INDIVIDUALLY

PE2311 ~ CENTER HOLE CAP RUBBER PLUG (POSI-LUBE)

REPRESENTATION PHOTO MAGIC TILT RUBBER PLUG FOR POSI-LUBE DUST CAPS ~ PE2311 SOLD INDIVIDUALLY FITS ALL MODERN POSI-LUBE DUST CAPS OLDER POSI-LUBE DUST CAPS FOR 6 AND 8-LUG HUBS ONCE USED A LARGER PLUG. ALL NEWER DUST CAPS USE THIS UNIVERSAL PLUG.

PG1030 COMPLETE 5-LUG DISC BRAKE KIT ≤7.5K TOP-MOUNT (DEXTER / UFP)

REPRESENTATION PHOTO IF YOU WANT TO ADD BRAKES TO A TRAILER THAT WAS NEVER EQUIPPED WITH THEM, MAKE SURE THERE IS AT LEAST FOUR-INCHES OF CLEARANCE FROM THE BRAKE MOUNTING PLATE ON THE AXLE OR TORSION ARM TO THE OUTSIDE EDGE OF THE FRAME. MAGIC TILT BRAKE KIT ~ PG1030 NEW TOP-MOUNT ACTUATOR REPLACES THE PG1088 INLINE 3-HOLE ACTUATOR ON 3" TALL TONGUES. NEW HOLES WILL NEED TO BE DRILLED IN THE TRAILER TONGUE. COMES WITH PG4856 DOUBLE BANJO FITTING TO CONNECT BRAKE LINES. UFP SPINDLE MOUNTING HARDWARE (NOT INCLUDED): PH2125 IF USING ON NON-UFP AXLES WITH 1" SPINDLE THREADS YOU WILL NEED THE PH2160 CONVERSION KIT (NOT INCLUDED). ADDITIONAL AXLE(S) BRAKE KIT PG1040 (NOT INCLUDED) INCLUDES: 2 x BEARING 1-1/16" (44649) 2 x BEARING 1-3/8" (68149) 2 x SEAL 1-3/8" UFP (257-168) 1 x BEARING PROTECTOR SET SS 1.980 1 x PG1072 ACTUATOR TOP MOUNT DISC DEMCO #7,000 1 x HYDRAULIC BRAKE HOSE W/ SWIVEL 8' 1 x HYDRAULIC BRAKE HOSE W/ SWIVEL 23' 2 x PG2026-1 DISC ROTOR AND HUB 10" 5-LUG UFP 1 x CALIPER FITTING PLUG UFP #32212 1 x PG5003 DISC BRAKE CALIPER ASSEMBLY LH UFP DB3 (DOUBLE BANJO FITTING) 1 x PG5005 DISC BRAKE CALIPER ASSEMBLY RH UFP DB3 (DOUBLE BANJO FITTING) 4 x 7/16" x 1" SHCS BOLT UFP DISC CALIPER 1 x PL2128 5-WAY FULL GROUND WIRE HARNESS 30' 6 x PLASTIC WIRE TIE HD 14-1/2" 2 x 1/4" CHAIN W/ ONE HOOK 40" 3 x CAPSCREW PLATED NC 1/2 x 4-1/2 GR5 3 x NUT LOCK NI 1/2-13 PLATED OWNERS MANUAL

PG1031 COMPLETE 5-LUG DISC BRAKE KIT ≤7.5K IN-LINE (DEXTER / UFP)

REPRESENTATION PHOTO IF YOU WANT TO ADD BRAKES TO A TRAILER THAT WAS NEVER EQUIPPED WITH THEM, MAKE SURE THERE IS AT LEAST FOUR-INCHES OF CLEARANCE FROM THE BRAKE MOUNTING PLATE ON THE AXLE OR TORSION ARM TO THE OUTSIDE EDGE OF THE FRAME. MAGIC TILT BRAKE KIT ~ PG1031 COMES WITH PG4856 DOUBLE BANJO FITTING TO CONNECT BRAKE LINES. IF USING ON NON-UFP AXLES WITH 1" SPINDLE THREADS YOU WILL NEED THE PH2160 CONVERSION KIT (NOT INCLUDED) UFP SPINDLE MOUNTING HARDWARE (NOT INCLUDED): PH2125 ADDITIONAL AXLE(S) BRAKE KIT PG1040 (NOT INCLUDED) INCLUDES: 2 x BEARING 1-1/16" (44649) 2 x BEARING 1-3/8" (68149) 2 x SEAL 1-3/8" UFP (257-168) 1 x BEARING PROTECTOR SET SS 1.980 1 x PG1090 ACTUATOR IN-LINE DISC UFP #7500 1 x HYDRAULIC BRAKE HOSE W/ SWIVEL 8' 1 x HYDRAULIC BRAKE HOSE W/ SWIVEL 23' 2 x PG2026-1 DISC ROTOR AND HUB 10" 5-LUG UFP 1 x CALIPER FITTING PLUG UFP #32212 1 x PG5003 DISC BRAKE CALIPER ASSEMBLY LH UFP DB3 (DOUBLE BANJO FITTING) 1 x PG5005 DISC BRAKE CALIPER ASSEMBLY RH UFP DB3 (DOUBLE BANJO FITTING) 4 x 7/16" x 1" SHCS BOLT UFP DISC CALIPER 1 x PL2128 5-WAY FULL GROUND WIRE HARNESS 30' 6 x PLASTIC WIRE TIE HD 14-1/2" 2 x 1/4" CHAIN W/ ONE HOOK 40" 4 x CAPSCREW PLATED NC 1/2 x 4-1/2 GR5 4 x NUT LOCK NI 1/2-13 PLATED OWNERS MANUAL

PG1033 COMPLETE 5-LUG DISC BRAKE KIT 7.5K TO 16K (DEXTER / UFP)

REPRESENTATION PHOTO IF YOU WANT TO ADD BRAKES TO A TRAILER THAT WAS NEVER EQUIPPED WITH THEM, MAKE SURE THERE IS AT LEAST FOUR-INCHES OF CLEARANCE FROM THE BRAKE MOUNTING PLATE ON THE AXLE OR TORSION ARM TO THE OUTSIDE EDGE OF THE FRAME. MAGIC TILT BRAKE KIT ~ PG1033 COMES WITH PG4856 DOUBLE BANJO FITTING TO CONNECT BRAKE LINES. UFP SPINDLE MOUNTING HARDWARE (NOT INCLUDED): PH2125 IF USING ON NON-UFP AXLES WITH 1" SPINDLE THREADS YOU WILL NEED THE PH2160 CONVERSION KIT (NOT INCLUDED) ADDITIONAL AXLE(S) BRAKE KIT PG1040 (NOT INCLUDED) INCLUDES: 2 x BEARING 1-1/16" (44649) 2 x BEARING 1-3/8" (68149) 2 x SEAL 1-3/8" UFP (257-168) 2 x BEARING PROTECTOR 1.980 STAINLESS 1 x PG1095 ACTUATOR IN-LINE DISC #16,000 1 x HYDRAULIC BRAKE HOSE W/ SWIVEL 8' 1 x HYDRAULIC BRAKE HOSE W/ SWIVEL 23' 2 x PG2026-1 DISC ROTOR AND HUB 10" 5-LUG UFP 1 x CALIPER FITTING PLUG UFP #32212 1 x PG5003 DISC BRAKE CALIPER ASSEMBLY LH UFP (DOUBLE BANJO FITTING) 1 x PG5005 DISC BRAKE CALIPER ASSEMBLY RH UFP (DOUBLE BANJO FITTING) 4 x 7/16" x 1" CALIPER BOLT UFP 1 x PL2128 5-WAY HARNESS 30' 6 x PLASTIC WIRE TIE HD 14-1/2" 2 x 1/4" CHAIN W/ ONE HOOK 40" 4 x CAPSCREW PLATED NC 1/2 x 4-1/2 GR5 4 x NUT LOCK NI 1/2-13 PLATED OWNERS MANUAL

PG1037 COMPLETE 6-LUG DISC BRAKE KIT 10K TO 16K (DEXTER / UFP)

REPRESENTATION PHOTO IF YOU WANT TO ADD BRAKES TO A TRAILER THAT WAS NEVER EQUIPPED WITH THEM, MAKE SURE THERE IS AT LEAST FOUR-INCHES OF CLEARANCE FROM THE BRAKE MOUNTING PLATE ON THE AXLE OR TORSION ARM TO THE OUTSIDE EDGE OF THE FRAME. MAGIC TILT BRAKE KIT ~ PG1037 COMES WITH PG4856 DOUBLE BANJO FITTING TO CONNECT BRAKE LINES. UFP SPINDLE MOUNTING HARDWARE (NOT INCLUDED): PH2130 IF USING ON NON-UFP AXLES WITH 1" SPINDLE THREADS YOU WILL NEED THE PH2165 CONVERSION KIT (NOT INCLUDED) ADDITIONAL AXLE(S) BRAKE KIT PG1042 (NOT INCLUDED) INCLUDES: 2 x BEARING 1-1/4" UFP 2 x BEARING 1-3/4" UFP (25580) 2 x SEAL 1-3/4" UFP (21333) 2 x PF1101 STAINLESS BEARING PROTECTOR 2.441" 1 x PG1095 ACTUATOR DISC UFP #16,000 1 x HYDRAULIC BRAKE HOSE W/ SWIVEL 8' 1 x HYDRAULIC BRAKE HOSE W/ SWIVEL 23' 2 x PG2027-1 DISC ROTOR AND HUB 12" 6-LUG UFP 1 x CALIPER FITTING PLUG UFP #32212 1 x PG5003 DISC BRAKE CALIPER ASSEMBLY LH UFP DB3 (DOUBLE BANJO FITTING) 1 x PG5005 DISC BRAKE CALIPER ASSEMBLY RH UFP DB3 (DOUBLE BANJO FITTING) 4 x DISC CALIPER BOLT 7/16" x 1" SHCS (UFP) 1 x PL2128 5-WAY FULL GROUND WIRE HARNESS 30' 6 x PLASTIC WIRE TIE HD 14-1/2" 2 x CHAIN W/ ONE HOOK 40" 4 x CAPSCREW PLATED NC 1/2" x 4-1/2" GR5 4 x NUT LOCK NI 1/2-13 PLATED OWNERS MANUAL

PG1038 COMPLETE 8-LUG DISC BRAKE KIT 12K TO 20K (DEXTER / UFP)

REPRESENTATION PHOTO IF YOU WANT TO ADD BRAKES TO A TRAILER THAT WAS NEVER EQUIPPED WITH THEM, MAKE SURE THERE IS AT LEAST FOUR-INCHES OF CLEARANCE FROM THE BRAKE MOUNTING PLATE ON THE AXLE OR TORSION ARM TO THE OUTSIDE EDGE OF THE FRAME. MAGIC TILT BRAKE KIT ~ PG1038 TANDEM 8,000-POUND (8-LUG) AXLE TRAILERS COMES WITH PG4856 DOUBLE BANJO FITTING TO CONNECT BRAKE LINES. UFP SPINDLE MOUNTING HARDWARE (NOT INCLUDED): PH2130 IF USING ON NON-UFP AXLES WITH 1" SPINDLE THREADS YOU WILL NEED THE PH2165 CONVERSION KIT (NOT INCLUDED) ADDITIONAL AXLE(S) BRAKE KIT PG1044 (NOT INCLUDED) INCLUDES: 2 x BEARING 1-1/4" UFP 2 x BEARING 1-3/4" UFP (25580) 2 x SEAL 1-3/4" UFP (21333) 1 x BEARING PROTECTOR SET SS 2.717 1 x PG1096 DEMCO ACTUATOR DISC #20000 1 x HYDRAULIC BRAKE HOSE W/ SWIVEL 8' 1 x HYDRAULIC BRAKE HOSE W/ SWIVEL 23' 2 x PG2028-1 DISC ROTOR AND HUB 12" 8-LUG UFP 1 x CALIPER FITTING PLUG UFP #32212 1 x PL2142 5-WAY FULL GROUND WIRE HARNESS 40' 1 x PG5003 DISC BRAKE CALIPER ASSEMBLY LH UFP DB3 (DOUBLE BANJO FITTING) 1 x PG5005 DISC BRAKE CALIPER ASSEMBLY RH UFP DB3 (DOUBLE BANJO FITTING) 4 x DISC CALIPER BOLT 7/16" x 1" SHCS (UFP) 6 x PLASTIC WIRE TIE HD 14-1/2" 2 x CHAIN W/ ONE HOOK 40" 4 x CAPSCREW PLATED NC 1/2" x 4-1/2" GR5 4 x NUT LOCK NI 1/2-13 PLATED OWNERS MANUAL

PG1040 ADDITIONAL AXLE 5-LUG DISC BRAKE KIT (DEXTER / UFP)

REPRESENTATION PHOTO IF YOU WANT TO ADD BRAKES TO A TRAILER THAT WAS NEVER EQUIPPED WITH THEM, MAKE SURE THERE IS AT LEAST FOUR-INCHES OF CLEARANCE FROM THE BRAKE MOUNTING PLATE ON THE AXLE OR TORSION ARM TO THE OUTSIDE EDGE OF THE FRAME. MAGIC TILT BRAKE KIT ~ PG1040 COMES WITH PG4856 DOUBLE BANJO FITTING TO CONNECT BRAKE LINES. UFP SPINDLE MOUNTING HARDWARE (NOT INCLUDED): PH2125 IF USING ON NON-UFP AXLES WITH 1" SPINDLE THREADS YOU WILL NEED THE PH2160 CONVERSION KIT (NOT INCLUDED) INCLUDES: 2 x BEARING 1-1/16" (44649) 2 x BEARING 1-3/8" (68149) 2 x SEAL 1-3/8" UFP (257-168) 1 x BEARING PROTECTOR SET SS 1.980 1 x HYDRAULIC BRAKE HOSE W/ SWIVEL 4' 1 x HYDRAULIC BRAKE HOSE W/ SWIVEL 8' 2 x PG2026-1 DISC ROTER AND HUB 10" 5-LUG UFP 1 x CALIPER FITTING PLUG UFP #32212 1 x PG5003 DISC BRAKE CALIPER ASSEMBLY LH UFP DB3 (DOUBLE BANJO FITTING) 1 x PG5005 DISC BRAKE CALIPER ASSEMBLY RH UFP DB3 (DOUBLE BANJO FITTING) 4 x DISC CALIPER BOLT 7/16" x 1" SHCS (UFP) 6 x PLASTIC WIRE TIE HD 14-1/2" OWNERS MANUAL

PG1042 ADDITIONAL AXLE 6-LUG DISC BRAKE KIT (DEXTER / UFP)

REPRESENTATION PHOTO IF YOU WANT TO ADD BRAKES TO A TRAILER THAT WAS NEVER EQUIPPED WITH THEM, MAKE SURE THERE IS AT LEAST FOUR-INCHES OF CLEARANCE FROM THE BRAKE MOUNTING PLATE ON THE AXLE OR TORSION ARM TO THE OUTSIDE EDGE OF THE FRAME. MAGIC TILT BRAKE KIT ~ PG1042 COMES WITH PG4856 DOUBLE BANJO FITTING TO CONNECT BRAKE LINES. UFP SPINDLE MOUNTING HARDWARE (NOT INCLUDED): PH2130 IF USING ON NON-UFP AXLES WITH 1" SPINDLE THREADS YOU WILL NEED THE PH2165 CONVERSION KIT (NOT INCLUDED) INCLUDES: 2 x BEARING 1-1/4" 2 x BEARING 1-3/4" (25580) 2 x SEAL 1-3/4" UFP (21333) 2 x PF1101 STAINLESS BEARING PROTECTOR 2.441" 1 x HYDRAULIC BRAKE HOSE W/ SWIVEL 4' 1 x HYDRAULIC BRAKE HOSE W/ SWIVEL 8' 2 x PG2027-1 DISC ROTER AND HUB 12" 6-LUG UFP 1 x CALIPER FITTING PLUG UFP #32212 1 x PG5003 DISC BRAKE CALIPER ASSEMBLY LH UFP DB3 (DOUBLE BANJO FITTING) 1 x PG5005 DISC BRAKE CALIPER ASSEMBLY RH UFP DB3 (DOUBLE BANJO FITTING) 4 x DISC CALIPER BOLT 7/16" x 1" SHCS (UFP) 6 x PLASTIC WIRE TIE HD 14-1/2" OWNERS MANUAL

PG1044 ADDITIONAL AXLE 8-LUG DISC BRAKE KIT (DEXTER / UFP)

REPRESENTATION PHOTO IF YOU WANT TO ADD BRAKES TO A TRAILER THAT WAS NEVER EQUIPPED WITH THEM, MAKE SURE THERE IS AT LEAST FOUR-INCHES OF CLEARANCE FROM THE BRAKE MOUNTING PLATE ON THE AXLE OR TORSION ARM TO THE OUTSIDE EDGE OF THE FRAME. MAGIC TILT BRAKE KIT ~ PG1044 COMES WITH PG4856 DOUBLE BANJO FITTING TO CONNECT BRAKE LINES. UFP SPINDLE MOUNTING HARDWARE (NOT INCLUDED): PH2130 IF USING ON NON-UFP AXLES WITH 1" SPINDLE THREADS YOU WILL NEED THE PH2165 CONVERSION KIT (NOT INCLUDED) INCLUDES: 2 x BEARING 1-1/4" 2 x BEARING 1-3/4" (25580) 2 x SEAL 1-3/4" UFP (21333) 2 x BEARING PROTECTOR 2.328 1 x HYDRAULIC BRAKE HOSE W/ SWIVEL 4' 1 x HYDRAULIC BRAKE HOSE W/ SWIVEL 8' 1 x PG2028-1 DISC ROTER AND HUB 12" 8-LUG UFP 2 x CALIPER FITTING PLUG UFP #32212 1 x PG5003 DISC BRAKE CALIPER ASSEMBLY LH UFP DB3 (DOUBLE BANJO FITTING) 1 x PG5005 DISC BRAKE CALIPER ASSEMBLY RH UFP DB3 (DOUBLE BANJO FITTING) 4 x DISC CALIPER BOLT 7/16" x 1" SHCS (UFP) 6 x PLASTIC WIRE TIE HD 14-1/2" OWNERS MANUAL

PG1070 ~ BRAKE ACTUATOR 7.5K DISC DEXTER DX7.5 (K99-175-20)

REPRESENTATION PHOTO MAGIC TILT BRAKE ACTUATOR ~ PG1070 EQUIPPED "DROP-N-GO" COUPLER AND ELECTRIC REVERSE SOLENOID REQUIRES THREE PY0270 1/2" x 4-1/2" PLATED BOLTS AND FASTENERS (NOT INCLUDED) SEE SECOND IMAGE FOR MOUNT HOLE LOCATIONS

PG1072 ~ BRAKE ACTUATOR 7K DISC DEMCO DA70 (8705101)

REPRESENTATION PHOTO MAGIC TILT BRAKE ACTUATOR ~ PG1072 EQUIPPED WITH E-Z LATCH COUPLER AND ELECTRIC REVERSE SOLENOID REQUIRES THREE PY0270 1/2" x 4-1/2" PLATED BOLTS AND FASTENERS (NOT INCLUDED) SEE SECOND IMAGE FOR MOUNT HOLE LOCATIONS REPLACEMENT EMERGENCY CABLE PG4832 OWNERS MANUAL

PG1075 ~ BRAKE LOCKOUT PLUG A60/75 ACTUATORS DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT BRAKE LOCKOUT PLUG ~ PG1075 CAUTION! IF LOCKOUT IS NOT REMOVED DURING NORMAL TOWING THE TRAILER'S BRAKES WILL NOT FUNCTION. CUSTOMER ASSUMES RESPONSIBILITY FOR SAFE USAGE. ALLOWS TRAILERS WITH DEXTER / UFP IN-LINE SURGE DISC BRAKES TO BE BACKED UP WHILE NOT PLUGGED INTO THE VEHICLE. WORKS WITH ALL UFP A60/75 7.5K IN-LINE DISC BRAKE ACTUATORS. FOR A-160 16K ACTUATORS, USE THE PG1090-1 CLIP OWNERS MANUAL

PG1090 ~ BRAKE ACTUATOR 7.5K IN-LINE DISC DEXTER / UFP (A-60, A-75)

REPRESENTATION PHOTO MAGIC TILT BRAKE ACTUATOR ~ PG1090 BALL SIZE" 2" FOR 3x4 AND 3x5 TONGUES ONLY USE PG1091 FOR 3x3 TONGUES REPLACEMENT EMERGENCY CABLE PG4812 BRAKE LOCKOUT PLUG PG1075 HOW TO RELEASE THE EMERGENCY BRAKE CABLE IN TRAILER KNOWLEDGE OWNERS MANUAL

PG1090-1 ~ BRAKE LOCKOUT CLIP A-160 ACTUATOR DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT BRAKE LOCKOUT CLIP ~ PG1090-1 CAUTION! IF LOCKOUT IS NOT REMOVED DURING NORMAL TOWING THE TRAILER'S BRAKES WILL NOT FUNCTION. CUSTOMER ASSUMES RESPONSIBILITY FOR SAFE USAGE. ALLOWS TRAILERS WITH DEXTER / UFP 16K IN-LINE SURGE DISC BRAKES TO BE BACKED UP WHILE NOT PLUGGED INTO THE VEHICLE. DESIGED TO SLIP BETWEEN HOUSING AND COUPLER TO FILL THE TRAVEL SLOT.

PG1094 ~ BRAKE ACTUATOR 16K DISC DEMCO DA16 (8164311)

REPRESENTATION PHOTO MAGIC TILT BRAKE ACTUATOR ~ PG1094 SEE SECOND IMAGE FOR MOUNT HOLE LOCATIONS EQUIPED WITH E-Z LATCH COUPLER AND ELECTRIC REVERSE SOLENOID REQUIRES THREE PY0270 1/2" x 4-1/2" PLATED BOLTS AND FASTENERS (NOT INCLUDED) REPLACEMENT EMERGENCY BRAKE CABLE PG4832 OWNERS MANUAL

PG1095 ~ BRAKE ACTUATOR 16K DISC DEXTER / UFP (A-160)

REPRESENTATION PHOTO MAGIC TILT BRAKE ACTUATOR ~ PG1095 REPLACEMENT EMERGENCY BRAKE CABLE PG4827 BRAKE LOCKOUT CLIP PG1090-1 HOW TO RELEASE THE EMERGENCY BRAKE CABLE IN TRAILER KNOWLEDGE OWNERS MANUAL

PG1096 ~ BRAKE ACTUATOR 20K DISC DEMCO DA20 (8204311)

REPRESENTATION PHOTO MAGIC TILT BRAKE ACTUATOR ~ PG1096 SEE SECOND IMAGE FOR MOUNT HOLE LOCATIONS REPLACEMENT EMERGENCY BRAKE CABLE PG4832 OWNERS MANUAL

PG1097 ~ BRAKE ACTUATOR 20K DISC DEXTER / TIE-DOWN DZ20

REPRESENTATION PHOTO MAGIC TILT BRAKE ACTUATOR ~ PG1097 SEE SECOND IMAGE FOR MOUNT HOLE LOCATIONS REPLACEMENT EMERGENCY BRAKE CABLE PG QUICK-LOCK DROP-N-GO COUPLER. COUPLER IN CLOSED POSITON WILL LOCK ON THE BALL. ALUMINUM MASTER CYLINDER DUAL SHOCK DAMPENERS OWNERS MANUAL

PG1166 ~ BRAKE LINE COUPLER

REPRESENTATION PHOTO MAGIC TILT BRAKE LINE COUPLER ~ PG1166

PG1175 ~ HYDRAULIC BRAKE T-FITTING

REPRESENTATION PHOTO MAGIC TILT HYDRAULIC BRAKE T-FITTING ~ PG1175

PG1326-1

21' BRAKE LINE KIT, DOUBLE BANJO

PG1332 ~ BRAKE LINE KIT TO ADD SECOND AXLE SINGLE-BANJO

REPRESENTATION PHOTO MAGIC TILT BRAKE LINE KIT SECOND AXLE ~ PG1332 INCLUDES: 2 x PG1175 T-FITTINGS 2 x PG1178 1' BRAKE HOSE WITH SWIVEL 1 x PG1182 4' BRAKE HOSE WITH SWIVEL 1 x PG1183 6' 6" BRAKE HOSE WITH SWIVEL 6 x PL2954 14-1/2" PLASTIC WIRE TIES

PG1332-1 ~ BRAKE LINE KIT TO ADD SECOND AXLE DOUBLE-BANJO

REPRESENTATION PHOTO MAGIC TILT BRAKE LINE KIT SECOND AXLE ~ PG1332-1 INCLUDES: 1 x PG4862 BRAKE CALIPER FITTING PLUG 1 x PG1182 4' BRAKE HOSE WITH SWIVEL 1 x PG1186 8' BRAKE HOSE WITH SWIVEL 6 x PL2954 14" PLASTIC WIRE TIES

PG1334 ~ BRAKE LINE KIT TO ADD SECOND & THIRD AXLES SINGLE-BANJO

REPRESENTATION PHOTO MAGIC TILT BRAKE LINE KIT SECOND & THIRD AXLE ~ PG1334 INCLUDES: 4 x PG1175 T-FITTING 3 x PG1178 1' BRAKE HOSE WITH SWIVEL 2 x PG1182 4' BRAKE HOSE WITH SWIVEL 2 x PG1183 6' 6" BRAKE HOSE WITH SWIVEL 12 x PL2954 14" PLASTIC WIRE TIE

PG1334-1 ~ BRAKE LINE KIT TO ADD SECOND & THIRD AXLES DBL-BANJO

REPRESENTATION PHOTO MAGIC TILT BRAKE LINE KIT SECOND & THIRD AXLE ~ PG1334-1 INCLUDES: 1 x PG4862 CALIPER FIITING PLUG 2 x PG1182 4' BRAKE HOSE WITH SWIVEL 2 x PG1186 8' BRAKE HOSE WITH SWIVEL 12 x PL2954 14" PLASTIC WIRE TIE

PG2035 DISC BRAKE ASSEMBLY 8-LUG (DEXTER / UFP)

REPRESENTATION PHOTO IF YOU WANT TO ADD BRAKES TO A TRAILER THAT WAS NEVER EQUIPPED WITH THEM, MAKE SURE THERE IS AT LEAST FOUR-INCHES OF CLEARANCE FROM THE BRAKE MOUNTING PLATE ON THE AXLE OR TORSION ARM TO THE OUTSIDE EDGE OF THE FRAME. MAGIC TILT DISC BRAKE ASSEMBLY ~ PG2035 COMES WITH PG4856 DOUBLE BANJO FITTING TO CONNECT BRAKE LINES. UFP SPINDLE MOUNTING HARDWARE (NOT INCLUDED): PH2130 IF USING ON NON-UFP AXLES WITH 1" SPINDLE THREADS YOU WILL NEED THE PH2165 CONVERSION KIT (NOT INCLUDED) INCLUDES: 16 x LUG NUT 13/16" 2 x BEARING 1-1/4" (67048) 2 x BEARING 1-3/4" (25580) 2 x SEAL 1-3/4" UFP (21333) 1 x BEARING PROTECTOR SET 2.717 2 x PG2028-1 DISC ROTOR AND HUB 12" 8-LUG UFP 1 x PG5003 DISC BRAKE CALIPER ASSEMBLY LH UFP DB3 (DOUBLE BANJO FITTING) 1 x PG5005 DISC BRAKE CALIPER ASSEMBLY RH UFP DB3 (DOUBLE BANJO FITTING) 4 x 7/16" x 1" SHCS BOLT UFP DISC CALIPER 2 x COTTER PIN 1/8" x 1-1/4" UFP OWNERS MANUAL

PG2070-L ~ DISC BRAKE ASSEMBLY 5-LUG GREASED (DEXTER / UFP)

To Add brakes to a trailer that was never equipped with them, Confirm there is At least four-inches of clearance from the brake mounting plate on the axle or torsion arm to the outside edge of the frame. Magic Tilt Brake Assembly ~ PG2070-L Good to know: - Bearings, Races and seals are installed in rotors and greased (Ready-To-Go). - 2 x PE2050 Replacement Seals are in the box (Loose) To accomodate non-UFP spindles if needed. Customer is responsible for determination. - Ships with PG4856 Double banjo fittings to connect brake lines. - Includes UFP hub mounting hardware. If using on non-UFP axles with 1" Spindle Threads you'll also need the PH2160 Conversion Kit (Not Included). Included in this kit: 10 x PD2250 Lug Nut 13/16" 2 x PE1400 Bearing 1-1/16" (44649) - Installed 2 x PE1450 Bearing 1-3/8" (68149) - Installed 2 x PE2055 Seal 2.57" x 1.68" UFP (257-168) - Installed 2 x PF1054 Bearing Protector SS 1.980 2 x PF1060 Bearing Protector Bra 1.980 2 x PG2026-1 Disc Rotor And Hub 10" 5-Lug Plated UFP 1 x PG5003 Disc brake caliper assembly LH UFP db3 (Double Banjo Fitting) 1 x PG5005 Disc brake caliper assembly RH UFP db3 (Double Banjo Fitting) 4 x PG5007 Disc Caliper Bolt 7/16" x 1" Shcs (UFP) 2 x PH2012 Cotter Pin 1/8" x 1-1/4" Plated UFP 1 x PG4862 Caliper Fitting Plug Brass 2 x PH1980 Spindle Nut 13/16" UFP 2 x PH2108 Spindle Nut Retainer UFP 2 x PH2065 Axle D-Washer 3/4" x 3/32" UFP 2 x PE2050 Seal 2.55" x 1.71" Non-UFP - Loose Owners Manual

PG2071-L ~ DISC BRAKE ASSEMBLY 6-LUG GREASED (DEXTER / UFP)

REPRESENTATION PHOTO IF YOU WANT TO ADD BRAKES TO A TRAILER THAT WAS NEVER EQUIPPED WITH THEM, MAKE SURE THERE IS AT LEAST FOUR-INCHES OF CLEARANCE FROM THE BRAKE MOUNTING PLATE ON THE AXLE OR TORSION ARM TO THE OUTSIDE EDGE OF THE FRAME. MAGIC TILT DISC BRAKE ASSEMBLY ~ PG2071-L - BEARINGS, RACES AND SEALS ARE INSTALLED IN ROTORS AND GREASED (READY-TO-GO). - 2 x PE2100 REPLACEMENT SEALS ARE INCLUDED (LOOSE) TO ACCOMODATE NON-UFP SPINDLES IF NEEDED. CUSTOMER IS RESPONSIBLE FOR DETERMINATION. - COMES WITH PG4856 DOUBLE BANJO FITTING TO CONNECT BRAKE LINES. - INCLUDES UFP HUB MOUNTING HARDWARE. IF USING ON NON-UFP AXLES WITH 1" SPINDLE THREADS YOU WILL NEED THE PH2165 CONVERSION KIT (NOT INCLUDED). INCLUDES: 12 x PD2250 LUG NUT 13/16" 2 x PE1550 BEARING 1-1/4" (15123) - INSTALLED 2 x PE1600 BEARING 1-3/4" (25580) - INSTALLED 2 x PE2101 SEAL 3.37" x 2.13" UFP (21333) - INSTALLED 2 x PF1101 BEARING PROTECTOR SS 2.441" 2 x PF1063 BEARING PROTECTOR BRA 2.441" 2 x PG2027-1 DISC ROTOR AND HUB 12" 6-LUG PLATED UFP 1 x PG500 3 DISC BRAKE CALIPER ASSEMBLY LH UFP DB3 (DOUBLE BANJO FITTING) 1 x PG5005 DISC BRAKE CALIPER ASSEMBLY RH UFP DB3 (DOUBLE BANJO FITTING) 4 x PG5007 DISC CALIPER BOLT 7/16" x 1" SHCS (UFP) 2 x PH2012 COTTER PIN 1/8" x 1-1/4" PLATED UFP 1 x PG4862 CALIPER FITTING PLUG BRASS 2 x PH1980 SPINDLE NUT 13/16" UFP 2 x PH2108 SPINDLE NUT RETAINER UFP 2 x PH2066 AXLE D-WASHER 3/4" x 3/16" UFP 2 x PE2100 SEAL 3.37" x 2.23" NON-UFP - LOOSE OWNERS MANUAL

PG2100 ~ BRAKE FLANGE WELD-ON 4-BOLT

REPRESENTATION PHOTO MAGIC TILT BRAKE FLANGE ~ PG2100 FOR USE ON 3500 POUND SPRING AXLES

PG2150 ~ BRAKE FLANGE WELD-ON 5-BOLT

REPRESENTATION PHOTO MAGIC TILT BRAKE FLANGE ~ PG2150

PG2252 ~ REVERSE LOCKOUT SOLENOID

REPRESENTATION PHOTO MAGIC TILT REVERSE LOCKOUT SOLENOID ~ PG2252 CAN BE USED WHEN CONVERTING A DRUM ACTUATOR FOR DISC BRAKE USE. MAY SHIP FROM STORE LOCATION

PG3052 ~COUPLER LATCH REPAIR KIT DEXTER / TITAN 4358400

REPRESENTATION PHOTO MAGIC TILT LEVER LOCK REPAIR KIT ~ PG3052 COUPLER REPAIR KIT FOR DEXTER / TITAN MODEL 60 COUPLERS AND BRAKE ACTUATORS

PG3056 ~ BREAKAWAY LEVER ASSEMBLY DEXTER / TITAN MODEL 60 (068-188-00)

REPRESENTATION PHOTO MAGIC TILT DISC BRAKE BREAKAWAY LEVER ASSEMBLY : OLD PART NUMBER 43595 INCLUDES: BREAKAWAY CABLE AND HOOK MAY COME WTH S-HOOK

PG3104 ~ MASTER CYLINDER CAP DEXTER / TITAN 068-147-00

REPRESENTATION PHOTO MAGIC TILT MASTER CYLINDER CAP ~ PG3104 : OLD PART NUMBER 4480701

PG3208 ~ MASTER CYLINDER FILLER CAP DEXTER / TITAN 068-250-01

REPRESENTATION PHOTO MAGIC TILT MASTER CYLINDER FILLER CAP ~ PG3208 : OLD PART NUMBER 4830601 SOLD INDIVIDUALLY

PG3216 ~ BREAKAWAY LEVER DEXTER / TITAN 068-017-00

REPRESENTATION PHOTO MAGIC TILT DISC BRAKE BREAKAWAY LEVER ASSEMBLY ~ PG3216 : REPLACES OLD PART NUMBER 1054100 CABLE SOLD SEPERATELY

PG3229 ~ TEKONSHA ELECTRIC BRAKE CONTROLLER

REPRESENTATION PHOTO MAGIC TILT ELECTRIC BRAKE CONTOLLER ~ PG3229

PG4808 ~ COUPLER LATCH REPAIR KIT A-60, A-75 DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT LATCH REPLACEMENT KIT ~ PG4808

PG4809 ~ ACTUATOR DAMPER DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT ACTUATOR DAMPER ~ PG4809

PG4812 ~ BREAKAWAY CABLE A-60, A-75 DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT BREAKAWAY CABLE ~ PG4812 SEE REPLACEMENT VIDEO IN OUR TRAILER KNOWLEDGE SECTION

PG4814-1 ~ MASTER CYLINDER NEW STYLE DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT MASTER CYLINDER ~ PG4814-1 THIS IS THE "NEW-STYLE" REPLACEMENT MASTER CYLINDER FOR ALMOST EVERY SURGE ACTUATOR MADE BY UFP (NOW DEXTER). IT REPLACES THE OLD-STYLE MASTER CYLINDER THAT HAD THE REVERSE SOLENOID THREADED IN THE BACK OF THE HOUSING. THIS STYLE INCLUDES THE NEW PG4815-1 DROP-IN SOLENOID.

PG4815-1 ~ SOLENOID ASSEMBLY DEXTER / UFP (054-140-22)

REPRESENTATION PHOTO MAGIC TILT SOLENOID ASSEMBLY ~ PG4815-1 THIS IS THE NEW-STYLE SOLENOID WITH TWO WIRES AND WITHOUT A BYPASS HOSE AND WILL ONLY WORK ON THE NEW-STYLE UFP MASTER CYLINDER PG4814-1 . IT WILL NOT WORK ON THE OLD-STYLE UFP MASTER CYLINDERS THAT REQUIRE A BYPASS HOSE.

PG4817 ~ ACTUATOR COVER PLATE DEXTER / UFP A-60/75

REPRESENTATION PHOTO MAGIC TILT ACTUATOR COVER PLATE ~ PG4817

PG4819 ~ MASTER CYLINDER PLUG DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT RESERVOIR PLUG ~ PG4819 SOLD INDIVIDUALLY

PG4820 ~ LATCH PIN KIT A-60, A-75, A-160 DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT LATCH PIN KIT ~ PG4820 INCLUDES REPLACEMENT SNAP RING FOR 7.5K UFP ACTUATORS ATTACHES TO 16K ACTUATORS WITH POP RIVET (NOT INCLUDED)

PG4823 ~ LATCH PIN KIT 1-1/4" DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT HITCH PIN KIT ~ PG4823 INCLUDES : PIN, CLIP, AND CABLE WILL NOT WORK ON NEWER IN-LINE STYLE ACTUATORS

PG4824 ~ ROLLER PIN / PAD SERVICE KIT A160 ACTUATOR DEXTER / UFP K71-772-00

REPRESENTATION PHOTO MAGIC TILT ACTUATOR REPAIR KIT ~ PG4824 PROVIDES REPLACEMENT WEAR ITEMS FOR SMOOTH OPERATION. INCLUDES: 2 X RUB PADS 7-5/8" x 3-3/8" x 1" 2 X BUSHINGS 15/16" OD x 1-1/4" 4 X ROLLER PINS 3/4" x 4-5/16" 8 X SNAP RINGS 3/4"

PG4825 ~ ACTUATOR COVER PLATE DEXTER / UFP A-160

REPRESENTATION PHOTO MAGIC TILT ACTUATOR COVER PLATE ~ PG4825 SOLD INDIVIDUALLY

PG4826 ~ COUPLER LATCH REPAIR KIT A-160 DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT LATCH REPLACEMENT KIT ~ PG4826

PG4827 ~ BREAKAWAY CABLE TOP MOUNT DEXTER/UFP A-160

REPRESENTATION PHOTO MAGIC TILT BREAWAY CABLE ~ PG4827

PG4832 ~ BREAKAWAY CABLE TOP MOUNT DEMCO

REPRESENTATION PHOTO MAGIC TILT BREAWAY CABLE ~ PG4832

PG4849 ~ DISC BRAKE PAD DEXTER / UFP 1-PAD ONLY

REPRESENTATION PHOTO MAGIC TILT BRAKE PAD ~ PG4849 SOLD INDIVIDUALLY CONTAINS ONLY ONE BRAKE PAD. ORDER TWO TO OUTFIT ONE CALIPER. CAN ONLY BE USED ON DEXTER/UFP BRAKE SYSTEMS

PG4855 ~ SINGLE BANJO FITTING

REPRESENTATION PHOTO MAGIC TILT SINGLE BANJO FITTING ~ PG4855 REQUIRES TWO COPPER WASHERS (PG4858) AND ONE BANJO BOLT (PG4857)

PG4856 ~ DOUBLE BANJO FITTING

REPRESENTATION PHOTO MAGIC TILT DOUBLE BANJO FITTING ~ PG4856 REQUIRES TWO COPPER WASHERS (PG4858) AND ONE BANJO BOLT (PG4857)

PG4857 ~ BANJO BOLT

REPRESENTATION PHOTO MAGIC TILT BANJO BOLT ~ PG4857 USE WITH: SINGLE BANJO FITTING PG4855 OR DOUBLE BANJO FITTING PG4856 COPPER WASHERS PG4858

PG4858 ~ COPPER WASHER BANJO FITTING (UFP)

REPRESENTATION PHOTO MAGIC TILT BANJO WASHER ~ PG4858 USE WITH: SINGLE BANJO FITTING PG4855 OR DOUBLE BANJO FITTING PG4856 BANJO BOLT PG4857

PG4859 ~ CALIPER BLEEDER SCREW (DEXTER / UFP)

REPRESENTATION PHOTO MAGIC TILT BLEEDER SCREW ~ PG4859

PG4862 ~ CALIPER FITTING PLUG (UFP)

REPRESENTATION PHOTO MAGIC TILT FITTING PLUG ~ PG4862 SOLD INDIVIDUALLY USE TO PLUG UNNEEDED PORTS ON DOUBLE BANJO FITTINGS

PG5007 ~ DISC CALIPER BOLT 7/16" x 1" DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT CALIPER BOLT ~ PG5007 USES 3/8" ALLEN WRENCH

PG5034 ~ DISC BRAKE CALIPER 3.5

6K (DEEMAXX CALP-3-6K-MAXX)

REPRESENTATION PHOTO MAGIC TILT DISC BRAKE CALIPER ~ PG5034 APPLICATION: 3.5K 10" 5-LUG AND 6K 12" 6-LUG DEEMAXX BRAKING SYSTEMS WITH SLIP-OVER ROTORS OR ONE-PIECE HUB/ROTORS WITH CORRECT MOUNT PLATE (NOT INCLUDED) INCLUDES BRAKE PADS NOT COMPATIBLE OTHER BRAKE BRANDS

PG5058 ~ DISC BRAKE ADAPTER PLATE (DEXTER / UFP)

REPRESENTATION PHOTO MAGIC TILT ADAPTER PLATE ~ PG5058 ADAPTS 5-HOLE ROUND BRAKE PLATES TO 4-HOLE SQUARE ON 5.2K TO 7K AXLES. ALOWS DIRECT MOUNTING OF DEXTER / UFP CALIPERS ON 12" ROTORS. REQUIRES THE FOLLOWING HARDWARE (NOT INCLUDED) 5 X PY0215 3/8" x 1-1/14" BOLT 5 X PY1305 3/8" NYLOCK NUT

PH1300 ~ SPRING AXLE 2 x 2 (CUSTOM)

3.5K DEXTER / UFP

Magic Tilt Heavy duty custom spring axle no Hubs ~ PH1300 Contact us at 877-795-1965 for a shipping quote (V - Add PH0999, $27.95) V - Above Springs Only Good to know: Includes 4-Hole Square Brake Plate Axle will come with an "X" Drawn On The Tube. The x should face the back of the trailer when installed.

PH1305 ~ ZERC FITTING POSI-LUBE (DEXTER / UFP)

REPRESENTATION PHOTO MAGIC TILT ZERC FITTING ~ PH1305 SOLD INDIVIDUALLY FOR SPINDLE END ON POSI-LUBE SPINDLES

PH1305-1 ~ POSI-LUBE SPINDLE AXLE UPGRADE

REPRESENTATION PHOTO MAGIC TILT POSI-LUBE SPINDLE UPGRADE ~ PH1305-1 AXLES DO NOT COME STANDARD WITH THE POSI-LUBE FEATURE. THIS PART NUMBER UPGRADES THE STANDARD SPINDLES ON ONE AXLE TO POSI-LUBE. POSI-LUBE SPINDLES HAVE A GREASE FITTING ON THE END ALLOWING GREASE TO BE PUMPED TO THE BACK OF THE SPINDLE. WHILE MANY OLDER MAGIC TILT AXLES WERE BUILT WITH THIS FEATURE, IT IS NOW RECOMENDED TO USE BEARING PROTECTORS ON THE HUBS.

PH1305-2 ~ POSI-LUBE SPINDLE UPGRADE

REPRESENTATION PHOTO MAGIC TILT POSI-LUBE SPINDLE UPGRADE ~ PH1305-2 AXLES DO NOT COME STANDARD WITH THE POSI-LUBE FEATURE. THIS PART NUMBER UPGRADES THE STANDARD SPINDLES ON ONE AXLE TO POSI-LUBE. POSI-LUBE SPINDLES HAVE A GREASE FITTING ON THE END ALLOWING GREASE TO BE PUMPED TO THE BACK OF THE SPINDLE. WHILE MANY OLDER MAGIC TILT AXLES WERE BUILT WITH THIS FEATURE, IT IS NOW RECOMENDED TO USE BEARING PROTECTORS ON THE HUBS.

PH1320 ~ REMOVABLE SPINDLE 3750# TORSION DEXTER / TIE DOWN

REPRESENTATION PHOTO MAGIC TILT TORSION AXLE SPINDLE ~ PH1320 INCLUDES: 1" NUT, WASHER AND COTTER PIN FOR MOUNTING SPINDLE TO TORSION ARM DOES NOT INCLUDE FOLLOWING SPINDLE-TO-HUB HARDWARE: PH2060 SPINDLE WASHER PH2000 SPINDLE NUT PH2014 COTTER PIN USE WITH FOLLOWING HUBS (NOT INCLUDED): PD1702-L IDLER HUB KIT PG2026-1 DISC ROTOR

PH1325 ~ TORSION ARM 3" AXLES NON-POSI LUBE DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT TORSION ARM & SPINDLE ~ PH1325 CAUTION – MAKE SURE YOU PROPERLY IDENTIFY YOUR BRAND OF TORSION ARM AS UFP (SEE SECOND IMAGE) INCLUDES 4-HOLE BRAKE PLATE AND TORSION ARM MOUNTING BOLT REQUIRES THE FOLLOWING HUB MOUNTING HARDWARE KIT PH2125 (NOT INCLUDED)

PH1327 ~ TORSION ARM 3" AXLES W/ POSI-LUBE DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT TORSION ARM & SPINDLE ~ PH1327 CAUTION – MAKE SURE YOU PROPERLY IDENTIFY YOUR BRAND OF TORSION ARM AS UFP (SEE SECOND IMAGE) INCLUDES 4-HOLE BRAKE PLATE AND TORSION ARM MOUNTING BOLT REQUIRES THE FOLLOWING HUB MOUNTING HARDWARE KIT PH2125 (NOT INCLUDED)

PH1330 ~ TORSION ARM 3-1/2" AXLES SQUARE PLATE DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT TORSION ARM & SPINDLE ~ PH1330 INCLUDES 4-HOLE BRAKE PLATE AND TORSION ARM-TO-AXLE MOUNTING HARDWARE

PH1349 ~ TORSION AXLE WELD-ON BRACKET 3" DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT WELD-ON BRACKET

PH1374 ~ TORSION AXLE 2-1/2" "V" 93T 79FW 3.8K NO HUBS DEXTER / TIE DOWN

REPRESENTATION PHOTO MAGIC TILT TORSION AXLE WITHOUT HUBS TIE DOWN ~ PH1374 ( PLEASE CALL 941-358-1117 FOR SHIPPING QUOTE) FRAME WIDTH: 80-1/2" (INSIDE MOUNT) 79" (OUTSIDE MOUNT) TRACK (HUB-FACE TO HUB-FACE): 93" INCLUDES 4-HOLE SQUARE BRAKE PLATES ADD-ONS (NOT INCLUDED) FRAME MOUNTING HARDWARE: ALUMINUM TUBE FRAME BOTTOM CHANNEL PY9145-T I-BEAM ALUMINUM FRAME PY9145 GALVANIZED TUBE FRAME U-BOLTS

PH1450 ~ CUSTOM SPRING AXLE 2x3 UP TO 89T 5-6K DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT HEAVY DUTY CUSTOM SPRING AXLE NO HUBS ~ PH1450 PLEASE CALL 941-358-1117 FOR SHIPPING QUOTE (V - ADD PH0999, $27.95) V - ABOVE SPRINGS ONLY INCLUDES 4-HOLE SQUARE BRAKE PLATES STANDARD. CAN BE ORDERED WITH 5-HOLE ROUND BRAKE PLATES AXLE WILL COME WITH AN "X" DRAWN ON THE TUBE. THE X SHOULD FACE THE BACK OF THE TRAILER WHEN INSTALLED.

PH1454 ~ TORSION AXLE 2-1/2" "V" 66-3/4T 56FW 2.1K W/HUBS KNOTT (KARAVAN 200-00049)

REPRESENTATION PHOTO MAGIC TILT TORSION AXLE W/ HUBS KNOTT ~ PH1454 TRACK (HUB FACE TO HUB FACE): 66-3/4" LUG NUTS NOT INCLUDED MOUNTING HARDWARE (NOT INCLUDED) ALUMINUM TUBE FRAME BOTTOM CHANNEL PY9145-T ALUMINUM I-BEAM FRAME PY9145 GALVANIZED TUBE FRAME U-BOLTS 74x12x10

PH1462 ~ TORSION AXLE 2-1/2" STRAIGHT 92T 81-1/2FW 3K W/ HUBS KNOTT

REPRESENTATION PHOTO MAGIC TILT TORSION AXLE WITH HUBS KNOTT ~ PH1462 ( PLEASE CALL 941-358-1117 FOR SHIPPING QUOTE) SPECIAL ORDER - PLEASE ALLOW EXTRA TIME FRAME WIDTH: 83" (INSIDE MOUNT) 81-1/2" (OUTSIDE MOUNT) TRACK (HUB FACE TO HUB FACE): 92" LUG NUTS NOT INCLUDED MOUNTING HARDWARE (NOT INCLUDED) ALUMINUM TUBE FRAME BOTTOM CHANNEL PY9145-T ALUMINUM I-BEAM FRAME PY9145 GALVANIZED TUBE FRAME U-BOLTS

PH1465 ~ TORSION AXLE 2-1/2" STRAIGHT 88-3/4T 77FW 3.8K W/ HUBS KNOTT (KARAVAN 200-200059-GL)

REPRESENTATION PHOTO MAGIC TILT TORSION AXLE WITH HUBS KNOTT ~ PH1465 ( PLEASE CALL 941-358-1117 FOR SHIPPING QUOTE) TRACK (HUB FACE TO HUB FACE): 88-3/4" LUG NUTS NOT INCLUDED MOUNTING HARDWARE (NOT INCLUDED) ALUMINUM TUBE FRAME BOTTOM CHANNEL PY9145-T I-BEAM ALUMINUM FRAME PY9145 GALVANIZED TUBE FRAME U-BOLTS

PH150-40 ~ TORSION ARM FOR 3" AXLES FA-35 (NON-UFP)

REPRESENTATION PHOTO MAGIC TILT TORSION ARM & SPINDLE ~ PH150-40 CAUTION – MAKE SURE YOU PROPERLY IDENTIFY YOUR BRAND OF TORSION ARM AS FA-35 (SEE SECOND IMAGE) INCLUDES 4-HOLE BRAKE PLATE, TORSION ARM MOUNTING BOLT, POSI-LUBE FITTING. THIS ARM WILL NOT WORK ON STANDARD DEXTER / UFP AXLES.

PH150-72 ~ TORSION AXLE WELD-ON BRACKET 4" UCF

REPRESENTATION PHOTO OUT OF STOCK MAGIC TILT MOUNTING BRACKET ~ PH150-72 TO ORDER, SELECT LEFT OR RIGHT FROM DROP-DOWN STANDING BEHIND TRAILER LOOKING FORWARD

PH1500 ~ CUSTOM SPRING AXLE 2x3 UP TO 88T 3.5K DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT HEAVY DUTY CUSTOM SPRING AXLE NO HUBS ~ PH1500 PLEASE CALL 941-358-1117 FOR SHIPPING QUOTE (V - ADD PH0999, $27.95) V - ABOVE SPRINGS ONLY INCLUDES 4-HOLE SQUARE BRAKE PLATES. AXLE WILL COME WITH AN "X" DRAWN ON THE TUBE. THE X SHOULD FACE THE BACK OF THE TRAILER WHEN INSTALLED.

PH1600 ~ TORSION AXLE 3x3 (CUSTOM) 73-95T 3.5K NO HUBS (NON UFP)

REPRESENTATION PHOTO MAGIC TILT CUSTOM 3x3 TORSION AXLE NO HUBS ~ PH1600 PLEASE CALL 941-358-1117 FOR SHIPPING QUOTE SPECIAL ORDER - PLEASE ALLOW ADDITIONAL TIME FOR SHIPPING V + $22.95 (PH0999) FRAME WIDTH MUST BE 63" OR GREATER INCLUDES 4-HOLE SQUARE BRAKE PLATES. MOUNTING HARDWARE (NOT INCLUDED) ALUMINUM TUBE FRAME BOTTOM CHANNEL PY9145-T I-BEAM ALUMINUM FRAME PY9145

PH1605 ~ CUSTOM TORSION AXLE 3-1/2x3-1/2 73-95T 5-6K DEXTER/UFP

REPRESENTATION PHOTO MAGIC TILT CUSTOM 3-1/2x3-1/2 TORSION AXLE NO HUBS ~ PH1605 (PLEASE CALL 941-358-1117 FOR SHIPPING QUOTE) SPECIAL ORDER - PLEASE ALLOW ADDITIONAL TIME FOR SHIPPING V + $22.95 (PH0999) INCLUDES 4-HOLE SQUARE BRAKE PLATES STANDARD. CAN BE ORDERED WITH 5-HOLE ROUND BRAKE PLATES. MOUNTING HARDWARE TO FRAME (NOT INCLUDED) ALUMINUM TUBE FRAME BOTTOM CHANNEL PY9145-T I-BEAM ALUMINUM FRAME PY9145

PH1752 ~ SPINDLE 1-1/16" x 1-1/16" 1.5K UCF

REPRESENTATION PHOTO MAGIC TILT SPINDLE ~ PH1752

PH1800 ~ SPINDLE 1-1/16" x 1-1/16" 2.5K DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT SPINDLE ~ PH1800

PH1849 ~ SPINDLE 1-1/16" x 1-3/8" 3.5K DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT SPINDLE ~ PH1849

PH1903 ~ SPINDLE 1-1/4" x 1-3/4" 5-6K DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT SPINDLE ~ PH1903 6,000 POUNDS (8-LUG)

PH1906 ~ SPINDLE 1-1/4" x 1-3/4" 5-6K DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT SPINDLE ~ PH1906 6,000 POUNDS (8-LUG)

PH1980 ~ SPINDLE NUT 13/16"

REPRESENTATION PHOTO MAGIC TILT SPINDLE NUT ~ PH1980 SOLD INDIVIDUALLY

PH2000 ~ SPINDLE NUT 1"

REPRESENTATION PHOTO MAGIC TILT SPINDLE NUT ~ PH2000 SOLD INDIVIDUALLY

PH2050 ~ AXLE WASHER 3/4" F436

REPRESENTATION PHOTO MAGIC TILT AXLE WASHER ~ PH2050 SOLD INDIVIDUALLY

PH2060 ~ AXLE WASHER 1"

REPRESENTATION PHOTO MAGIC TILT AXLE WASHER ~ PH2060 SOLD INDIVIDUALLY

PH2065 ~ AXLE D WASHER 3/4" x 13/16" x .137" (DEXTER / UFP)

REPRESENTATION PHOTO MAGIC TILT AXLE WASHER ~ PH2065 SOLD INDIVIDUALLY THINNER. USED ON 2000 TO 3500 LB. UFP AXLES

PH2066 ~ AXLE D WASHER 3/4" x 13/16" x .184" (DEXTER / UPF)

REPRESENTATION PHOTO MAGIC TILT AXLE WASHER ~ PH2066 SOLD INDIVIDUALLY THICKER. USED ON 5000 LB. AND GREATER UFP AXLES

PH2070 ~ AXLE D WASHER 1"

REPRESENTATION PHOTO MAGIC TILT AXLE WASHER ~ PH2070 SOLD INDIVIDUALLY

PH2105 ~ TANG WASHER 1"

REPRESENTATION PHOTO MAGIC TILT TANG WASHER ~ PH2105 SOLD INDIVIDUALLY

PH2108 ~ SPINDLE NUT RETAINER

REPRESENTATION PHOTO MAGIC TILT SPINDLE NUT RETAINER ~ PH2108 SOLD INDIVIDUALLY

PH2145 ~ HUB CONVERSION KIT 1-1/16" SPINDLES (NON-UFP HUBS to UFP AXLES)

REPRESENTATION PHOTO MAGIC TILT HUB CONVERSION KIT ~ PH2145 INCLUDES: ENOUGH HARDWARE TO CONVERT TWO HUBS TO 1-1/16" UFP-STYLE SPINDLES 2 x PE2010 SEAL 1-1/16" UFP (125-198) 2 x PH1980 SPINDLE NUT 13/16" UFP 2 x PH2012 COTTER PIN 1/8" x 1-1/4" UFP 2 x PH2065 3/4" AXLE D WASHER 3/32" UFP 2 x PH2108 SPINDLE NUT RETAINER UFP

PH2150 ~ HUB CONVERSION KIT 1-3/8" SPINDLES (NON-UFP HUBS to UFP AXLES)

REPRESENTATION PHOTO MAGIC TILT HUB CONVERSION KIT ~ PH2150 INCLUDES: ENOUGH HARDWARE TO CONVERT TWO HUBS TO 3.5K UFP-STYLE SPINDLES 2 x PE2055 SEAL 1-3/8" UFP (168-257) 2 x PH1980 SPINDLE NUT 13/16" UFP 2 x PH2012 COTTER PIN 1/8" x 1-1/4" UFP 2 x PH2065 3/4" AXLE D WASHER 3/32" UFP 2 x PH2108 SPINDLE NUT RETAINER UFP

PH2155 ~ HUB CONVERSION KIT 1-3/4" SPINDLES (NON-UFP HUBS to UFP AXLES)

REPRESENTATION PHOTO MAGIC TILT HUB CONVERSION KIT ~ PH2155 INCLUDES: ENOUGH HARDWARE TO CONVERT TWO HUBS TO ALL UFP-STYLE 1-1/4" x 1-3/4" SPINDLES 2 x PE2101 SEAL 1-3/4" UFP (21333) 2 x PH1980 SPINDLE NUT 13/16" UFP 2 x PH2012 COTTER PIN 1/8" x 1-1/4" UFP 2 x PH2066 3/4" AXLE D WASHER 3/16" UFP 2 x PH2108 SPINDLE NUT RETAINER UFP

PH2160 ~ CONVERSION KIT (5-LUG 3.5K UFP ROTORS & HUBS to NON-UFP AXLES)

REPRESENTATION PHOTO MAGIC TILT HUB/ROTOR CONVERSION KIT ~ PH2160 INCLUDES: ENOUGH HARDWARE TO CONVERT TWO 5-LUG ROTORS OR HUBS TO EITHER 1" D OR 1" ROUND SPINDLES 2 x PE2050 SEAL 1-3/8" NON-UFP (171-255) 2 x PH2014 COTTER PIN 1/8" x 1-3/4" (1" SPINDLE THREADS) 2 x PH2000 AXLE NUT 1" CASTLE NON-UFP 2 x PH2105 TANG WASHER (1" D-SPINDLES) 2 x PH2070 SPINDLE WASHER (1" D-SPINDLES) 2 x PH2060 SPINDLE WASHER (1" ROUND SPINDLES)

PH2165 ~ CONVERSION KIT (6 & 8-LUG UFP ROTORS & HUBS TO NON-UFP AXLES)

REPRESENTATION PHOTO MAGIC TILT HUB/ROTOR CONVERSION KIT ~ PH2165 INCLUDES: ENOUGH HARDWARE TO CONVERT TWO 6 OR 8-LUG ROTORS OR HUBS TO EITHER 1" D OR 1" ROUND SPINDLES 2 x PE2100 SEAL 1-3/4" NON-UFP (22333) 2 x PH2014 COTTER PIN 1/8" x 1-3/4" (1" SPINDLE THREADS) 2 x PH2000 AXLE NUT 1" CASTLE NON-UFP 2 x PH2105 TANG WASHER (1" D-SPINDLES) 2 x PH2070 SPINDLE WASHER (1" D-SPINDLES) 2 x PH2060 SPINDLE WASHER (1" ROUND SPINDLES)

PH6025

AX[V]2X2X86TR 68SC HD W/FLG [NO HUBS]

PI0100 ~ FENDER BRACKET GALVANIZED

MAGIC TILT FENDER BRACKETS ~ PH0100 SOLD INDIVIDUALLY

PI0602 ~ 1-AXLE FENDER PLASTIC 7" x 5-1/2" x 20-1/4" (KARAVAN 206-00039)

REPRESENTATION PHOTO MAGIC TILT SINGLE AXLE FENDER ~ PI0602 PRIMARILY USED ON KARAVAN TRAILERS WITH KNOTT TORSION AXES AND 8" AND 10" TIRES (MAY WORK IN OTHER APPLICATIONS) COMES WITH PRE-DRILLED HOLES FOR 100-07133-GL FENDER BRACKET ON KNOTT TORSION AXLES MOUNTING HARDWARE NOT INCLUDED

PI0605 ~ 1-AXLE FENDER GALVANIZED PONTOON 9-1/2" x 8" x 22" (KARAVAN 206-00012)

REPRESENTATION PHOTO MAGIC TILT FENDER ~ PI0605 PRIMARILY USED ON KARAVAN PONTOON TRAILERS WITH 20.5/65-10 TIRES CAN USE EITHER THE PV9000-1 (OLD STYLE) OR PV9000 (NEW STYLE) NON-SKID FENDER DECALS (NOT INCLUDED) MOUNTING HARDWARE NOT INCLUDED

PI0606 ~ 1-AXLE FENDER GALVANIZED PONTOON 7" x 8-1/4" x 26" (KARAVAN 206-00109)

REPRESENTATION PHOTO MAGIC TILT PONTOON FENDER ~ PI0606 CAN BE USED IN PAIRS FOR A TANDEM-AXLE APPLICATION CAN USE THE PV9000-1 NON-SKID FENDER DECAL (NOT INCLUDED) FENDER BRACKETS (NOT INCLUDED) MOUNTING HARDWARE NOT INCLUDED

PI0610 ~ 1-AXLE FENDER PLASTIC 9" x 9-1/2" x 37" (KARAVAN 206-00056)

REPRESENTATION PHOTO MAGIC TILT SINGLE AXLE FENDER ~ PI0610 SPECIAL ORDER - PLEASE ALLOW ADDITIONAL TIME INCLUDES: FRONT, REAR, AND TOP STEPS MOUNTING SLOTS FOR EASY INSTALLATION BUILT-IN FENDER SKIRT NO PUNCHOUTS FOR LIGHTS MOUNTING HARDWARE NOT INCLUDED

PI1002 ~ 1-AXLE FENDER GALVANIZED 7" x 6" x 21"

REPRESENTATION PHOTO MAGIC TILT FENDER ~ PI1002 3/8" SIDE MOUNT HOLES ON 12" CENTERS CAN BE MOUNTED WITH TWO PI0100 BRACKETS MOST COMMONLY USED WITH 8" TIRES WHILE BOLTED TO FRAME MOUNTING HARDWARE NOT INCLUDED

PI2100 ~ STEP PAD END CAP RIGHT/FRONT OR LEFT/REAR "L"

REPRESENTATION PHOTO THE CORRECT STEP PAD ORIENTATION IS WITH THE FLAT EDGE TO THE FENDER AND THE SMOOTH SLANTED EDGE AWAY FROM THE FENDER. THIS IS HOW YOUR BOOT WILL BE ORIENTED BASED ON THE LOCATION STATED. IF YOU WANT YOUR BOOT MOUNTED THE OPPOSITE WAY, PLEASE SELECT THE OPPOSITE SIDE. MAGIC TILT STEP PAD BOOT ~ PI2100 SOLD INDIVIDUALLY ATTACHING SCREW OR RIVET NOT INCLUDED HAS "L" STAMPED ON INSIDE

PI2110 ~ STEP PAD END CAP LEFT/FRONT OR RIGHT/REAR "R"

REPRESENTATION PHOTO THE CORRECT STEP PAD ORIENTATION IS WITH THE FLAT EDGE TO THE FENDER AND THE SMOOTH SLANTED EDGE AWAY FROM THE FENDER. THIS IS HOW YOUR BOOT WILL BE ORIENTED BASED ON THE LOCATION STATED. IF YOU WANT YOUR BOOT MOUNTED THE OPPOSITE WAY, PLEASE SELECT THE OPPOSITE SIDE. MAGIC TILT STEP PAD BOOT ~ PI2110 SOLD INDIVIDUALLY ATTACHING SCREW OR RIVET NOT INCLUDED HAS "R" STAMPED ON INSIDE

PIVOT L BRACKETS

Alum "L" BRKT 2"X2" 1/4"

PIVOT L BRACKETS

Galv "L" BRKT [WIDE]NO Fasteners

PIVOT L BRACKETS

Galv "L"BRKT W/Fasteners

PJ1350 ~ DOUBLE-EYE SPRING 20"

REPRESENTATION PHOTO MAGIC TILT LEAF SPRING ~ PJ1350 # LEAF: 3 DOUBLE-EYE SPRINGS ARE MEASURED FROM THE CENTER OF THE FRONT EYE TO THE CENTER OF THE REAR EYE. INCLUDES .58" ID NYLON SPRING BUSHINGS (ALLOWS FOR GALVANIZED 1/2" BOLT) DOES NOT INCLUDE MOUNTING HARDWARE MOUNTING HARDWARE KITS HARDWARE KITS

PK1000 ~ 1-AXLE MOUNT KIT 1-EYE 1-1/2" AXLE GALVANIZED

REPRESENTATION PHOTO MAGIC TILT SINGLE AXLE MOUNT KIT ~ PK1000 Provides all necessary hardware to mount single-eye springs on one 1-1/2" square axle. FOR CORRECT U-BOLT, SELECT NUMBER OF SPRING LEAVES IN DROP-DOWN INCLUDES: 2 x PK1200 3-HOLE PLATES GALVANIZED 2 x CAPSCREW 1/2" x 3-1/2" GR 5 PLATED 2 x NUT NYLOC 1/2-13 PLATED 4 x NUT HEX 1/2-13 GALVANIZED 4 x WASHER FLAT 1/2" GALVANIZED 4 x WASHER LOCK 1/2" GALVANIZED 2 x U-BOLT 1/2" x 2-3/4" x SELECT GALVANIZED

PK1050 ~ 1-AXLE MOUNT KIT 1-EYE 2x2 AXLE GALVANIZED

REPRESENTATION PHOTO MAGIC TILT SINGLE AXLE MOUNT KIT ~ PK1050 PROVIDES ALL NECESSARY HARDWARE TO MOUNT SINGLE-EYE SPRINGS ON ONE 2" SQUARE AXLE FOR CORRECT U-BOLT, SELECT NUMBER OF SPRING LEAVES IN DROP-DOWN 3, 4, 5, 6 INCLUDES: 2 x PK1250 5-HOLE PLATES GALV 2 x CAPSCREW 1/2" x 3-1/2" GR 5 PLATED 2 x NUT NYLOCK 1/2-13 PLATED 8 x NUT HEX 1/2-13 GALV 8 x WASHER FLAT USS 1/2" GALV 8 x WASHER LOCK 1/2" GALV 4 x U-BOLT 1/2" x 2-1/16" x SELECT GALV

PK1050-1 ~ 1-AXLE MOUNT KIT 1-EYE 2x3 AXLE GALVANIZED

REPRESENTATION PHOTO MAGIC TILT SINGLE AXLE MOUNT KIT ~ PK1050-1 PROVIDES ALL NECESSARY HARDWARE TO MOUNT SINGLE-EYE SPRINGS ON ONE 2" x 3" AXLE FOR CORRECT U-BOLT, SELECT NUMBER OF SPRING LEAVES IN DROP-DOWN 3, 4, 5, 6 INCLUDES: 2 x PK1250 5-HOLE PLATES GALV 2 x CAPSCREW 1/2" x 3-1/2" GR 5 PLATED 2 x NUT NYLOCK 1/2-13 PLATED 8 x NUT HEX 1/2-13 GALV 8 x WASHER FLAT USS 1/2" GALV 8 x WASHER LOCK 1/2" GALV 4 x U-BOLT 1/2" x 2-1/16" x SELECT GALV

PK1100 ~ 1-AXLE MOUNT KIT 2-EYE 2x2 AXLE GALVANIZED

REPRESENTATION PHOTO MAGIC TILT SINGLE AXLE MOUNT KIT ~ PK1100 Provides all necessary hardware to mount double-eye springs on one 2" square axle. FOR CORRECT U-BOLT, SELECT NUMBER OF SPRING LEAVES IN DROP-DOWN 3, 4, 5, 6 INCLUDES: 2 x PK1250 5-HOLE PLATES GALV 4 x PK1300 2-HOLE SHACKLE PLATE GALV 2 x SPACER DOUBLE EYE SPRING 1-3/4" ALUM 6 x CAPSCREW 1/2" x 3-1/2" GR 5 PLATED 6 x NUT NYLOCK 1/2-13 PLATED 8 x NUT HEX 1/2-13 GALV 12 x WASHER FLAT USS 1/2" GALV 8 x WASHER LOCK 1/2" GALV 4 x U-BOLT 1/2" x 2-1/16" x SELECT GALV

PK1100-1 ~ 1-AXLE MOUNT KIT 2-EYE 2x3 AXLE GALVANIZED

REPRESENTATION PHOTO MAGIC TILT SINGLE AXLE MOUNT KIT ~ PK1100-1 Provides all necessary hardware to mount double-eye springs on one 2" x 3" square axle. FOR CORRECT U-BOLT, SELECT NUMBER OF SPRING LEAVES IN DROP-DOWN 3, 4, 5, 6 INCLUDES: 2 x PK1250 5-HOLE PLATE GALV 4 x PK1300 2-HOLE SHACKLE PLATE GALV 2 x SPACER D-EYE SPRING 1-3/4" ALUM 6 x GRADE-5 BOLT (1/2" x 3-1/2") PLATED 6 x 1/2" NYLOCK NUT PLATED 8 x 1/2" HEX NUT GALV 12 x 1/2" FLAT WASHER GALV 8 x 1/2" LOCK WASHER GALV 4 x SQUARE U-BOLT 1/2" x 2-1/16" x SELECT GALV

PK1100-SS ~ 1-AXLE MOUNT KIT 2-EYE 2x2 AXLE STAINLESS / GALV

REPRESENTATION PHOTO MAGIC TILT SINGLE AXLE MOUNT KIT ~ PK1100-SS Provides all necessary hardware to mount double-eye springs on one 2" square axle. FOR CORRECT U-BOLT, SELECT NUMBER OF SPRING LEAVES IN DROP-DOWN 3, 4, 5, 6 INCLUDES: 2 x PK1250 5-HOLE PLATES GALV 4 x PK1300 2-HOLE SHACKLE PLATE GALV 2 x SPACER DOUBLE EYE SPRING 1-3/4" ALUM 6 x CAPSCREW 1/2" x 3-1/2" GR 5 PLATED 6 x NUT NYLOCK 1/2-13 PLATED 8 x NUT HEX 1/2-13 STAINLESS 12 x WASHER FLAT USS 1/2" GALV 8 x WASHER LOCK 1/2" STAINLESS 4 x U-BOLT 1/2" x 2-1/16" x SELECT STAINLESS

PK1150 ~ 2-AXLE MOUNT KIT 2-EYE 2x2 AXLE GALVANIZED

REPRESENTATION PHOTO MAGIC TILT TANDEM AXLE MOUNT KIT ~ PK1150 Provides all necessary hardware to mount double-eye springs on two 2" square axles. SPRING TYPE DOUBLE-EYE FOR CORRECT U-BOLT, SELECT NUMBER OF SPRING LEAVES IN DROP-DOWN 3, 4, 5, 6 INCLUDES: 4 x PK1250 5-HOLE PLATES GALV 8 x PK1300 2-HOLE SHACKLE PLATE GALV 12 x CAPSCREW 1/2" x 3-1/2" GR 5 PLATED 2 x CAPSCREW 1/2" x 4" GR 5 PLATED 14 x NUT NYLOCK 1/2-13 PLATED 16 x NUT HEX 1/2-13 GALV 28 x WASHER FLAT USS 1/2" GALV 16 x WASHER LOCK 1/2" GALV 8 x U-BOLT 1/2" x 2-1/16" x SELECT GALV

PK1150-SS ~ 2-AXLE MOUNT KIT 2-EYE 2x2 AXLE STAINLESS / GALV

REPRESENTATION PHOTO MAGIC TILT TANDEM AXLE MOUNT KIT ~ PK1150-SS Provides all necessary hardware to mount double-eye springs on two 2" square axles. FOR CORRECT U-BOLT, SELECT NUMBER OF SPRING LEAVES IN DROP-DOWN 3, 4, 5, 6 INCLUDES: 4 x PK1250 5-HOLE PLATES GALV 8 x PK1300 2-HOLE SHACKLE PLATE GALV 12 x CAPSCREW 1/2" x 3-1/2" GR 5 PLATED 2 x CAPSCREW 1/2" x 4" GR 5 PLATED 14 x NUT NYLOCK 1/2-13 PLATED 16 x NUT HEX 1/2-13 STAINLESS 28 x WASHER FLAT USS 1/2" GALV 16 x WASHER LOCK 1/2" STAINLESS 8 x U-BOLT 1/2" x 2-1/16" x SELECT STAINLESS

PK1152 ~ 2-AXLE MOUNT KIT 2-EYE 2x3 AXLE GALVANIZED

REPRESENTATION PHOTO MAGIC TILT TANDEM AXLE MOUNT KIT ~ PK1152 Provides all necessary hardware to mount double-eye springs on two 2" x 3" axles. FOR CORRECT U-BOLT, SELECT NUMBER OF SPRING LEAVES IN DROP-DOWN 3, 4, 5, 6 INCLUDES: 4 x PK1250 5-HOLE PLATES GALV 8 x PK1300 2-HOLE SHACKLE PLATE GALV 12 x CAPSCREW 1/2" x 3-1/2" GR 5 PLATED 2 x CAPSCREW 1/2" x 4" GR 5 PLATED 14 x NUT NYLOCK 1/2-13 PLATED 16 x NUT HEX 1/2-13 GALV 28 x WASHER FLAT USS 1/2" GALV 16 x WASHER LOCK 1/2" GALV 8 x U-BOLT 1/2" x 2-1/16" x SELECT GALV

PK1152-SS ~ 2-AXLE MOUNT KIT 2-EYE 2x3 AXLE STAINLESS / GALV

REPRESENTATION PHOTO MAGIC TILT TANDEM AXLE MOUNT KIT ~ PK1152-SS Provides all necessary hardware to mount double-eye springs on two 2" x 3" square axles FOR CORRECT U-BOLT, SELECT NUMBER OF SPRING LEAVES IN DROP-DOWN 3, 4, 5, 6 INCLUDES: 4 x PK1250 x 5-HOLE PLATES GALV 8 x PK1300 x 2-HOLE PLATES GALV 12 x PY0260 x CAPSCREW 1/2 x 3-1/2 GR5 PLATED 2 x PY0265 x CAPSCREW 1/2 x 4 GR5 PLATED 16 x PY1025 x LOCK WASHER 1/2 STAINLESS 14 x PY1315 x NUT NYLOCK 1/2-13 PLATED 28 x PY1515 x FLAT WASHER USS 1/2 GALV 16 x PY1785 x HEX NUT 1/2" STAINLESS 16 x PY1905 x FLAT WASHER 1/2" STAINLESS 8 x PY2538 x U-BOLT SS 1/2 x 2-1/16 x SELECT GALV

PK1153 ~ 3-AXLE MOUNT KIT 2-EYE 2x3 AXLE GALVANIZED

REPRESENTATION PHOTO MAGIC TILT TRIPLE AXLE MOUNT KIT ~ PK1153 Provides all necessary hardware to mount double-eye springs on three 2" x 3" axles. FOR CORRECT U-BOLT, SELECT NUMBER OF SPRING LEAVES IN DROP-DOWN 3, 4, 5, 6 INCLUDES: 6 x PK1250 x 5-HOLE PLATES GALV 16 x PK1300 x 2-HOLE SHACKLE PLATE GALV 20 x PY0260 x CAPSCREW 1/2" x 3-1/2" GR 5 PLATED 4 x PY0265 x CAPSCREW 1/2" x 4" GR 5 PLATED 24 x PY1315 x NUT NYLOCK 1/2-13 PLATED 24 x PY1410 x NUT HEX 1/2-13 GALV 48 x PY1515 x WASHER FLAT USS 1/2" GALV 24 x PY1610 x WASHER LOCK 1/2" GALV 12 x PY2050 x U-BOLT 1/2" x 2-1/16" x SELECT GALV

PK1200 ~ 3-HOLE PLATE GALVANIZED

REPRESENTATION PHOTO MAGIC TILT 3-HOLE PLATE ~ PK1200

PK1205 ~ 3-HOLE BUNK PLATE GALVANIZED

REPRESENTATION PHOTO MAGIC TILT 3-HOLE BUNK PLATE ~ PK1205

PK1250 ~ 5-HOLE PLATE GALVANIZED

REPRESENTATION PHOTO MAGIC TILT 5-HOLE PLATE ~ PK1250

PK1300 ~ 2-HOLE SHACKLE PLATE GALVANIZED

REPRESENTATION PHOTO MAGIC TILT 2-HOLE SHACKLE PLATE ~ PK1300

PK1320 ~ 1-HOLE SLOT PLATE GALVANIZED

REPRESENTATION PHOTO MAGIC TILT 1-HOLE SLOT PLATE ~ PK1320

PK1450 ~ SPRING-EYE BOLT WITH LOCK NUT 1/2" x 3-1/2"

REPRESENTATION PHOTO MAGIC TILT BOLT W/ NUT ~ PK1450 SPRING EYE BOLTS NEED TO BE GRADE 5 AND HAVE A NYLOCK NUT STAINLESS STEEL BOLTS TO NOT MEET THE STRENGTH REQUIREMENTS AND GALVANIZED NYLOCK NUTS DO NOT EXIST BOLTS SHOULD NOT BE TOO TIGHT. SPRINGS MUST BE ALLOWED TO MOVE FREELY AROUND THE EYE BOLTS

PK1701 ~ SPRING HANGER 1-PIECE STANDARD GALVANIZED

REPRESENTATION PHOTO MAGIC TILT SPRING HANGER ~ PK1701 WORK ON FRONT OR REAR OF SPRINGS. WINGS ARE SPREAD TO ACCOMMODATE PIVOT SHACKLES AT REAR. IF NO PIVOT SHACKLES ARE USED (FRONT MOUNT, ONE-EYE SPRINGS) YOU CAN PULL THE WINGS DOWN TO 90° WITH THE SPRING EYE BOLT. SPRING-EYE BOLT PK1450 (NOT INCLUDED)

PK1702 ~ SPRING HANGER 2-PIECE HEAVY-DUTY GALVANIZED

REPRESENTATION PHOTO MAGIC TILT SPRING HANGER ~ PK1702

PK1702-T ~ SPRING HANGER 2-PIECE CA-SERIES 2-BOLT GALVANIZED

REPRESENTATION PHOTO MAGIC TILT SPRING HANGER ~ PK1702-T USE WITH PY1701 SQUARE MOUNT BOLTS

PK1703 ~ SPRING HANGER 2-PIECE MEDIUM-DUTY GALVANIZED

REPRESENTATION PHOTO MAGIC TILT SPRING HANGER ~ PK1703

PK1731 ~ SLIPPER SPRING HANGER GALVANIZED

REPRESENTATION PHOTO MAGIC TILT SLIPPER SPRING HANGER ~ PK1731 MOUNTS THROUGH 2"-WIDE TUBE FRAME FOR SINGLE-EYE SPRING REAR HANGER

PK1800 ~ EQUALIZER BOLT-ON PLATE 5-3/4 in GALVANIZED

REPRESENTATION PHOTO MAGIC TILT EQUALIZER PLATE ~ PK1800

PK1800-T ~ EQUALIZER BOLT-ON PLATE 5-3/4" CA-SERIES GALVANIZED

REPRESENTATION PHOTO MAGIC TILT EQUALIZER PLATE ~ PK1800-T USE WITH PY1701 SQUARE MOUNT BOLTS

PK1810 ~ EQUALIZER BOLT-ON PLATE 4-1/2 in GALVANIZED

REPRESENTATION PHOTO MAGIC TILT EQUALIZER PLATE ~ PK1810

PK1950 ~ EQUALIZER "6-1/2" GALVANIZED

REPRESENTATION PHOTO MAGIC TILT EQUALIZER ~ PK1950 INCLUDES NYLON BUSHINGS

PK2000 ~ EQUALIZER "8" INCH GALVANIZED

REPRESENTATION PHOTO MAGIC TILT EQUALIZER ~ PK2000 INCLUDES NYLON BUSHINGS

PK2512 ~ 1-AXLE UNDERCARRIAGE 38" 2-EYE INSIDE MOUNT

REPRESENTATION PHOTO SPECIAL ORDER. PLEASE ALLOW ADDITIONAL TIME. MAGIC TILT UNDERCARRIAGE ~ PK2512 WILL WORK ON EITHER LEFT OR RIGHT SIDE 31" BETWEEN STEP MOUNTS USED ON ALUMINUM FRAME TRAILERS HOLE SIZE FOR MOUNTING TO FRAME: 1/2" ON 4-1/4" CENTERS BOLT PATTERN FOR MOUNTING TO FRAME MAY NOT MATCH EXISTING UNDERCARRIAGE AXLE & SPRING-TO-UNDERCARRIAGE HARDWARE KITS: 2x2 AXLES: GALVANIZED PK1100 , STAINLESS/GALV PK1100-SS 2x3 AXLES: GALVANIZED PK1100-1

PK2513 ~ 1-AXLE UNDERCARRIAGE 38" 2-EYE OUTSIDE MOUNT

REPRESENTATION PHOTO MAGIC TILT UNDERCARRIAGE ~ PK2513 WILL WORK ON EITHER LEFT OR RIGHT SIDES 31" BETWEEN STEP MOUNTS USED ON ALUMINUM FRAME TRAILERS HOLE SIZE FOR MOUNTING TO FRAME: 1/2" BOLT PATTERN FOR MOUNTING TO FRAME MAY NOT MATCH EXISTING UNDERCARRIAGE AXLE & SPRING-TO-UNDERCARRIAGE HARDWARE KITS: 2x2 AXLES: GALVANIZED PK1100 , STAINLESS/GALV PK1100-SS 2x3 AXLES: GALVANIZED PK1100-1

PK2550 ~ 2-AXLE UNDERCARRIAGE 63-1/2" NO STEPS

REPRESENTATION PHOTO MAGIC TILT UNDERCARRIAGE ~ PK2550 NO STEPS, FENDER BRACKETS, FRAME MOUNT HOLES USES TWO U-BOLTS TO GO AROUND TUBE OR C-CHANNEL FRAMES (NOT INCLUDED) BOTTOM CAN BE DRILLED TO BOLT DIRECTLY UNDER AN I-BEAM FRAME AXLE & SPRING-TO-UNDERCARRIAGE HARDWARE KITS: 2x2 AXLES: GALVANIZED PK1150 , STAINLESS/GALV PK1150-SS 2x3 AXLES: GALVANIZED PK1152 , STAINLESS/GALV PK1152-SS

PK2655 ~ 2-AXLE UNDERCARRIAGE 71" 68" FENDERS FOR ALUMINUM STEPS

Magic Tilt Undercarriage ~ PK2655 Good to know: Primarily used on aluminum i-beam trailers Hole size for mounting to frame: 1/2" On 4-1/4" Centers Bolt pattern for mounting to frame may not match existing undercarriage Axle & Spring-to-undercarriage hardware kits: 2x2 Axles: Galvanized PK1150 , Stainless/Galv PK1150-SS 2x3 Axles: Galvanized PK1152 , Stainless/Galv PK1152-SS

PK2658 ~ 2-AXLE UNDERCARRIAGE 71" 60" FENDERS FOR ALUMINUM STEPS

REPRESENTATION PHOTO MAGIC TILT UNDERCARRIAGE ~ PK2658 PRIMARILY USED ON ALUMINUM I-BEAM TRAILERS FOR PONTOON BOATS HOLE SIZE FOR MOUNTING TO FRAME: 1/2" ON 4-1/4" CENTERS BOLT PATTERN FOR MOUNTING TO FRAME MAY NOT MATCH EXISTING UNDERCARRIAGE AXLE & SPRING-TO-UNDERCARRIAGE HARDWARE KITS: 2x2 AXLES: GALVANIZED PK1150 , STAINLESS/GALV PK1150-SS 2x3 AXLES: GALVANIZED PK1152 , STAINLESS/GALV PK1152-SS

PK2705 ~ 2-AXLE UNDERCARRIAGE 78" WITH STEPS

REPRESENTATION PHOTO MAGIC TILT UNDERCARRIAGE ~ PK2705 NO FRAME MOUNTING HOLES PRIMARILY USED ON GALVANIZED TRAILERS USES TWO U-BOLTS TO GO AROUND TUBE OR C-CHANNEL FRAMES (NOT INCLUDED) AXLE & SPRING-TO-UNDERCARRIAGE HARDWARE KITS: 2x2 AXLES: GALVANIZED PK1150 , STAINLESS/GALV PK1150-SS 2x3 AXLES: GALVANIZED PK1152 , STAINLESS/GALV PK1152-SS

PK2770 ~ 3-AXLE UNDERCARRIAGE 112" WITH STEPS

REPRESENTATION PHOTO (PLEASE CALL 941-358-1117 FOR SHIPPING QUOTE) MAGIC TILT UNDERCARRIAGE ~ PK2770 NO FRAME MOUNTING HOLES USED ON ALUMINUM AND GALVANIZED TRAILERS USES U-BOLTS TO GO AROUND TUBE OR C-CHANNEL FRAMES (NOT INCLUDED) AXLE & SPRING-TO-UNDERCARRIAGE HARDWARE KIT: PK1153

PK2775 ~ 3-AXLE UNDERCARRIAGE 120" WITH STEPS

REPRESENTATION PHOTO (PLEASE CALL 941-358-1117 FOR SHIPPING QUOTE) MAGIC TILT UNDERCARRIAGE ~ PK2775 USED ON ALUMINUM AND GALVANIZED TRAILERS USES U-BOLTS TO GO AROUND TUBE OR C-CHANNEL FRAMES (NOT INCLUDED) AXLE & SPRING-TO-UNDERCARRIAGE HARDWARE KIT: PK1153

PL0512 ~ BULB COMBINATION TAIL LIGHT LH >80" (KARAVAN 205-00157)

REPRESENTATION PHOTO MAGIC TILT SUBMERSIBLE TAIL LIGHT ~ PL0512 DISCONTINUED ITEM. LIMITED STOCK AVAILABLE RIGHT HAND NO LONGER AVAILABLE INCLUDES MOLDED BULLET CONNECTORS

PL1100 ~ BULB SQUARE TAIL LIGHT LH <80"

REPRESENTATION PHOTO MAGIC TILT SUBMERSIBLE SQUARE TAIL LIGHT ~ PL1100 RELATED PARTS (NOT INCLUDED) PL2311 BUTT CONNECTOR PL2944 WIRE TIE WITH ANCHOR CHASSIS CLIPS

PL1110 ~ JAMMY J-71 LED COMBINATION TAIL LIGHT RH >80"

REPRESENTATION PHOTO MAGIC TILT SUBMERSIBLE LED TAIL LIGHT ~ PL1110 INCLUDES: MOUNTING HARDWARE 8" LEADS W/ GROUNG RING TERMINAL RELATED PARTS (NOT INCLUDED) PL2311 BUTT CONNECTOR PL2944 WIRE TIE WITH ANCHOR CHASSIS CLIPS

PL1112 ~ JAMMY J-71 LED COMBINATION TAIL LIGHT LH >80"

REPRESENTATION PHOTO MAGIC TILT SUBMERSIBLE LED TAIL LIGHT ~ PL1112 INCLUDES: MOUNTING HARDWARE 8" LEADS W/ GROUND RING TERMINAL RELATED PARTS (NOT INCLUDED) PL2311 BUTT CONNECTOR PL2944 WIRE TIE WITH ANCHOR CHASSIS CLIPS

PL1118 ~ JAMMY J-VID LED "V" LIGHT BAR >80"

REPRESENTATION PHOTO MAGIC TILT SUBMERSIBLE LED LIGHT BAR ~ PL1118 RELATED PARTS (NOT INCLUDED) PL2311 BUTT CONNECTOR PL2944 WIRE TIE WITH ANCHOR CHASSIS CLIPS

PL1150 ~ BULB SQUARE TAIL LIGHT RH <80"

REPRESENTATION PHOTO MAGIC TILT SUBMERSIBLE SQUARE TAIL LIGHT ~ PL1150 RELATED PARTS (NOT INCLUDED) PL2311 BUTT CONNECTOR PL2944 WIRE TIE WITH ANCHOR CHASSIS CLIPS

PL1160 ~ PIPE LIGHT KIT BULB (ONE PAIR)

REPRESENTATION PHOTO MAGIC TILT PIPE LIGHT KIT ~ PL1160 FEAUTRES: EASY INSERT ONTO EXISTING 2" PVC TRAILER GUIDE-ONS LONGER LASTING LIGHTS BECAUSE THEY AREN'T SUBMERGED IN WATER DURING LAUNCHING AND LOADING STOP, TAIL, AND TURN FUNCTIONS ON LIGHTS RAISED HIGHER THAN STANDARD TRAILER LIGHTS WHICH OFFERS BETTER VISIBILTY AMBER REFLECTIVE TAPE ON LIGHT HOUSING AIDS IN BACKING TRAILER AT NIGHT TYPE: BULB INCLUDES: - 10' WIRE LEADS - EASY INSTALLATION WIRE CONNECTORS

PL1162 ~ PIPE LIGHT KIT LED (ONE PAIR)

REPRESENTATION PHOTO MAGIC TILT PIPE LIGHT KIT ~ PL1162 EASY INSERT ONTO 2" PVC TRAILER GUIDE-ONS LONGER LASTING LIGHTS BECAUSE THEY AREN'T SUBMERGED IN WATER DURING LAUNCHING AND LOADING STOP, TAIL, AND TURN FUNCTIONS ON LIGHTS AMBER REFLECTIVE TAPE ON LIGHT HOUSING AIDS IN BACKING TRAILER AT NIGHT RAISED HIGHER THAN STANDARD TRAILER LIGHTS WHICH OFFERS BETTER VISIBILITY TYPE: LED INCLUDES: - 10' WIRE LEADS - EASY INSTALLATION WIRE CONNECTORS

PL1180 ~ OPTRONICS STL16RB LED COMBINATION TAIL LIGHT RH >80"

REPRESENTATION PHOTO MAGIC TILT SUBMERSIBLE LED TAIL LIGHT ~ PL1180 RELATED PARTS (NOT INCLUDED) PL2311 BUTT CONNECTOR PL2944 WIRE TIE WITH ANCHOR CHASSIS CLIPS

PL1182 ~ OPTRONICS STL17RB LED COMBINATION TAIL LIGHT LH >80"

REPRESENTATION PHOTO MAGIC TILT SUBMERSIBLE LED TAIL LIGHT ~ PL1182 RELATED PARTS (NOT INCLUDED) PL2311 BUTT CONNECTOR PL2944 WIRE TIE WITH ANCHOR CHASSIS CLIPS

PL1186 ~ LED 3-PIECE LED LIGHT BAR >80" OPTRONICS MCL97

REPRESENTATION PHOTO MAGIC TILT SUBMERSIBLE LED LIGHT BAR ~ PL1186 STAINLESS STEEL BAR IS CORROSION-RESISTANT WITH 3 SEALED LIGHTS PRE-WIRED WITH 36" LEAD WIRE GROUNDS THROUGH MOUNTING HARDWARE RELATED PARTS (NOT INCLUDED) PL2311 BUTT CONNECTOR PL2944 WIRE TIE WITH ANCHOR CHASSIS CLIPS

PL1402 ~ STICK-ON DOT AMBER REFLECTOR

REPRESENTATION PHOTO MAGIC TILT REFLECTOR ~ PL1402

PL2252 ~ 7-WAY TO 4-WAY ADAPTER PLUG

REPRESENTATION PHOTO MAGIC TILT ADAPTER PLUG ~ PL2252 NOT FOR USE WITH TRAILERS WITH HYDRAULIC SURGE BRAKES

PL2253 ~ 7-WAY TO 5-WAY ADAPTER PLUG

REPRESENTATION PHOTO MAGIC TILT ADAPTER PLUG ~ PL2253 FOR USE WITH TRAILERS WITH HYDRAULIC SURGE BRAKES

PL2260 ~ 7-WAY PIGTAIL 8'

REPRESENTATION PHOTO MAGIC TILT REPLACEMENT PIGTAIL ~ PL2260 # CONDUCTORS: 7 REPLACEMENT 7-PIN PIGTAIL FOR MAGIC TILT TRAILERS USING ELECTRIC-OVER-HYDRAULIC BRAKES REPLACEMENT FOR ANY MARINE, UTILITY, CARGO, EQUIPMENT TRAILER THAT HAS ELECTRIC OR ELECTRIC-OVER-HYDRAULIC BRAKES INCLUDES MOLDED 7-ROUND PLUG END COLOR-CODED WIRES ON TRAILER END KINK FREE PVC SHEATHING RELATED PARTS (NOT INCLUDED) PL2311 BUTT CONNECTOR PL2944 WIRE TIE WITH ANCHOR CHASSIS CLIPS

PL2311 ~ INSULATED BUTT CONNECTOR

REPRESENTATION PHOTO MAGIC TILT INSULATED BUTT CONNECTOR ~ PL2311 RELATED PARTS (NOT INCLUDED) PL2944 WIRE TIE WITH ANCHOR CHASSIS CLIPS

PL2550 ~ LICENSE TAG BRACKET

REPRESENTATION PHOTO MAGIC TILT LICENSE TAG BRACKET ~ PL2550 MOUNTS BETWEEN LEFT TAIL LAMP AND TAIL LAMP MOUNTING BRACKET

PL2700 ~ BULB TRAILER LIGHTING & WIRING KIT <80"

REPRESENTATION PHOTO MAGIC TILT BULB TRAILER LIGHT & WIRING KIT ~ PL2700 APPLICATION: TRAILERS UNDER 80" WIDE TRAILERS WITHOUT SURGE DISC BRAKES INCLUDES: 1 x PL1100 WATERPROOF TAIL LIGHT LH (WITH LICENSE PLATE LIGHT) 1 x PL1150 WATERPROOF TAIL LIGHT RH 2 x PL1065 AMBER CLEARANCE LIGHT 1 x PL2060 25' WIRE HARNESS 4 x PL2311 HEAT-SHRINK BUTT CONNECTOR 14-16 GA 1 x PL2550 LICENSE TAG BRACKET 10 x PL2944 PLASTIC TIE 8"

PL2751 ~ LED TRAILER LIGHTING & WIRING KIT <80"

REPRESENTATION PHOTO MAGIC TILT LED TRAILER LIGHT & WIRING KIT <80"~ PL2751 APPLICATION: TRAILERS WITHOUT SURGE DISC BRAKES INCLUDES: 1 x PL1112 WATERPROOF LED TAIL LIGHT LH (WITH LICENSE PLATE LIGHT) 1 x PL1110 WATERPROOF LED TAIL LIGHT RH 2 x PL1116 AMBER "DOT" CLEARANCE LIGHTS W/ 8" LEAD 1 x PL2060 25' 4-FLAT WIRE HARNESS 4 x PL2311 HEAT-SHRINK BUTT CONNECTORS 14-16 GA 1 x PL2550 LICENSE TAG BRACKET 10 x PL2944 PLASTIC TIES 8"

PL2752 ~ LED TRAILER LIGHTING & WIRING KIT >80"

REPRESENTATION PHOTO MAGIC TILT TRAILER LIGHTING & WIRING KIT LED ~ PL2752 APPLICATION: TRAILERS WITHOUT SURGE DISC BRAKES INCLUDES: 1 x PL1112 WATERPROOF LED TAIL LIGHT LH (WITH LICENSE PLATE LIGHT) 1 x PL1110 WATERPROOF LED TAIL LIGHT RH 2 x PL1116 AMBER "DOT" CLEARANCE LIGHTS W/ 8" LEAD 1 X PL1186 3-LIGHT CLEARANCE BAR 1 x PL2060 25' 4-FLAT WIRE HARNESS 4 x PL2311 HEAT-SHRINK BUTT CONNECTORS 14-16 GA 1 x PL2550 LICENSE TAG BRACKET 10 x PL2944 PLASTIC TIES 8"

PL2754 ~ OPTRONICS TLL90RK LED COMBINATION TAIL LIGHT SET <80"

REPRESENTATION PHOTO MAGIC TILT LED SUBMERSIBLE TRAILER LIGHT SET ~ PL2754 INCLUDES: 1 x LED WATERPROOF TAIL LIGHT LH (WITH LICENSE PLATE LIGHT) 1 x LED WATERPROOF TAIL LIGHT RH MOUNTING HARDWARE LIMITED LIFETIME WARRANTY THROUGH OPTRONICS RELATED PARTS (NOT INCLUDED) PL2311 BUTT CONNECTOR PL2944 WIRE TIE WITH ANCHOR CHASSIS CLIPS

PL2755 ~ OPTRONICS TLL12RK LED COMBINATION TAIL LIGHT KIT OVAL

REPRESENTATION PHOTO MAGIC TILT LED SUBMERSIBLE TRAILER LIGHT KIT ~ PL2755 INCLUDES: 2 x 6" OVAL LED WATERPROOF COMBINATION TAIL LIGHTS 2 x RUBBER FRAME GROMMETS 2 x 3-POLE PIGTAILS LIMITED LIFETIME WARRANTY THROUGH OPTRONICS DOES NOT PROVIDE CLEARANCE OR LICENCE PLATE ILLUMINATION RELATED PARTS (NOT INCLUDED) PL2311 BUTT CONNECTOR PL2944 WIRE TIE WITH ANCHOR CHASSIS CLIPS

PL2756 ~ OPTRONICS TLL16RK LED COMBO TAIL LIGHT KIT <80"

REPRESENTATION PHOTO MAGIC TILT LED SUBMERSIBLE TRAILER LIGHT KIT ~ PL2756 INCLUDES: 1 x 8" LED WATERPROOF COMBINATION TAIL LIGHT LH WITH LICENSE PLATE LIGHT 1 x 8" LED WATERPROFF COMBINATION TAIL LIGHT RH 1 x LICENSE PLATE BRACKET 1 x 25&#39; WIRE HARNESS WITH 4-PIN FLAT CONNECTOR MOUNTING HARDWARE LIMITED LIFETIME WARRANTY THROUGH OPTRONICS

PL2757 ~ OPTRONICS TLL160RK LED COMBO TAIL LIGHT SET >80"

REPRESENTATION PHOTO MAGIC TILT LED SUBMERSIBLE TRAILER LIGHT SET ~ PL2757 INCLUDES: 1 x LED WATERPROOF TAIL LIGHT LH (WITH LICENSE PLATE LIGHT) 1 x LED WATERPROOF TAIL LIGHT RH MOUNTING HARDWARE LIMITED LIFETIME WARRANTY THROUGH OPTRONICS RELATED PARTS (NOT INCLUDED) PL2311 BUTT CONNECTOR PL2944 WIRE TIE WITH ANCHOR CHASSIS CLIPS

PL2758 ~ OPTRONICS TLL20RK LED COMBO TAIL LIGHT SET >80"

REPRESENTATION PHOTO MAGIC TILT LED SUBMERSIBLE TRAILER LIGHT SET ~ PL2758 INCLUDES: 1 x LED WATERPROOF TAIL LIGHT LH (WITH LICENSE PLATE LIGHT) 1 x LED WATERPROOF TAIL LIGHT RH MOUNTING HARDWARE LIMITED LIFETIME WARRANTY THROUGH OPTRONICS RELATED PARTS (NOT INCLUDED) PL2311 BUTT CONNECTOR PL2944 WIRE TIE WITH ANCHOR CHASSIS CLIPS

PL2944 ~ PLASTIC ZIP TIE WITH PLUG ANCHOR 8"

REPRESENTATION PHOTO MAGIC TILT PLASTIC ZIP TIE ~ PL2944 RELATED PARTS (NOT INCLUDED) PL2311 BUTT CONNECTOR CHASSIS CLIPS

PL2954 ~ PLASTIC ZIP TIE 14-1/2"

REPRESENTATION PHOTO MAGIC TILT PLASTIC WIRE TIE ~ PL2954 RELATED PARTS (NOT INCLUDED) PL2311 BUTT CONNECTOR PL2944 WIRE TIE WITH ANCHOR CHASSIS CLIPS

PL9050 ~ OPTRONICS TLL0016RK LED COMBO TAIL LIGHT SET >80"

REPRESENTATION PHOTO MAGIC TILT LED SUBMERSIBLE TRAILER LIGHT SET ~ PL9050 INCLUDES: 1 x LED WATERPROOF TAIL LIGHT LH (WITH LICENSE PLATE LIGHT) 1 x LED WATERPROOF TAIL LIGHT RH MOUNTING HARDWARE LIMITED LIFETIME WARRANTY THROUGH OPTRONICS RELATED PARTS (NOT INCLUDED) PL2311 BUTT CONNECTOR PL2944 WIRE TIE WITH ANCHOR CHASSIS CLIPS

PL9051 ~ OPTRONICS MCL13R2B LED RED MARKER LIGHT

REPRESENTATION PHOTO MAGIC TILT LED SIDE MARKER LIGHT ~ PL9051 INCLUDED POWER AND GROUND WIRE LIMITED LIFETIME WARRANTY THROUGH OPTRONICS RELATED PARTS (NOT INCLUDED) PL2311 BUTT CONNECTOR PL2944 WIRE TIE WITH ANCHOR CHASSIS CLIPS

PL9052 ~ OPTRONICS MCL13A2B LED AMBER MARKER LIGHT

REPRESENTATION PHOTO MAGIC TILT LED SIDE MARKER LIGHT ~ PL9052 INCLUDED POWER AND GROUND WIRE LIMITED LIFETIME WARRANTY THROUGH OPTRONICS RELATED PARTS (NOT INCLUDED) PL2311 BUTT CONNECTOR PL2944 WIRE TIE WITH ANCHOR CHASSIS CLIPS

PL9060-1 ~ CLEARANCE / MARKER LED KIT

REPRESENTATION PHOTO MAGIC TILT CLEARANCE / MARKER KIT ~ PL9060-1

Plastic Bunk Cover

4 sizes available

Plastic Fenders for Single Axle Trailers

FENDER 15" W/STEPS GRAY

Plated Ni-Lock Nuts

3 sizes available

Plush Black Carpet

CARPET 9"X12" BLACK(PER FT)

Plush Black Carpet

CARPET 12"X12" Black [per ft]

Plush Black Carpet

CARPET 24"X12" BLACK(PER FT)

Plush Black Carpet

CARPET 20"X12" BLACK(PER FT)

PM1000 ~ PWC WINCH 600 LBS.

Magic Tilt PWC Winch W/ Strap ~ PM1000 Does Not Include Mounting Hardware

PM1005 ~ PWC WINCH W/ ARM

REPRESENTATION PHOTO MAGIC TILT PWC WINCH WITH ARM ~ PM1005 INCLUDES PM1000 WINCH WITH STRAP CAN BE USED WITH 3" BOW ROLLERS OR RUBBER V-BLOCK (NOT INCLUDED) BOLTS THROUGH ANY WINCH POST (HARDWARE NOT INCLUDED)

PM1175 ~ WINCH SINGLE-SPEED 1400 LBS.

REPRESENTATION PHOTO MAGIC TILT WINCH W/ STRAP ~ PM1175 DOES NOT INCLUDE MOUNTING HARDWARE

PM1275 ~ WINCH SINGLE-SPEED 1800 LBS.

REPRESENTATION PHOTO MAGIC TILT WINCH W/ STRAP ~ PM1275 INCLUDES WINCH STRAP DOES NOT INCLUDE MOUNTING HARDWARE

PM1355 ~ WINCH TWO-SPEED 2000 LBS.

REPRESENTATION PHOTO MAGIC TILT WINCH W/ STRAP ~ PM1355 INCLUDES WINCH STRAP DOES NOT INCLUDE MOUNTING HARDWARE

PM1415 ~ WINCH TWO-SPEED 2500 LBS.

REPRESENTATION PHOTO MAGIC TILT WINCH W/ STRAP ~ PM1415 INCLUDES WINCH STRAP DOES NOT INCLUDE MOUNTING HARDWARE

PM1445 ~ WINCH TWO-SPEED 3200 LBS.

REPRESENTATION PHOTO MAGIC TILT WINCH W/ STRAP ~ PM1445 INCLUDES HD YELLOW WINCH STRAP DOES NOT INCLUDE MOUNTING HARDWARE

PM1455 ~ WINCH TWO-SPEED 3500 LBS.

REPRESENTATION PHOTO MAGIC TILT WINCH W/ STRAP & BRAKE ~ PM1455 INCLUDES HD WINCH STRAP AND BRAKE DOES NOT INCLUDE MOUNTING HARDWARE

PM1860 ~ WINCH HANDLE ONE-SPEED 7" DL 204457B

REPRESENTATION PHOTO MAGIC TILT WINCH HANDLES INCLUDES NYLOCK NUT REPLACEMENT HANDLE FOR PM1805 WINCH

PO1470 ~ WINCH POST 3" x 3" x 36" HEAVY-DUTY

REPRESENTATION PHOTO MAGIC TILT WINCH POST ~ PO1470 DOES NOT INCLUDE MOUNTING HARDWARE OR PO3541 END CAP

PO1475 ~ WINCH POST 3" x 3" x 20" STEEP HEAVY-DUTY

REPRESENTATION PHOTO MAGIC TILT WINCH POST ~ PO1475 DOES NOT INCLUDE MOUNTING HARDWARE OR PO3541 END CAP

PO1480 ~ WINCH POST 3" x 3" x 30" STEEP HEAVY-DUTY

REPRESENTATION PHOTO MAGIC TILT WINCH POST ~ PO1480 DOES NOT INCLUDE MOUNTING HARDWARE OR PO3541 END CAP

PO1485 ~ WINCH POST 3" x 3" x 30" STEEP STANDARD

REPRESENTATION PHOTO MAGIC TILT WINCH POST ~ PO1485 DOES NOT INCLUDE MOUNTING HARDWARE OR PO3541 END CAP

PO1490 ~ WINCH POST 3" x 3" x 36" STEEP HEAVY-DUTY

REPRESENTATION PHOTO MAGIC TILT WINCH POST ~ PO1490 DOES NOT INCLUDE MOUNTING HARDWARE OR PO3541 END CAP

PO1510 ~ WINCH POST ASSEMBLY 30" HEAVY-DUTY

REPRESENTATION PHOTO MAGIC TILT WINCH POST ASSEMBLY ~ PO1510 VERTICAL HEIGHT TO ROLLER CENTER: 20" TO 34" USES PO2160 WINCH POST, PO2170-1 WINCH SEAT, PO6294 ROLLER DOES NOT INCLUDE MOUNTING HARDWARE OR WINCH

PO1520 ~ WINCH POST ASSEMBLY 36" HEAVY-DUTY

REPRESENTATION PHOTO MAGIC TILT HEAVY-DUTY WINCH POST ASSEMBLY ~ PO1520 VERTICAL HEIGHT TO ROLLER CENTER: 20" TO 38" USES PO1470 WINCH POST, PO2170-1 WINCH SEAT, PO6294 ROLLER DOES NOT INCLUDE MOUNTING HARDWARE OR WINCH

PO1528 ~ WINCH POST ASSEMBLY 24" STANDARD-DUTY

REPRESENTATION PHOTO MAGIC TILT WINCH POST ASSEMBLY ~ PO1528 VERTICAL HEIGHT TO ROLLER CENTER: 17-1/2" TO 29" USES PO2166 WINCH POST, PO2170-1 WINCH SEAT, PO6294 BOW ROLLER DOES NOT INCLUDE MOUNTING HARDWARE OR WINCH

PO1535 ~ WINCH POST ASSEMBLY 30" STANDARD-DUTY

REPRESENTATION PHOTO MAGIC TILT WINCH POST ASSEMBLY ~ PO1535 VERTICAL HEIGHT TO ROLLER CENTER: 18" TO 33" USES PO2161 WINCH POST, PO2170-1 WINCH SEAT, PO6294 ROLLER DOES NOT INCLUDE MOUNTING HARDWARE OR WINCH

PO1537 ~ WINCH POST ASSEMBLY 30" (STEEP) STANDARD-DUTY

REPRESENTATION PHOTO MAGIC TILT STEEP ANGLE WINCH POST ASSEMBLY ~ PO1537 VERTICAL HEIGHT TO ROLLER CENTER: 20" TO 32" USES PO1485 WINCH POST, PO2170-1 WINCH SEAT, PO6294 ROLLER DOES NOT INCLUDE MOUNTING HARDWARE OR WINCH

PO1750-1 ~ WINCH POST ASSEMBLY 24" (SKIFF)

REPRESENTATION PHOTO MAGIC TILT WINCH POST ASSEMBLY ~ PO1750-1 PO2170-1 HD WINCH SEAT PO2166 WINCH POST DOES NOT INCLUDE MOUNTING HARDWARE OR WINCH

PO1910 ~ WINCH POST TOP CUSTOM 10 in (ADJUSTABLE)

REPRESENTATION PHOTO MAGIC TILT WINCH POST TOP ~ PO1910 3" x 3" BASE TUBE 11-1/2" LONG ROLLER BRACKET 11" x 4" WINCH PLATE W/ PRE-DRILLED HOLES REQUIRES 4" BOW ROLLER (NOT INCLUDED) REQUIRES A 2-1/2" WINCH POST BOTTOM (NOT INCLUDED)

PO1932 ~ BOW STOP (AIRBOAT) GALVANIZED

REPRESENTATION PHOTO MAGIC TILT BOW STOP (AIRBOAT)~ PO1932 WINCH POST MOUNTING HARDWARE NOT INCLUDED ASSEMBLY PROJECTS FROM WINCH POST AT 90-DEGREES

PO1932-1 ~ WINCH SEAT/ POST ASSEMBLY (AIRBOAT)

REPRESENTATION PHOTO MAGIC TILT WINCH SEAT/ POST ASSEMBLIES ~ PO1932-1 HIEGHT TO CENTER OF BOARDS: 13" TO 29" INCLUDES: PO1485 WINCH POST (STEEP) PO1932 WINCH SEAT / BOW STOP CARPETED BOARDS (2"x 4"x 12") SHIPS DISASSEMBLED DOES NOT INCLUDE UBOLTS FOR MOUNTING TO TONGUE OR WINCH

PO1945 ~ 2-1/2" x 2-1/2" TWO-PIECE BOW REST BOTTOM

REPRESENTATION PHOTO MAGIC TILT BOW REST BOTTOM ~ PO1945 FITS INSIDE TWO-PIECE ADJUSTABLE BOW STOPS AND TOPS WITH 3"x 3" TUBES TWO-PIECE SINGLE BOW REST ASSEMBLIES TWO-PIECE DOUBLE BOW REST ASSEMBLIES PO1957 TWO-PIECE BOW REST ASSEMBLY W/ WOOD ADJUSTABLE TWO-PIECE PINNACLE BOW REST ASSEMBLIES 45-DEGREE ADJUSTABLE TWO-PIECE PINNACLE BOW REST TOPS FIXED ADJUSTABLE TWO-PIECE PINNACLE BOW REST ASSEMBLIES WITH SWIVEL ADJUSTABLE TWO-PIECE PINNACLE BOW REST TOPS WITH SWIVEL TONGUE MOUNTING HARDWARE NOT INCLUDED

PO1957 ~ TWO-PIECE BOW REST ASSEMBLY W/ WOOD

REPRESENTATION PHOTO MAGIC TILT BOW REST ASSEMBLY ~ PO1957 DOES NOT INCLUDE TONGUE MOUNTING HARDWARE REPLACEMENT CARPETED WOOD BLOCK PT5022 USES PO1945 BOTTOM

PO1980 ~ BOW STOP "U" BRACKET

REPRESENTATION PHOTO MAGIC TILT "U" BRACKET ~ PO1980 DOES NOT INCLUDE MOUNTING HARDWARE , PM1000 WINCH , ROLLER

PO1995 ~ PRO-DRIVE WINCH POST / SEAT (ADJUSTABLE)

REPRESENTATION PHOTO MAGIC TILT PRO DRIVE WINCH POST / SEAT ~ PO1995 HEIGHT (TONGUE TO ROLLER CENTER): 14" TO 18" MOUNTING HARDWARE , 4" BOW STOP , WINCH NOT INCLUDED

PO1996 ~ PRO-DRIVE WINCH POST ASSEMBLY (ADJUSTABLE)

REPRESENTATION PHOTO MAGIC TILT PRO DRIVE WINCH POST ASSEMBLY ~ PO1996 * PLEASE SPECIFY TONGUE SIZE IN DROP-DOWN * HEIGHT (TONGUE TO ROLLER CENTER): 14" TO 18" USES PO1995 WINCH POST DOES NOT INCLUDE WINCH INCLUDES: MOUNTING HARDWARE FOR TONGUE - SPECIFY TONGUE HEIGHT SIZE IN DROP-DOWN BOW ROLLER BOW EYE SAFETY CHAIN

PO2010 ~ WINCH POST ASSEMBLY CUSTOM 24" (ADJUSTABLE)

REPRESENTATION PHOTO MAGIC TILT WINCH POST ASSEMBLY ~ PO2010 HEIGHT (BASE TO ROLLER CENTER): 17" TO 24" APPROX DOES NOT INCLUDE WINCH OR MOUNDING HARDWARE INCLUDES: BOW ROLLER SAFETY CHAIN

PO2020 ~ WINCH POST ASSEMBLY 48" SUPER HEAVY-DUTY

REPRESENTATION PHOTO MAGIC TILT WINCH POST ASSEMBLY ~ PO2020 TONGUE MOUNTING HARDWARE AND WINCH NOT INCLUDED USES PO2180 WINCH POST, PO2191 WINCH SEAT, PO1976 BOW REST

PO2042 ~ PWC WINCH ASSEMBLY

Magic Tilt PWC Winch Assembly ~ PO2042 Good to know: Includes PM1000 Winch with strap and mounting hardware to winch post Use With PO3520 Winch Post (sold separately)

PO2096 ~ WINCH POST 3" x 3" x 24" ALUMINUM LIGHT-DUTY

REPRESENTATION PHOTO MAGIC TILT WINCH POST ~ PO2096 DOES NOT INCLUDE MOUNTING HARDWARE REPLACEMENT POST FOR PO2100 PWC ASSEMBLY

PO2100 ~ WINCH POST ASSEMBLY PWC 20"

REPRESENTATION PHOTO MAGIC TILT PWC WINCH POST ASSEMBLY W/ WINCH ~ PO2100 INCLUDES PM1000 WINCH & STRAP, PO2096 WINCH POST DOES NOT INCLUDE MOUNTING HARDWARE FOR TONGUE USED ON SINGLE OR DOUBLE PWC AND SMALL BOAT TRAILERS

PO2149 ~ WINCH POST ASSEMBLY CUSTOM FLOYD ALUMINUM

REPRESENTATION PHOTO CUSTOM BUILT PART. PLEASE ALLOW ADDITIONAL TIME FOR DELIVERY. MAGIC TILT WINCH POST ASSEMBLY ~ PO2149 DOES NOT INCLUDE MOUNTING HARDWARE OR WINCH DESIGNED FOR THE FLOYD 10W SKIFF. WILL WORK ON MANY OTHER SKIFFS THAT HAVE A MILD VEE NOSE AND ARE EXPERIENCING HANGUP DURING LAUNCH AND RETRIEVAL.

PO2150 ~ WINCH POST ASSEMBLY 48" SUPER HEAVY-DUTY

MAGICT TILT WINCH POST ASSEMBLY ~ PO2150 USES PO2180 WINCH POST, PO2190 WINCH SEAT, PO6294 ROLLER DOES NOT INCLUDE TONGUE MOUNTING HARDWARE OR WINCH

PO2160 ~ WINCH POST 3" x 3" x 30" HEAVY-DUTY 6-HOLE

REPRESENTATION PHOTO MAGIC TILT WINCH POST ~ PO2160 DOES NOT INCLUDE MOUNTING HARDWARE OR PO3541 END CAP

PO2161 ~ WINCH POST 3" x 3" x 30" HEAVY-DUTY 4-HOLE

REPRESENTATION PHOTO MAGIC TILT WINCH POST ~ PO2161 DOES NOT INCLUDE MOUNTING HARDWARE OR PO3541 END CAP

PO2165 ~ WINCH POST 3" x 3" x 20" STANDARD

REPRESENTATION PHOTO MAGIC TILT WINCH POST ~ PO2165 DOES NOT INCLUDE MOUNTING HARDWARE OR PO3541 END CAP

PO2166 ~ WINCH POST 3" x 3" x 24" STANDARD

REPRESENTATION PHOTO MAGIC TILT WINCH POST ~ PO2166 DOES NOT INCLUDE MOUNTING HARDWARE OR PO3541 END CAP

PO2170-1 ~ WINCH SEAT STANDARD

REPRESENTATION PHOTO MAGIC TILT WINCH SEAT ~ PO2170-1 5" WINCH BASE W/ PRE-DRILLED HOLES MOUNTING HARDWARE SOLD SEPARATLEY USE WITH 4" BOW ROLLERS / STOPS

PO2171 ~ WINCH SEAT STANDARD (NO ARMS)

REPRESENTATION PHOTO MAGIC TILT WINCH SEAT ~ PO2171 DOES NOT INCLUDE MOUNTING HARDWARE

PO2179 ~ WINCH POST 3" x 4" x 48" STEEP SUPER HEAVY-DUTY

REPRESENTATION PHOTO MAGIC TILT WINCH POST ~ PO2179 DOES NOT INCLUDE MOUNTING HARDWARE OR PO3542 END CAP

PO2180 ~ WINCH POST 3" x 4" x 48" SUPER HEAVY-DUTY

REPRESENTATION PHOTO MAGIC TILT WINCH POST ~ PO2180 DOES NOT INCLUDE MOUNTING HARDWARE OR PO3542 END CAP

PO2190 ~ WINCH SEAT HEAVY-DUTY

REPRESENTATION PHOTO MAGIC TILT WINCH SEAT ~ PO2190 HAS 20" LONG ROLLER BRACKET & 12" x 5" WINCH BASE W/ PRE-DRILLED HOLES MOUNTS ON 3" WIDE POST MOUNTING HARDWARE SOLD SEPARATELY USE WITH 4" BOW ROLLERS / STOPS

PO2191 ~ WINCH SEAT HEAVY-DUTY (NO ARMS)

REPRESENTATION PHOTO MAGIC TILT WINCH SEAT ~ PO2191 MOUNTS ON 3" WIDE POST WITH TWO 1/2" DIAMETER U-BOLTS MOUNTING HARDWARE SOLD SEPARATELY

PO2240 ~ WINCH SEAT LIGHT-DUTY

REPRESENTATION PHOTO MAGIC TILT WINCH SEAT ~ PO2240 MOUNTING HARDWARE AND ROLLER NOT INCLUDED MOUNTS TO WINCH POST BY EITHER: WRAPING WITH 1/2" U-BOLTS AND PK1320 PLATES OR THROUGH-BOLTED WITH BOLTS USE WITH 3" BOW ROLLERS / STOPS

PO2262 ~ TWO-PIECE PINNACLE BOW REST ASSEMBLY WITH SWIVEL LOW PROFILE

REPRESENTATION PHOTO MAGIC TILT BOW REST ASSEMBLY ~ PO2262 HEAD PIVOTS TO BETTER MATCH BOW SLOPE AND REDUCE PRESSURE POINTS MOUNTING HARDWARE NOT INCLUDED

PO2400 ~ MAST HOLDER TOP CATAMARAN

REPRESENTATION PHOTO MAGIC TILT CATAMARAN MAST HOLDER ~ P02400 MOUNTING HARDWARE NOT INCLUDED

PO2610 ~ CROSSMEMBER GALVANIZED PONTOON 2" x 2" x 96"

REPRESENTATION PHOTO MAGIC TILT CROSS-MEMBER ~ PO2610 (PLEASE CALL 941-358-1117 FOR SHIPPING QUOTE) DOES NOT HAVE ANY PRE-DRILLED HOLES END PLUGS NOT INCLUDED

PO2612 ~ CROSSMEMBER GALVANIZED PONTOON 2" x 2" x 84"

REPRESENTATION PHOTO MAGIC TILT CROSS-MEMBER ~ PO2612 DOES NOT HAVE ANY PRE-DRILLED HOLES END PLUGS NOT INCLUDED

PO2859 ~ BOW STOP (PONTOON) ALUMINUM

REPRESENTATION PHOTO MAGIC TILT BOW STOP (PONTOON) ~ PO2859 ASSEMBLY PROJECTS FROM WINCH POST AT 90-DEGREES REQUIRES TWO 1/2" U-BOLTS TO MOUNT TO WINCH POST (NOT INCLUDED)

PO2861 ~ LADDER ASSEMBLY TONGUE MOUNT ALUMINUM

REPRESENTATION PHOTO MAGIC TILT LADDER ASSEMBLY TONGUE MOUNT ~ PO2861 SHIPS LTL ON PALLET - PLEASE CALL 941-358-1117 FOR SHIPPING QUOTE SPECIAL ORDER. PLEASE ALLOW ADDITIONAL TIME TONGUE MOUNTING HARDWARE NOT INCLUDED

PO2900 ~ CAT WINCH POST / BOW STOP (BAY CAT) ALUMINUM

REPRESENTATION PHOTO MAGIC TILT CAT WINCH POST / BOW STOP ~ PO2900 ** SPECIAL ORDER - PLEASE ALLOW ADDITIONAL TIME ** SHIPS LTL ON PALLET - PLEASE CALL 941-358-1117 FOR SHIPPING QUOTE DESIGNED FOR TWIN VEE 19/22 BAYCAT. MAY BE SUITABLE FOR OTHER CAT APPLICATIONS CAN BE USED WITH PO2941 RISER TO INCREASE HEIGHT BY 8" OTHER ASSEMBLIES FOR SPECIFIC CAT BOATS AVAILABLE. PLEASE CALL 941-358-1117. USES PT5054 84" CARPETED BOARD (NOT INCLUDED) DOES NOT INCLUDE TONGUE MOUNTING HARDWARE , WINCH , CAP , SAFETY CHAIN

PO2927 ~ CAT BOW STOP 90" GALVANIZED

REPRESENTATION PHOTO MAGIC TILT CAT BOW STOP ~ PO2927 ** SPECIAL ORDER - PLEASE ALLOW ADDITIONAL TIME ** SHIPS LTL ON PALLET - PLEASE CALL 941-358-1117 FOR SHIPPING QUOTE MAY BE SUITABLE FOR VARIOUS CAT APPLICATIONS CAN BE USED WITH PO2941 RISER TO INCREASE HEIGHT BY 8" OTHER ASSEMBLIES FOR SPECIFIC CAT BOATS AVAILABLE. PLEASE CALL 941-358-1117. USES PT5055 96" CARPETED BOARD (NOT INCLUDED) DOES NOT INCLUDE TONGUE MOUNTING HARDWARE , SAFETY CHAIN

PO2941 ~ CAT BOW STOP RISER GALVANIZED

REPRESENTATION PHOTO MAGIC TILT CAT BOW STOP RISER ~ PO2941 USED TO INCREASE OVERALL HEIGHT OF CAT BOW STOP PO2927 BY 8" REQUIRES THREE 1/2" U-BOLTS TO MOUNT TO TONGUE AND SIX 1/2" BOLTS TO FASTEN TO BOW STOP (NOT INCLUDED) BOLT PATTERN MATCHES BASE PLATE OF CAT BOW STOP

PO2945 ~ WINCH POST 3" x 3" x 60" STRAIGHT W/ STEPS

REPRESENTATION PHOTO MAGIC TILT WINCH POST ~ PO2945 DOES NOT INCLUDE MOUNTING HARDWARE PO3542 END CAP WINCH SEAT WINCH OPTIONAL GRAB HANDLE FOR TOP PO2981

PO2951 ~ WINCH POST ASSEMBLY 30" (SKIFF) STANDARD-DUTY

REPRESENTATION PHOTO MAGIC TILT SKIFF WINCH POST ASSEMBLY ~ PO2951 SHIPS PARTIALLY DISASSEMBELED USES PO2160 WINCH POST AND PO2170-1 WINCH SEAT PIVOTTING CARPETTED BOARDS TO SPAN BOW AND SPLASH GUARD LIP DOES NOT INCLUDE MOUNTING HARDWARE OR WINCH

PO2981 ~ WINCH POST HANDLE

REPRESENTATION PHOTO MAGIC TILT WINCH POST HANDLE ~ P02981 FITS INSIDE 1-1/2" SQUARE TUBING WITH THE FOLLOWING HARDWARE (NOT INCLUDED) PS2210 NUT RETAINER PS2150 SET SCREW KIT

PO3295 ~ TURN BUCKLE 20-1/4"

REPRESENTATION PHOTO MAGIC TILT TURN BUCKLE ~ PO3295

PO3400 ~ WINCH POST 3" x 3" x 30" LIGHT-DUTY

REPRESENTATION PHOTO MAGIC TILT WINCH POST ~ PO3400 THIS IS A LIGHT-DUTY POST (11 GUAGE) FOR UP TO 1500 LB. WINCHES. DOES NOT INCLUDE MOUNTING HARDWARE OR PO3541 END CAP

PO3450 ~ WINCH POST ASSEMBLY 30" LIGHT-DUTY

REPRESENTATION PHOTO MAGIC TILT WINCH POST ASSEMBLY ~ PO3450 THIS IS A LIGHT DUTY ASSEMBLY FOR UP TO 1500-POUND WINCHES DOES NOT INCLUDE TONGUE MOUNTING HARDWARE OR WINCH INCLUDES: 1 x PO2240 WINCH SEAT, GALVANIZED 1 x PO3400 3"x 3" WINCH POST, GALVANIZED 1 x PO3541 WINCH POST CAP 1 x PQ3010 3" BOW ROLLER 2 x PK1320 SLOT PLATES, GALVANIZED 1 x PY0270 BOLT, 1/2"x4-1/2", PLATED 1 x PY1315 NUT, NYLOCK, 1/2", PLATED 4 x PY1410 NUT, 1/2", GALVANIZED 4 x PY1610 LOCK WASHER, 1/2", GALVANIZED 2 x PY2035 U-BOLT, 1/2"x 3-1/16"x 4-5/16", GALVANIZED

PO3520 ~ WINCH POST 1-1/2" x 1-1/2" x 24" PWC

REPRESENTATION PHOT MAGIC TILT PWC WINCH POST ~ PO3520 UTILIZES PO2042 PWC WINCH/BOW STOP CAN BE THROUGH-BOLTED ON I-BEAMS DOES NOT INCLUDE MOUNTING HARDWARE OR PO3538 END PLUG

PP2245 ~ RUB STRIP WITH HOLES 4" x 10" x 3/8"

REPRESENTATION PHOTO MAGIC TILT RUB STRIP ~ PP2245 INCLUDES 4 SELF TAPPING MOUNTING SCREWS REPLACEMENT CENTER PAD FOR PV2280-3 ASSEMBLY PRE-DRILLED HOLE PATTERN NOT GUARANTEED TO MATCH OLDER HOLE PATTERN SOAK STRIP IN HOT WATER PRIOR TO INSTALLATION

PP2258 ~ BUNK SLIDE 3/8" x 12" x 8'

REPRESENTATION PHOTO MAGIC TILT BUNK SLIDE ~ PP2258 (PLEASE CALL 941-358-1117 FOR SHIPPING QUOTE AND TO ORDER) PREMOLDED WITH VEE DOWN CENTER NO HOLES MOUNTING HARDWARE NOT INCLUDED

PP2260 ~ RUB STRIP 3 x 2

REPRESENTATION PHOTO MAGIC TILT RUB STRIP ~ PP2260 MOUNTING HARDWARE NOT INCLUDED MOUNTED WITH RIVETS FROM FACTORY CAN BE MOUNTED WITH TWO PY0491 SCREWS

PP2270 ~ RUB STRIP 1-3/4 x 15

REPRESENTATION PHOTO MAGIC TILT RUB STRIP ~ PP2270 CAN BE TRIMMED TO DESIRED LENGTH MOUNTING HARDWARE NOT INCLUDED MOUNTED WITH RIVETS FROM FACTORY CAN BE MOUNTED WITH THREE PY0491 SCREWS

PQ1255 ~ KEEL ROLLER 12 in (SELF CENTERING)

REPRESENTATION PHOTO MAGIC TILT KEEL ROLLER ~ PQ1255 DESIGNED TO MAKE CENTERING YOUR BOAT MUCH EASIER WITH EMBEDDED GROOVES THAT CENTER THE BOAT AS IT ROLLS FORWARD. MADE OF EXTREMELY CUT AND WEAR-RESISTANT POLYURETHANE WITH AN ADDED UV INHIBITOR AND WILL NOT DEVELOP FLAT SPOTS OR MARK YOUR BOAT. KEEL ROLLERS ARE NOT INTENDED AS WEIGHT-BEARING STRUCTURES BUT AS A GUIDE AND PROTECTIVE DEVICE. WHEN PROPERLY ADJUSTED, THE KEEL SHOULD JUST TOUCH OR JUST CLEAR THE ROLLER. USE WITH PR1550 ROLLER SHAFT, OR PR1560 SHAFT AND TWO PQ1360 END CAPS (NOT INCLUDED)

PQ1600 ~ ROLLER END CAP WHEEL 8-1/2" (STOLTZ)

REPRESENTATION PHOTO MAGIC TILT END CAP WHEEL ~ PQ1600 SOLD INDIVIDUALLY OFTEN USED ON SKIFFS OR ANY BOW WITH A LARGE PROTRUSION WHERE ADDITIONAL STANDOFF IS REQUIRED.

PQ1650 ~ BOW STOP ROLLER ASSEMBLY 8"

REPRESENTATION PHOTO MAGIC TILT ROLLER ASSEMBLY ~ PQ1650 * SELECT INNER ROLLER LENGTH (3" OR 4") IN DROP-DOWN. CORRECT BOLT LENGTH WILL BE INCLUDED. INCLUDES: 1 x BOW STOP ROLLER * 2 x PQ1600 WHEEL 8" 1 x CAPSCREW PLATED 1/2 x * GR5 1 x NYLOCK NUT 1/2-13 PLATED 2 x WASHER FLAT 1/2 GALVANIZED

PR1650 ~ ROLLER SHAFT CAP NUT 5/8"

REPRESENTATION PHOTO MAGIC TILT ROLLER SHAFT CAP NUT ~ PR1650 SOLD INDIVIDUALLY USED WITH VARIOUS KEEL ROLLER MOUNTS AND 5/8" ROLLER SHAFTS

Pro I-Beam Jack Mounts

2 sizes available

Pro Spare Tire Mounts

4 sizes available

PS0867-1 ~ DUAL KAYAK CROSS-BUNK

REPRESENTATION PHOTO MAGIC TILT KAYAK CROSS BUNK BOLTS PERPENDICULAR TO A 2" x 3" CENTER SUPPORT. CAN HOLD ONE OR TWO KAYAKS. 6" CLEARANCE FROM TONGUE. INCLUDES: 2x4x6' CARPETED BUNK ON GALVANIZED SUPPORT 2 X UBOLTS - 1/2 x 2-1/16 x 4-5/16, GALV 4 X NUTS - 1/2, GALV 4 X LOCK WASHERS - 1/2, GALV 2 x WELDED TIE-DOWNS ON ENDS

PS1010 ~ KEEL ROLLER ASSEMBLY 5"

REPRESENTATION PHOTO MAGIC TILT ROLLER ASSEMBLY ~ PS1010 KEEL ROLLERS ARE NOT INTENDED AS WEIGHT-BEARING STRUCTURES BUT AS A GUIDE AND PROTECTIVE DEVICE. WHEN PROPERLY ADJUSTED, THE KEEL SHOULD JUST TOUCH OR JUST CLEAR THE ROLLER. MOUNTING HARDWARE NOT INCLUDED

PS1110 ~ TONGUE ROLLER BRACKET 5"

REPRESENTATION PHOTO MAGIC TILT TONGUE ROLL BRACKET ~ PS1110 SOLD INDIVIDUALLY

PS1178 ~ TONGUE ROLLER ASSEMBLY 5" (KARAVAN 310-00324)

REPRESENTATION PHOTO MAGIC TILT TONGUE ROLLER ASSEMBLY ~ PS1178 INCLUDES: MOUNTING HARDWARE USES 2 X PS1110 BRACKETS MAY SHIP WITH BLUE OR BLACK ROLLER KEEL ROLLERS ARE NOT INTENDED AS WEIGHT-BEARING STRUCTURES BUT AS A GUIDE AND PROTECTIVE DEVICE. WHEN PROPERLY ADJUSTED, THE KEEL SHOULD JUST TOUCH OR JUST CLEAR THE ROLLER.

PS1280 ~ KEEL ROLLER BRACKET ASSEMBLY 8"

REPRESENTATION PHOTO MAGIC TILT ROLLER ASSEMBLY ~ PS1280 MOUNTING HARDWARE NOT INCLUDED NOT ADJUSTABLE

PS1540 ~ ROLLER BRACKET 12" (PONTOON / CAT)

REPRESENTATION PHOTO MAGIC TILT ROLLER BRACKET ~ PS1540 CAN BE USED FOR SPLIT-HULL VESSELS (PONTOONS, HOBIE CATS, CATAMARANS) THAT DON'T REQUIRE FULL-LENGTH SUPPORT MOUNTING HARDWARE NOT INCLUDED USES 2-1/2" STRAIGHT ROLLERS (NOT INCLUDED) REPLACEMENT BRACKET FOR PS1550 ASSEMBLY

PS1550 ~ ROLLER BRACKET ASSEMBLY 12" (PONTOON / CAT)

REPRESENTATION PHOTO MAGIC TILT ROLLER BRACKET ASSEMBLY ~ PS1550 CAN BE USED FOR SPLIT-HULL VESSELS (PONTOONS, HOBIE CATS, CATAMARANS) THAT DON'T REQUIRE FULL-LENGTH SUPPORT MOUNTING HARDWARE NOT INCLUDED USES PS1540 BRACKET USES 2-1/2" STRAIGHT ROLLERS

PS1925 ~ GALVANIZED TRAILER UNIVERSAL GUIDE POLE MOUNT PLATE

REPRESENTATION PHOTO MAGIC TILT MOUNT PLATE ~ PS1925 USED IN HARDWARE KIT PS1930 AND PV2155 GUIDE POLE ASSEMBLY. FOR MOUNTING GUIDE POLES TO GALVANIZED TRAILERS USING U-BOLTS.

PS2150 ~ SET SCREW WITH NUT 7/16" x 1-1/2"

REPRESENTATION PHOTO MAGIC TILT SET SCREW ~ PS2150 REPLACEMENT SET SCREW FOR PS2640 ASSEMBLY USED WITH THE PS2649 , PS2310 & PS2401 CLAMP-ON SOCKETS AND PS2210 NUT RETAINER (NOT INCLUDED)

PS2210 ~ NUT RETAINER PLATE

REPRESENTATION PHOTO MAGIC TILT NUT RETAINER PLATE ~ PS2210 REPLACEMENT RETAINER FOR PS2640 ASSEMBLY USED WITH THE PS2649 AND PS2310 & PS2401 CLAMP-ON SOCKETS AND PS2150 SET SCREW (NOT INCLUDED)

PS2640 ~ CLAMP-ON ASSEMBLY 3" x 1-1/2" TUBE

REPRESENTATION PHOTO MAGIC TILT CLAMP-ON ASSEMBLY ~ PS2640 DESIGNED TO MOUNT HORIZONTAL BUNKS TO 3" x 3" CROSSMEMBERS INCLUDES: 1 x PS2150 SET SCREW W/ NUT PLATED 1 x PS2210 NUT RETAINER PLATE GALV 1 x PS2649 3" x 3" CLAMP-ON SOCKET GALV 1 x PT1760 BUNK RISER 1-1/2" x 1-1/2" x 12" SQUARE GALV 1 x PT2070 PIVOT L BRACKET GALV 2 x PY0409 LAG SCREW 3/8" x 1-1/4" PLATED 3 x PY1405 HEX NUT 3/8-16 GALV 3 x PY1505 FLAT WASHER 3/8" GALV 3 x PY1605 LOCK WASHER 3/8" GALV 1 x PY1615 BOLT 3/8" x 2-1/2" GALV 2 x PY1624 BOLT 3/8" x 4-1/2" GALV

PS2649 ~ CLAMP-ON SOCKET 3" x 1-1/2" TUBE

REPRESENTATION PHOTO MAGIC TILT CLAMP-ON SOCKET ~ PS2649 DESIGNED TO MOUNT HORIZONTAL BUNKS TO 3" x 3" CROSSMEMBERS REPLACEMENT SOCKET FOR THE PS2640 ASSEMBLY MOUNTS OVER CROSSMEMBER WITH 3/8" x 4-1/2" GALVANIZED BOLT (NOT INCLUDED) REQUIRES ONE EACH PS2210 NUT RETAINER AND PS2150 SET SCREW (NOT INCLUDED) USE WITH PRE-CUT 1-1/2" TUBE BRACKETS OR BULK TUBE BRACKETS (NOT INCLUDED)

PS2652 ~ CLAMP-ON SOCKET 3" x 2" TUBE

REPRESENTATION PHOTO MAGIC TILT CLAMP-ON SOCKET ~ PS2652 USED TO MOUNT ANY BOW REST OR BUNK GUIDE USING 2" x 2" VERTICAL TUBING REQUIRES TWO PS2150 SET SCREWS (NOT INCLUDED) MOUNTS TO 3" x 3" CROSSMEMBERS WITH TWO 3/8" x 4-1/2" GALVANIZED BOLTS (NOT INCLUDED) USE WITH PU4040 2" TUBE (NOT INCLUDED)

PS2653-1 ~ CLAMP-ON TOP HAT 1-1/2" GALVANIZED

REPRESENTATION PHOTO MAGIC TILT CLAMP-ON SOCKET ~ PS2653-1

PS2655 ~ CA CHANNEL MOUNT GUIDE POLE MOUNT PLATE ALUMINUM

REPRESENTATION PHOTO MAGIC TILT MOUNT PLATE ~ PS2655 USED IN HARDWARE KIT PS2658 . FOR MOUNTING GUIDE POLES TO CA SERIES ALUMINUM TRAILERS EQUIPED WITH UNDER-FRAME CHANNEL.

PS2658 ~ CA CHANNEL MOUNT GUIDE POLE MOUNT KIT

REPRESENTATION PHOTO MAGIC TILT GUIDE POLE MOUNT ASSEMBLY ~ PS2658 CHANNEL. INCLUDES: 2 x PS2653-1 CLAMP-ON FOR 1-1/2" GUIDE POLES GALV 2 x PS2655 GUIDE PLATE FOR CA SERIES TRAILERS WITH UNDER-FRAME CHANNEL ALUM 4 x PY1701 1/2" x 1-1/2" SQUARE-HEAD BOLT STAINLESS 4 x PY1820 1/2" NYLOCK NUT STAINLESS 4 x PY1905 1/2" FLAT WASHER STAINLESS 8 x PY1710 3/8" x 1-1/4" BOLT STAINLESS 8 x PY1810 3/8" NYLOCK NUT STAINLESS 16 x PY1902 3/8" FLAT WASHER STAINLESS

PS2700 ~ CROSS-MEMBER YOKE 3" STRAIGHT GALVANIZED

REPRESENTATION PHOTO MAGIC TILT 3" CROSS-MEMBER YOKE ~ PS2700 WRAPS OVER 3" TALL BY 1-1/2" OR 2" WIDE FRAME RAIL TO ATTACH A 3" TALL STRAIGHT CROSSMEMBER IF ATTACHING A VEE CROSSMEMBER, USE YOKE PS2701

PS2701 ~ CROSS-MEMBER YOKE 3" VEE GALVANIZED

REPRESENTATION PHOTO MAGIC TILT 3" CROSS-MEMBER YOKE ~ PS2701 WRAPS OVER 3" TALL BY 1-1/2" OR 2" WIDE FRAME RAIL TO ATTACH A 3" TALL VEE (SMILE) CROSSMEMBER IF ATTACHING A STRAIGHT CROSSMEMBER OVER A 3" TALL x 1-1/2" OR 2" FRAME, USE YOKE PS2700 CAN BE USED TO ATTACH A 3" STRAIGHT CROSSMEMBER OVER A 3" x 3" FRAME

PS5100 ~ BOW REST ASSEMBLY 6'

REPRESENTATION PHOTO MAGIC TILT BOW REST KIT ~ PS5100 SPANS TWO 3" x 3" CROSSMEMBERS AT FRONT OF TRAILER INCLUDES: 2 x PV2281 ONE-PIECE BOW REST Y-SUPPORT GALV 2 x CARPETED HORIZONTAL BUNK 2" x 6" x 6' 2 x PS2653 2" TOP HAT BRACKET GALV 4 x PY2035 1/2" x 3-1/16" x 4-5/16" U-BOLT GALV 8 x PY1410 1/2" HEX NUT GALV 8 x PY1610 1/2" LOCK WASHER GALV

PT0301-1 ~ T-BUNK ASSEMBLY 18"

REPRESENTATION PHOTO MAGIC TILT T-BUNK ASSEMBLY ~ PT0301-1 INCLUDES: 2 x PS1110 TONGUE ROLLER BRACKET 1 x PT0301 CARPETED T-BUNK (2"x6"x18") 2 x PT2070 PIVOT L-BRACKET, GALV 2 x PY1620 BOLT 3/8" x 4" GALV 2 x PY1650 BOLT 3/8" x 1-1/4" GALV 4 x PY1405 NUT 3/8" GALV 4 x PY1605 LOCK WASHER 3/8" GALV 4 x PY0409 LAG SCREW 3/8" x 1-1/4" PLATED USED ON SKIFFS AND JON BOATS IN PLACE OF A FRONT KEEL ROLLER MOUNTS TO TONGUE, NOT CROSSMEMBER CARPETTED BOARDS PIVOT TO ALIGN WITH HULL

PT1001 ~ VERTICAL CARPETED BUNK

2" x 4"

REPRESENTATION PHOTO MAGIC TILT CARPETED BUNK ~ PT1001 PLEASE CALL 941-358-1117 FOR ORDERING & SHIPPING PRICE. CARPETED BUNKS ARE SOLD PER FOOT AND CAN BE CUT TO ANY CUSTOM LENGTH DESIRED. AVAILABLE IN BLACK OR GRAY CARPETING . SPECIFY WHEN CALLING . THESE BUNKS ARE DESIGNED TO BE MOUNTED IN THE VERTICAL POSSITION WITH VERTICAL BUNK BRACKETS .

PT1520 ~ VERTICAL BUNK BRACKET YOKE 3"

REPRESENTATION PHOTO MAGIC TILT BUNK BRACKET YOKE ~ PT1520 USED WITH PT1001 VERTICAL 2" x 4" BUNKS BOLTS DIRECTLY TO FRAME OR CROSSMEMBER
