PK2512 ~ 1-AXLE UNDERCARRIAGE 38" 2-EYE INSIDE MOUNT
SKU: PK2512
Specifications
- Shipping Weight19 lbs
- TYPESINGLE AXLE UNDERCARRIAGE FOR ALUMINUM STEPS
- MOUNT LOCATIONINSIDE OF FRAME
- SPRING SIZE25-1/4" DOUBLE EYE (NOT INCLUDED)
- STEP SIZE10" ALUMINUM STEP PADS (NOT INCLUDED)
- MOST COMMON TIRE SIZE13", 14"
- FENDERPI1805 OR PI1805-S (NOT INCLUDED)
- MATERIALGALVANIZED
- SPRING EYE BOLTPK1450

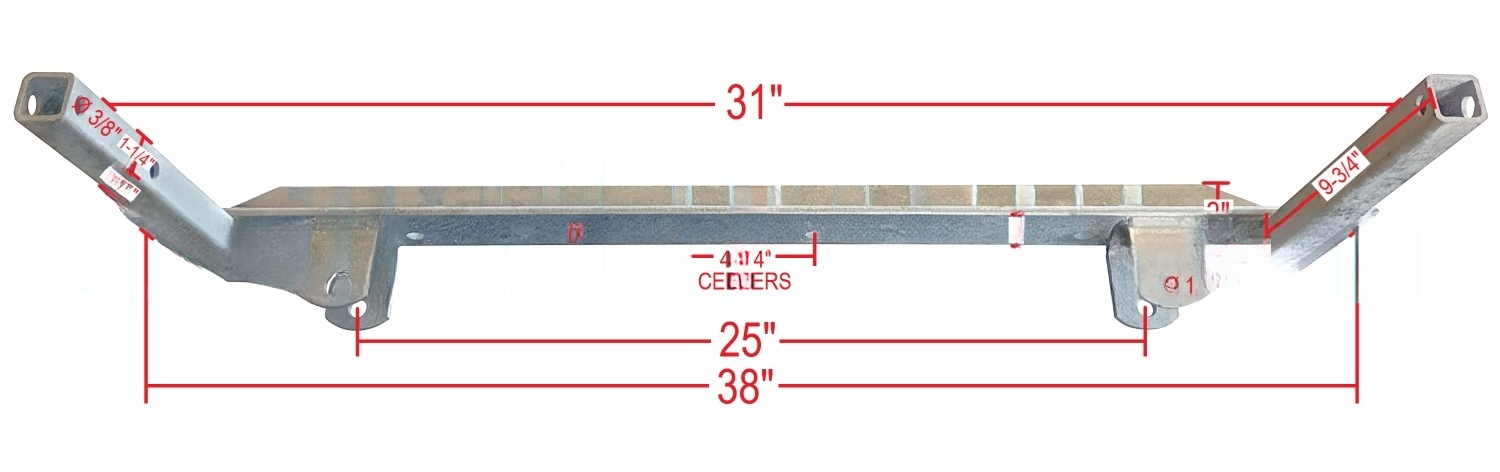

- REPRESENTATION PHOTO
- SPECIAL ORDER. PLEASE ALLOW ADDITIONAL TIME.
- MAGIC TILT UNDERCARRIAGE ~ PK2512
- WILL WORK ON EITHER LEFT OR RIGHT SIDE
- 31" BETWEEN STEP MOUNTS
- USED ON ALUMINUM FRAME TRAILERS
- HOLE SIZE FOR MOUNTING TO FRAME: 1/2" ON 4-1/4" CENTERS
- BOLT PATTERN FOR MOUNTING TO FRAME MAY NOT MATCH EXISTING UNDERCARRIAGE
