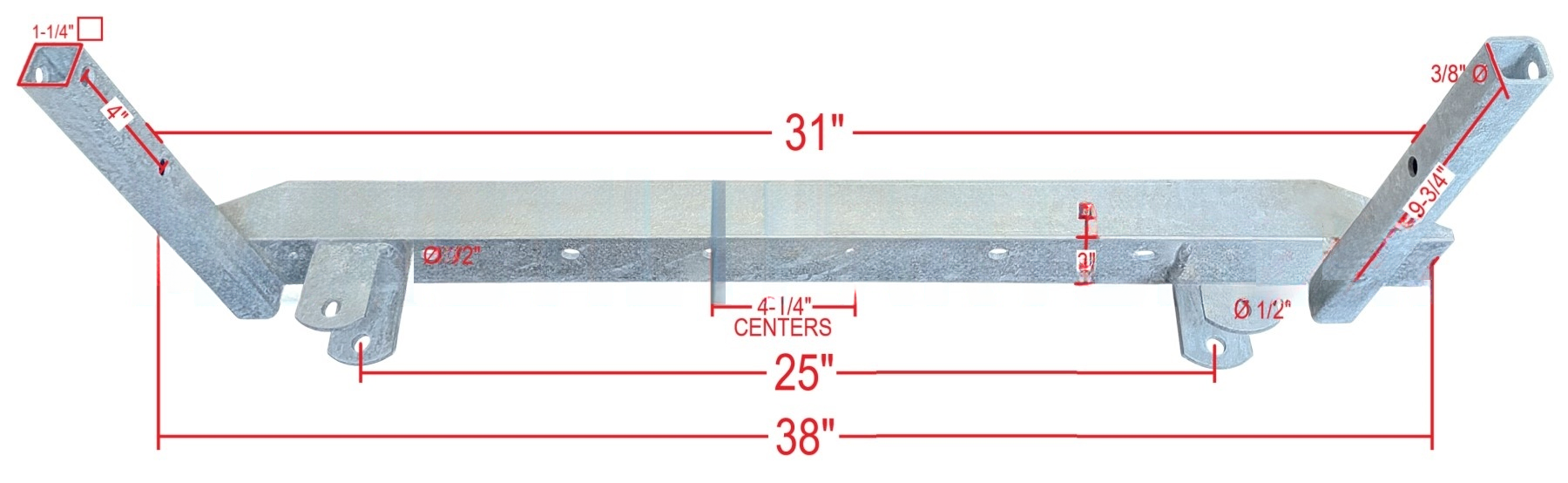

PK2513 ~ 1-AXLE UNDERCARRIAGE 38" 2-EYE OUTSIDE MOUNT

Specifications

• Shipping Weight19 lbs
• TYPESINGLE AXLE UNDERCARRIAGE FOR ALUMINUM STEPS
• MOUNT LOCATIONOUTSIDE OF FRAME
• SPRING SIZE25-1/4" DOUBLE EYE (NOT INCLUDED)
• STEP SIZE10" ALUMINUM STEP PADS (NOT INCLUDED)
• MOST COMMON TIRE SIZE13", 14"
• FENDERSPI1805 OR PI1805-S (NOT INCLUDED)
• MATERIALGALVANIZED
• SPRING EYE BOLTPK1450
• REPRESENTATION PHOTO
• MAGIC TILT UNDERCARRIAGE ~ PK2513
• WILL WORK ON EITHER LEFT OR RIGHT SIDES
• 31" BETWEEN STEP MOUNTS
• USED ON ALUMINUM FRAME TRAILERS
• HOLE SIZE FOR MOUNTING TO FRAME: 1/2"
• BOLT PATTERN FOR MOUNTING TO FRAME MAY NOT MATCH EXISTING UNDERCARRIAGE
