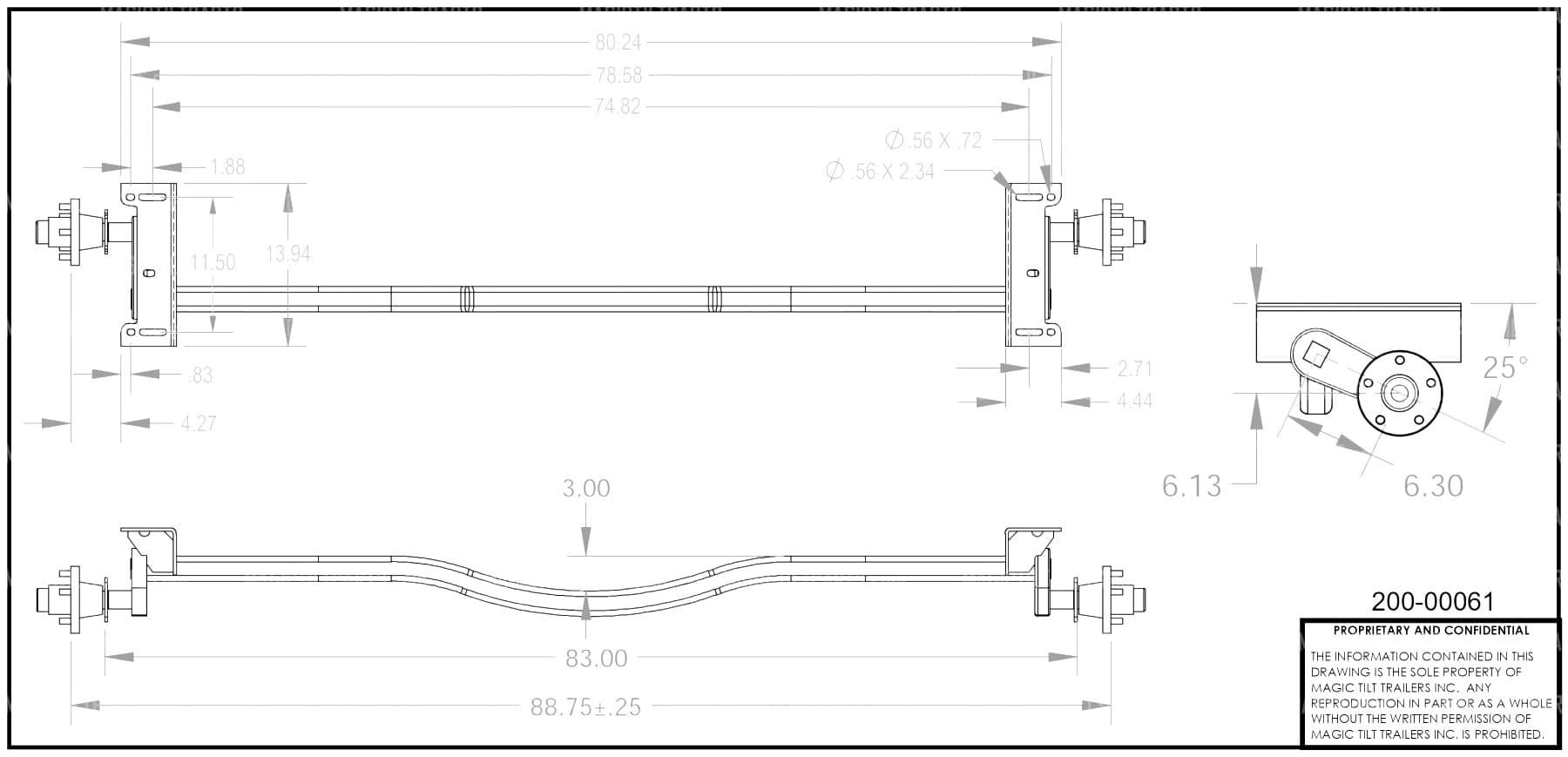

200-00061 ~ TORSION AXLE 2-1/2" "V" 88-3/4T 78FW 3.75K W/HUBS KNOTT (KARAVAN)
SKU: 200-00061
Specifications
- Shipping Weight80 lbs
- TYPEV
- SIZE2-1/2" x 2-1/2"
- FRAME WIDTH78"
- CAPACITY3,750 LBS.
- HUBS5 x 4.5 in.
- BRANDKNOTT (KARAVAN 200-00061)
- MATERIALGALVANIZED
- REPRESENTATION PHOTO
- MAGIC TILT TORSION AXLE W/ HUBS (KNOTT)
- TRACK (HUB FACE TO HUB FACE): 88-3/4"
- LUG NUTS NOT INCLUDED
- MOUNTING HARDWARE (NOT INCLUDED)
- ALUMINUM TUBE FRAME BOTTOM CHANNEL PY9145-T
- ALUMINUM I-BEAM FRAME PY9145
- GALVANIZED TUBE FRAME U-BOLTS
- 95x12x10
