PH1327 ~ TORSION ARM 3" AXLES W/ POSI-LUBE DEXTER / UFP
SKU: PH1327
Specifications
- Shipping Weight11 lbs
- TYPETORSION ARM WITH SPINDLE - POSI-LUBE
- APPLICATION3" x 3" DEXTER / UFP TORSION AXLE
- SPINDLE1-1/16" x 1-3/8"
- CAPACITY3,500 POUNDS
- SIDELEFT OR RIGHT
- FINISHZINC PLATED
- PINCH BOLT5/8"
- BRANDDEXTER / UFP
- REPRESENTATION PHOTO
- MAGIC TILT TORSION ARM & SPINDLE ~ PH1327

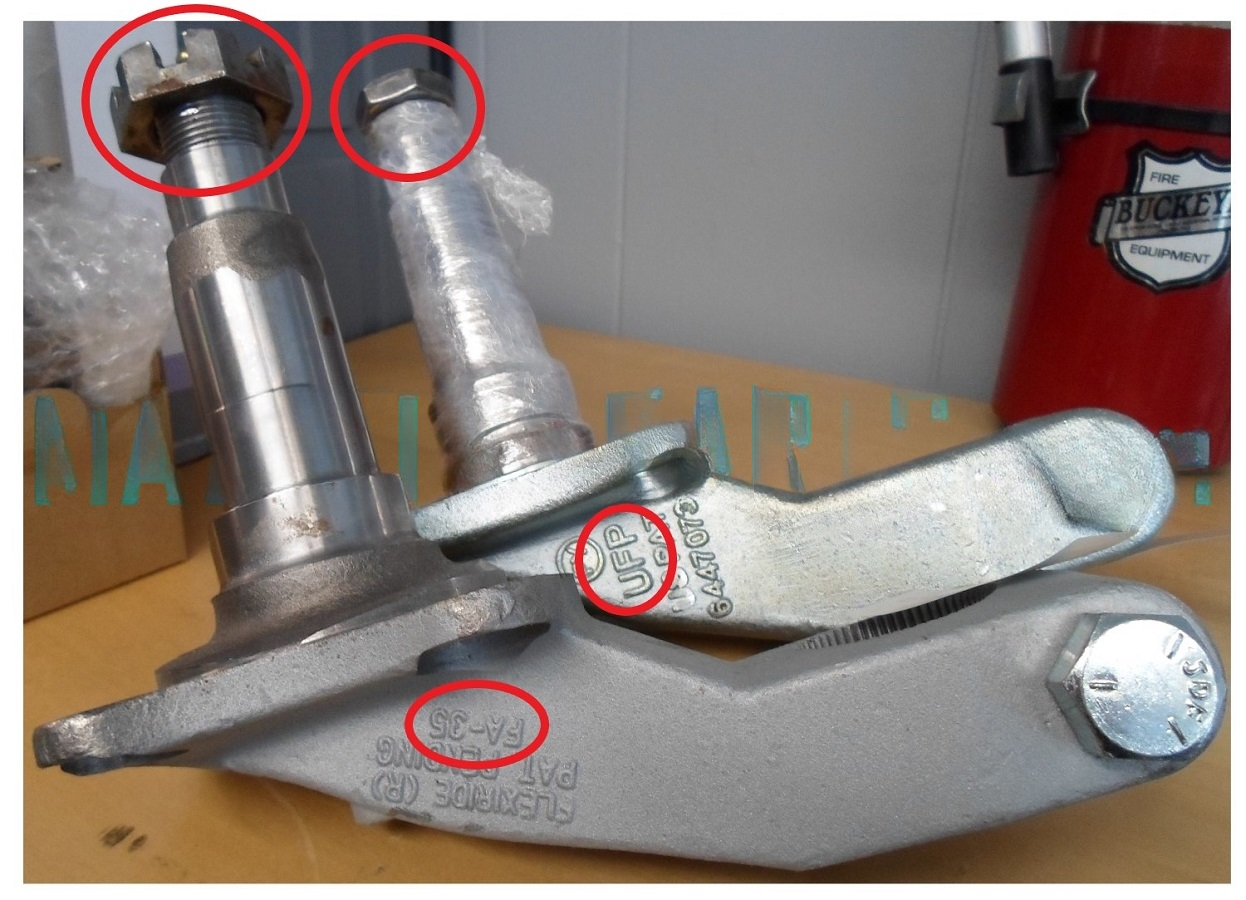

- CAUTION – MAKE SURE YOU PROPERLY IDENTIFY YOUR BRAND OF TORSION ARM AS UFP (SEE SECOND IMAGE)
- INCLUDES 4-HOLE BRAKE PLATE AND TORSION ARM MOUNTING BOLT
- REQUIRES THE FOLLOWING HUB MOUNTING HARDWARE KIT PH2125 (NOT INCLUDED)
Required & Recommended Parts
USE THE FOLLOWING HUBS OR HUB KITS (NOT INCLUDED)
$48.95![10" Disc Rotors - PG2026-DISC ROTOR 10" 5LUG [UFP]](/_next/image?url=%2Fimages%2Fproducts%2FPG2026-1.jpg&w=3840&q=75)
$84.50
$19.95
