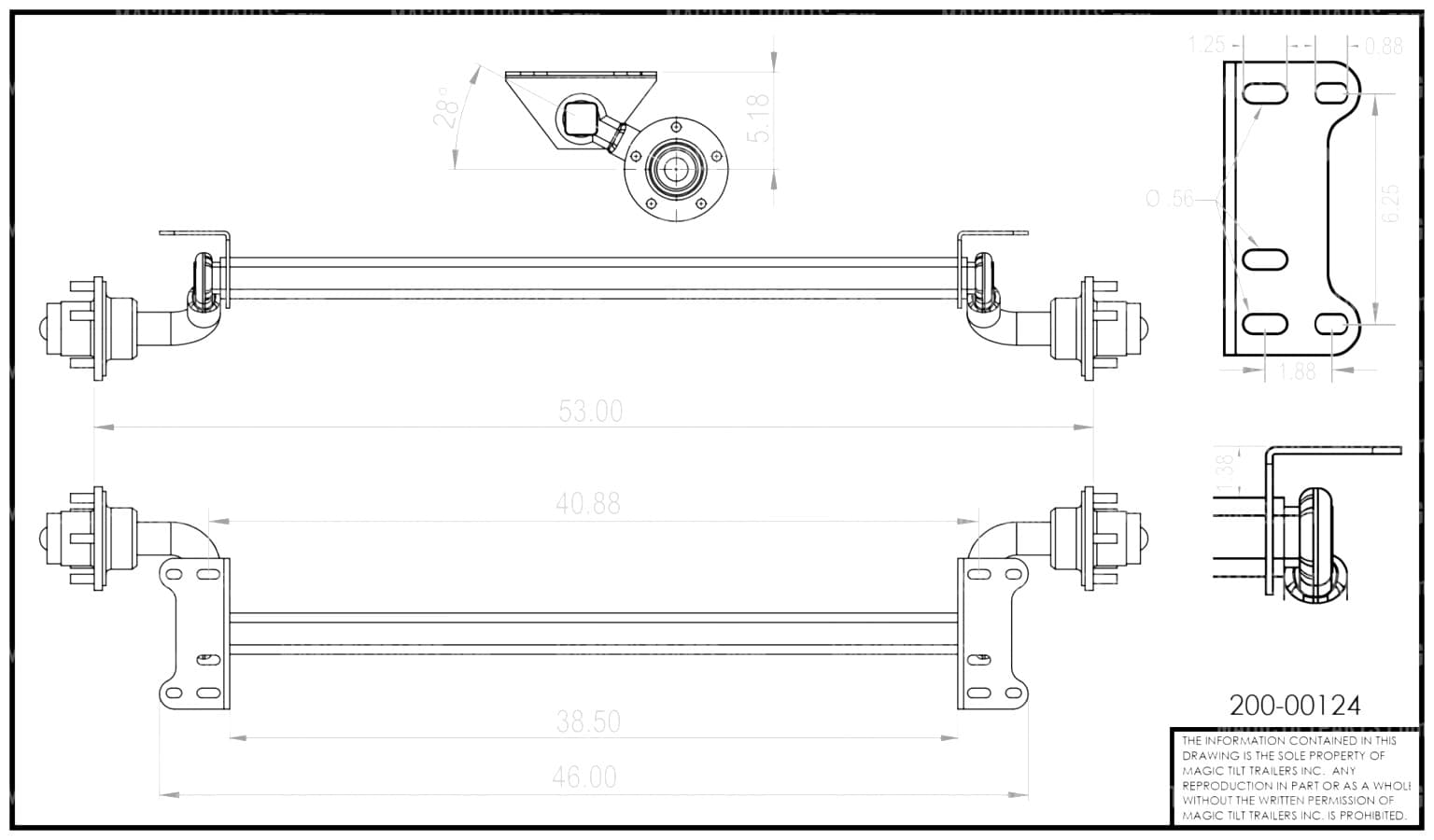

200-00124-GL ~ TORSION AXLE 2-1/4" STRAIGHT 53T 44FW 1.5K W/HUBS KNOTT (KARAVAN)
SKU: 200-00124-GL
Specifications
- Shipping Weight67 lbs
- TYPESTRAIGHT
- SIZE2-1/4" x 2-1/4"
- FRAME WIDTH44"
- CAPACITY1,500 LBS.
- HUBS5 x 4.5 in.
- BRANDKNOTT (KARAVAN 200-00124-GL)
- MATERIALGALVANIZED
- REPRESENTATION PHOTO
- MAGIC TILT TORSION AXLE W/ HUBS (KNOTT)
- TRACK (HUB FACE TO HUB FACE): 53"
- LUG NUTS NOT INCLUDED
- MOUNTING HARDWARE (NOT INCLUDED)
- ALUMINUM TUBE FRAME BOTTOM CHANNEL PY9145-T
- ALUMINUM I-BEAM FRAME PY9145
- GALVANIZED TUBE FRAME U-BOLTS
- 60x13x8
