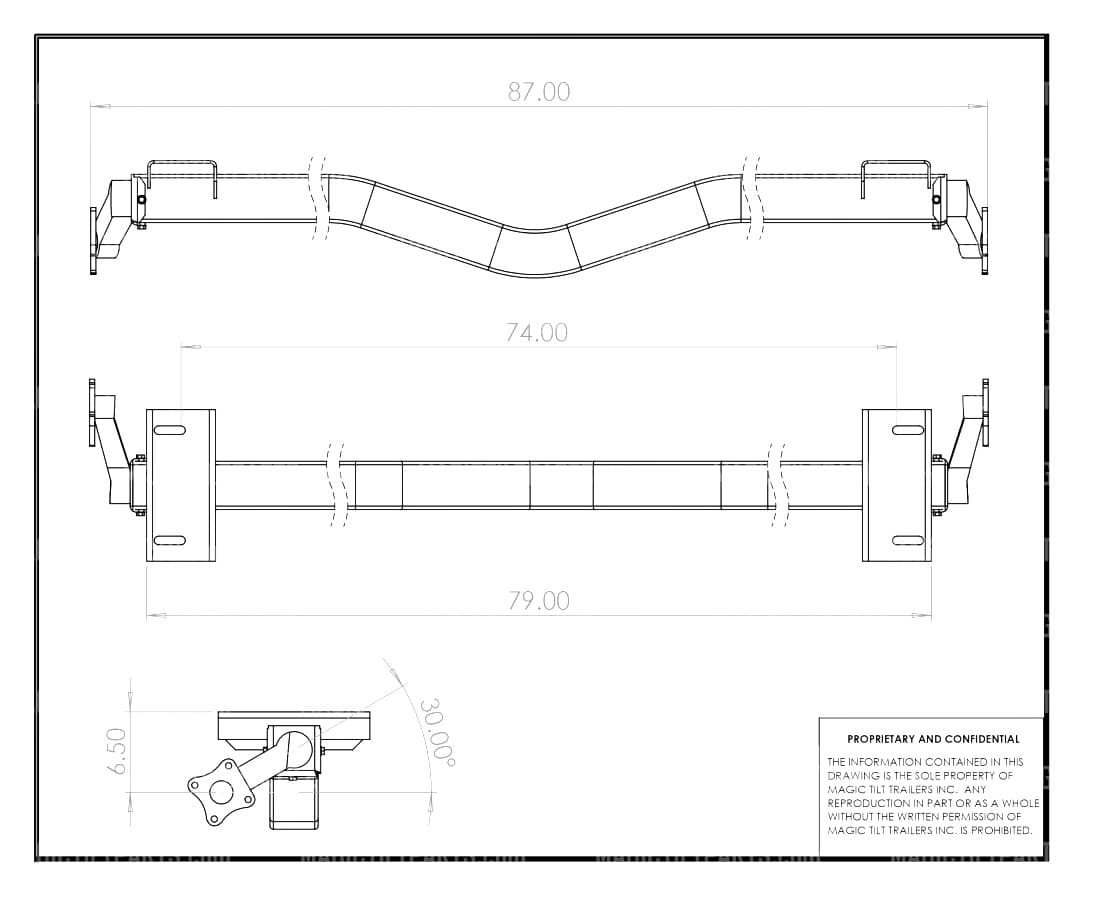

PH1374 ~ TORSION AXLE 2-1/2" "V" 93T 79FW 3.8K NO HUBS DEXTER / TIE DOWN
SKU: PH1374
Specifications
- Shipping Weight80 lbs
- TYPEV
- SIZE2-1/2" x 2-1/2"
- MOUNT HOLE CENTERS74" TO 77"
- CAPACITY3750 LBS.
- SPINDLE1-1/16" x 1-3/8"
- HUBSNONE
- MATERIALGALVANIZED
- BRANDDEXTER / TIE DOWN
- REPRESENTATION PHOTO
- MAGIC TILT TORSION AXLE WITHOUT HUBS TIE DOWN ~ PH1374
- ( PLEASE CALL 941-358-1117 FOR SHIPPING QUOTE)
- FRAME WIDTH:
- 80-1/2" (INSIDE MOUNT)
- 79" (OUTSIDE MOUNT)
- TRACK (HUB-FACE TO HUB-FACE): 93"
- INCLUDES 4-HOLE SQUARE BRAKE PLATES
- ADD-ONS (NOT INCLUDED)
- FRAME MOUNTING HARDWARE:
- ALUMINUM TUBE FRAME BOTTOM CHANNEL PY9145-T
- I-BEAM ALUMINUM FRAME PY9145
- GALVANIZED TUBE FRAME U-BOLTS
