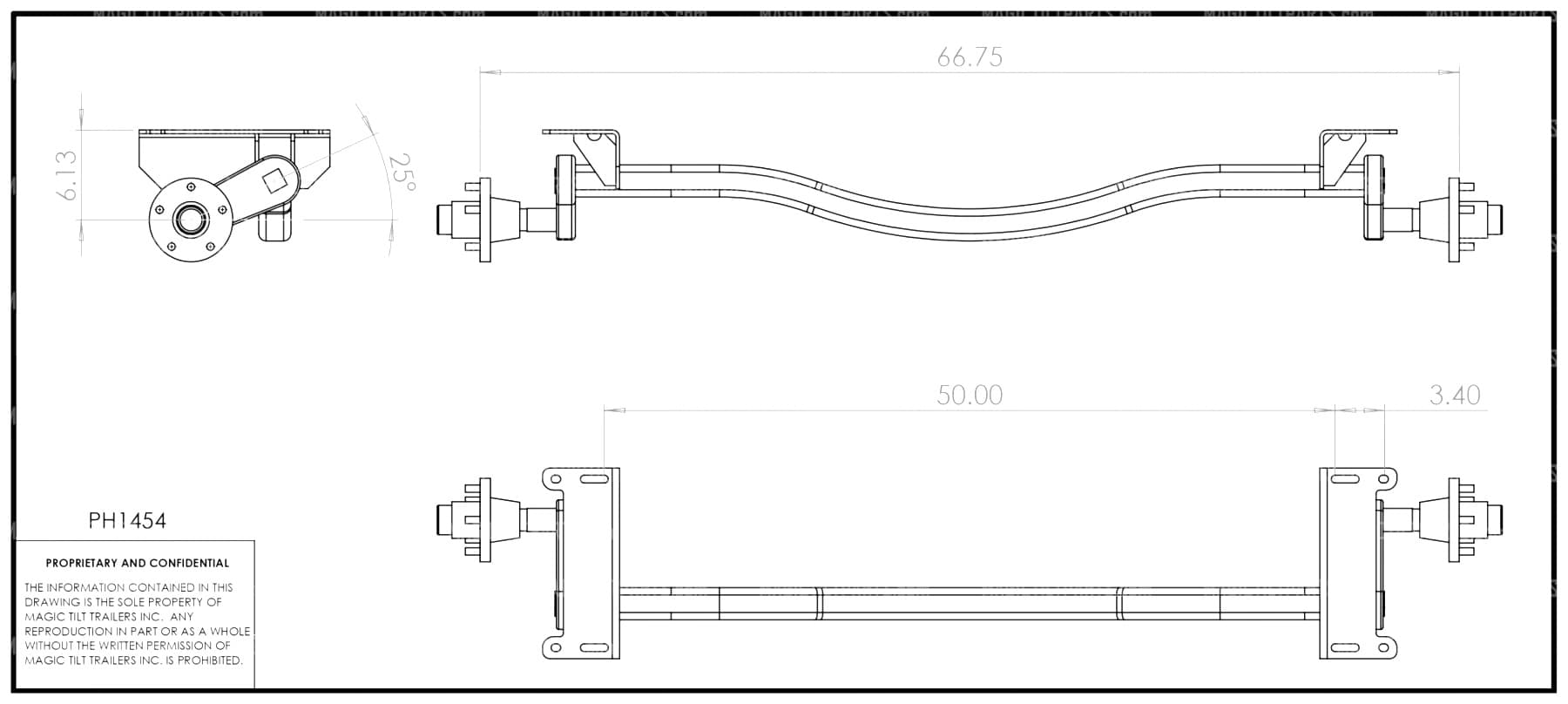

PH1454 ~ TORSION AXLE 2-1/2" "V" 66-3/4T 56FW 2.1K W/HUBS KNOTT (KARAVAN 200-00049)
SKU: PH1454
Specifications
- Shipping Weight75 lbs
- TYPEV
- SIZE2-1/2" x 2-1/2"
- FRAME WIDTH56"
- CAPACITY2100 LBS.
- HUBS5 x 4.5 in.
- BRANDKNOTT (KARAVAN 200-00049)
- MATERIALGALVANIZED
- REPRESENTATION PHOTO
- MAGIC TILT TORSION AXLE W/ HUBS KNOTT ~ PH1454
- TRACK (HUB FACE TO HUB FACE): 66-3/4"
- LUG NUTS NOT INCLUDED
- MOUNTING HARDWARE (NOT INCLUDED)
- ALUMINUM TUBE FRAME BOTTOM CHANNEL PY9145-T
- ALUMINUM I-BEAM FRAME PY9145
- GALVANIZED TUBE FRAME U-BOLTS
- 74x12x10
