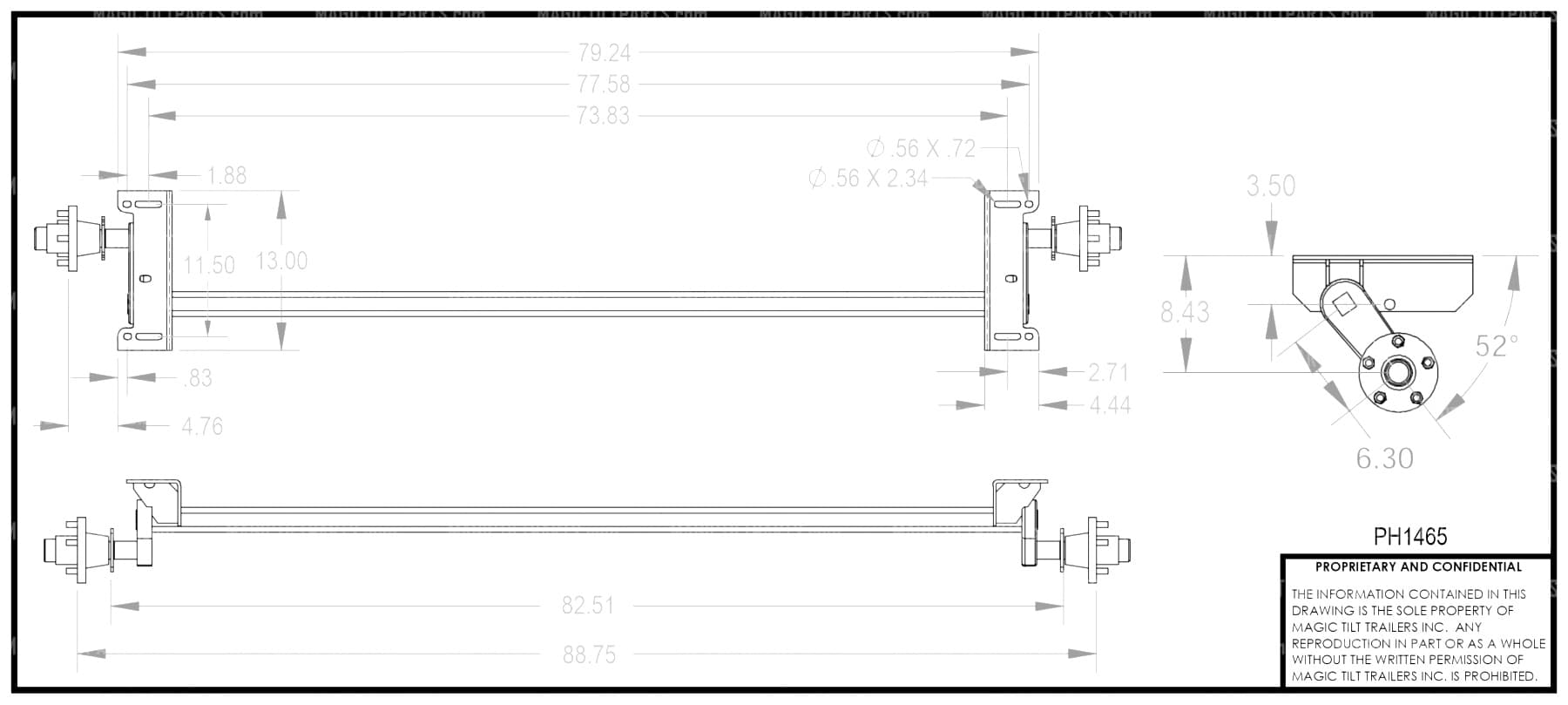

PH1465 ~ TORSION AXLE 2-1/2" STRAIGHT 88-3/4T 77FW 3.8K W/ HUBS KNOTT (KARAVAN 200-200059-GL)
SKU: PH1465
Specifications
- Shipping Weight121 lbs
- TYPESTRAIGHT
- SIZE2-1/2" x 2-1/2"
- FRAME WIDTH77"
- TORSION ARM PITCH52° DOWN
- CAPACITY3750 LBS.
- LUGS5 x 4.5"
- MATERIALGALVANIZED
- BRANDKNOTT (KARAVAN 200-00059-GL)
- REPRESENTATION PHOTO
- MAGIC TILT TORSION AXLE WITH HUBS KNOTT ~ PH1465
- ( PLEASE CALL 941-358-1117 FOR SHIPPING QUOTE)
- TRACK (HUB FACE TO HUB FACE): 88-3/4"
- LUG NUTS NOT INCLUDED
- MOUNTING HARDWARE (NOT INCLUDED)
- ALUMINUM TUBE FRAME BOTTOM CHANNEL PY9145-T
- I-BEAM ALUMINUM FRAME PY9145
- GALVANIZED TUBE FRAME U-BOLTS
