Axles

100-07134-GL ~ FENDER BRACKET TORSION AXLES ALUMINUM FENDER (KARAVAN)

REPRESENTATION PHOTO MAGIC TILT FENDER BRACKET ~ 100-07134-GL MOUNTING HARDWARE NOT INCLUDED MOUNTS TO TORSION ARM ON AXLE (USE NYLOCK NUTS)

100-07313-GL ~ FENDER BRACKET TORSION AXLES PLASTIC FENDER (KARAVAN)

REPRESENTATION PHOTO MAGIC TILT FENDER BRACKET ~ 100-07313-GL MOUNTING HARDWARE NOT INCLUDED MOUNTS TO TORSION ARM ON AXLE (USE NYLOCK NUTS)

2" x 2" 93" Track 76"SC Straight Spring Axles

3 sizes available

2"x2" 93" Track 75"SC "V" Spring Axles

5 sizes available

2"x2" 93" Track 75"SC Straight Spring Axles

2 sizes available

2"x2" 93" Track 76" SC "V" Spring Axles

7 sizes available

2"x2" 93" Track 77"SC Straight Spring Axles

2 sizes available

2"x2" 71" Track 57-3/8"SC Straight Spring Axles

4 sizes available

2"x2" 81.5" Track 68-3/8" SC "V" Spring Axles

3 sizes available

2"x2" 84" Track 67" SC "V" Spring Axles

4 sizes available

2"x2" 84" Track 67" SC Straight Axles

2X2X84TR 67SC 5L HD W/BRK. FLANG

2"x2" 84" Track 68" SC "V" Spring Axles

2X2X84TR 68SC 5LHD

2"x2" 84" Track 68"SC Straight Spring Axles

2 sizes available

2"x2" 86.5" Track 77 3/8"SC Straight Spring Axles

3 sizes available

2"x2" 86.5"Track 73-3/8"SC "V" Spring Axles

4 sizes available

2"x2" 87" Track 73-3/8"SC "V" Spring Axles

2 sizes available

2"x2" 88" Track 73-3/8"SC Straight Spring Axles

2 sizes available

2"x2" 91"Track 73"SC "V" Spring Axles

4 sizes available

2"x2" 91"Track 73"SC Straight Axles

2 sizes available

2"x2" 93.5" Track 80-3/8"SC Straight Spring Axles

3 sizes available

2"x2" 93" Track 77.5" SC "V" Spring Axles

3 sizes available

2"x2" 93" Track 77.5"SC Straight Spring Axles

2X2X93TR 77.5 SC 5L HD

2"x2" 93" Track 78.5"SC "V" Spring Axles

3 sizes available

2"x2" 93"Track 77"SC "V" Spring Axles

3 sizes available

2"x2" 95" Track 78.5"SC "V" Spring Axles

2 sizes available

2"x3" 84" Track 67"SC "V" Spring Axles

3 sizes available

2"x3" 86.5" Track 73-3/8"SC "V" Spring Axles

2 sizes available

2"x3" 86" Track 67"SC "V" Spring Axles

3 sizes available

2"x3" 91" Track 73"SC "V" Spring Axles

4 sizes available

2"x3" 93.5" Track 80-3/8"SC "V" Spring Axles

2 sizes available

2"x3" 93" Track 75"SC "V" Spring Axles

6 sizes available

2"x3" 93" Track 75"SC Straight Spring Axles

2 sizes available

2"x3" 93" Track 76.5"SC "V" Spring Axles

2 sizes available

2"x3" 93" Track 76"SC "V" Spring Axles

6 sizes available

2"x3" 93" Track 78.5"SC "V" Spring Axles

2 sizes available

2"x3" 93" Track 80-3/8"SC Straight Spring Axles

2 sizes available

2"x3" 93" Track 86"SC Straight Spring Axles

3 sizes available

2"x3" 95" Track 76"SC "V" Spring Axles

2 sizes available

200-00061 ~ TORSION AXLE 2-1/2" "V" 88-3/4T 78FW 3.75K W/HUBS KNOTT (KARAVAN)

REPRESENTATION PHOTO MAGIC TILT TORSION AXLE W/ HUBS (KNOTT) TRACK (HUB FACE TO HUB FACE): 88-3/4" LUG NUTS NOT INCLUDED MOUNTING HARDWARE (NOT INCLUDED) ALUMINUM TUBE FRAME BOTTOM CHANNEL PY9145-T ALUMINUM I-BEAM FRAME PY9145 GALVANIZED TUBE FRAME U-BOLTS 95x12x10

200-00102 ~ TORSION AXLE 2-1/2" "V" 89-1/4T 74-1/2FW 3.75K W/HUBS KNOTT (KARAVAN)

REPRESENTATION PHOTO MAGIC TILT TORSION AXLE W/ HUBS (KNOTT) TRACK (HUB FACE TO HUB FACE): 89-1/4" LUG NUTS NOT INCLUDED MOUNTING HARDWARE (NOT INCLUDED) ALUMINUM TUBE FRAME BOTTOM CHANNEL PY9145-T ALUMINUM I-BEAM FRAME PY9145 GALVANIZED TUBE FRAME U-BOLTS 96x12x10

200-00124-GL ~ TORSION AXLE 2-1/4" STRAIGHT 53T 44FW 1.5K W/HUBS KNOTT (KARAVAN)

REPRESENTATION PHOTO MAGIC TILT TORSION AXLE W/ HUBS (KNOTT) TRACK (HUB FACE TO HUB FACE): 53" LUG NUTS NOT INCLUDED MOUNTING HARDWARE (NOT INCLUDED) ALUMINUM TUBE FRAME BOTTOM CHANNEL PY9145-T ALUMINUM I-BEAM FRAME PY9145 GALVANIZED TUBE FRAME U-BOLTS 60x13x8

206-00116-AL ~ 1-AXLE FENDER ALUMINUM 8" x 9-3/4" x 26-1/2" (KARAVAN)

REPRESENTATION PHOTO PRIMARILY USED ON KARAVAN TRAILERS WITH KNOTT TORSION AXES AND 13" TIRES (MAY WORK IN OTHER APPLICATIONS) COMES WITH PRE-DRILLED HOLES FOR 100-07134-GL FENDER BRACKET ON KNOTT TORSION AXLES MOUNTING HARDWARE NOT INCLUDED

3-1/2" x 3-1/2" 79"FW Straight Torsion Axles

3 sizes available

3-1/2" x 3-1/2" 79"FW "V" Torsion Axles

3 sizes available

3" x 3" 69"FW Straight Torsion Axles

2 sizes available

3" x 3" 70"FW "V" Torsion Axles

2 sizes available

3" x 3" 70"FW Straight Torsion Axles

2 sizes available

3" x 3" 76"FW "V" Torsion Axles

2 sizes available

3" x 3" 76"FW Straight Torsion Axles

2 sizes available

3" x 3" 79"FW "V" Torsion Axles

3 sizes available

3" x 3" 79"FW Straight Torsion Axles

2 sizes available

3" x 3" FW 86" Straight Torsion Axles

AX[STR]3X3 W/5LUG 86FRM ASSY

4" x 4" 79"FW Straight Torsion Axles

7 sizes available

Actuators for 3" Tongues, In-Line

6K# 3HOLE ACTUATOR

Actuators for 3" Tongues, In-Line W/Swing

6K# ACTUATOR W/SWING

COTTER PINS

COTTER PIN 1/8"X1-1/4"[UFP AXLE]

COUPLERS

2 sizes available

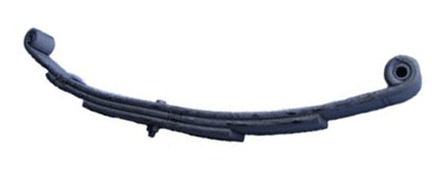

Double Eye Springs

5 sizes available

PD1861-L ~ 8-LUG HUB ASSEMBLY 1-1/4"x1-3/4" GREASED (NON-UFP)

REPRESENTATION PHOTO MAGIC TILT PRE-GREASED HUB ASSEMBLY ~ PD1861-L ALL 6K TO 7K AXLES THAT USE A 2.23" ID SEAL AND A 1" CASTLE NUT INCLUDES: 1 x PD1860 GALV HUB W/ LONG STUDS 8 x PD2250 LUG NUT 1/2" 1 x PE1555 BEARING 1-1/4" (14125A) (INSTALLED) 1 x PE1600 BEARING 1-3/4" (25580) (INSTALLED) 1 x PE1855 RACE OUTER (14276) (INSTALLED) 1 x PE1900 RACE INNER (25520) (INSTALLED) 1 x PE2100 SEAL 3.38" OD x 2.23" ID (22333) (INSTALLED) 1 x PE2308 POSI-LUBE DUST CAP 2.717" 1 x PE2311 POSI-LUBE RUBBER PLUG 1 x PH1340 COTTER PIN 1/8" x 1-3/4" PLATED COMES PRE-GREASED AND ASSEMBLED - READY TO USE

PD2550-L ~ 6-LUG HUB ASSEMBLY 1-1/4"x1-3/4" GREASED (UFP)

REPRESENTATION PHOTO MAGIC TILT PRE-GREASED HUB ASSEMBLY ~ PD2550-L ANY AXLE USING 1-1/4" x 1-3/4" BEARINGS, A SEAL WITH 2.125" ID, PH2130 HARDWARE INCLUDES: 1 x PD1857 GALV HUB W/ 2" LONG STUDS 6 x PD2250 LUG NUT 1/2" 1 x PE1550 BEARING 1-1/4" (151123) (INSTALLED) 1 x PE1600 BEARING 1-3/4" (25580) (INSTALLED) 1 x PE1850 RACE OUTER (15245) (INSTALLED) 1 x PE1900 RACE INNER (25520) (INSTALLED) 1 x PE2101 SEAL 3.38" OD x 2.125" ID (21333) (INSTALLED) 1 x PE2303 POSI-LUBE DUST CAP 2.441" 1 x PE2311 POSI-LUBE RUBBER PLUG 1 x PH2012 COTTER PIN 1/8" x 1-1/4" PLATED COMES PRE-GREASED AND ASSEMBLED - READY TO USE

PG1090-1 ~ BRAKE LOCKOUT CLIP A-160 ACTUATOR DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT BRAKE LOCKOUT CLIP ~ PG1090-1 CAUTION! IF LOCKOUT IS NOT REMOVED DURING NORMAL TOWING THE TRAILER'S BRAKES WILL NOT FUNCTION. CUSTOMER ASSUMES RESPONSIBILITY FOR SAFE USAGE. ALLOWS TRAILERS WITH DEXTER / UFP 16K IN-LINE SURGE DISC BRAKES TO BE BACKED UP WHILE NOT PLUGGED INTO THE VEHICLE. DESIGED TO SLIP BETWEEN HOUSING AND COUPLER TO FILL THE TRAVEL SLOT.

PG5058 ~ DISC BRAKE ADAPTER PLATE (DEXTER / UFP)

REPRESENTATION PHOTO MAGIC TILT ADAPTER PLATE ~ PG5058 ADAPTS 5-HOLE ROUND BRAKE PLATES TO 4-HOLE SQUARE ON 5.2K TO 7K AXLES. ALOWS DIRECT MOUNTING OF DEXTER / UFP CALIPERS ON 12" ROTORS. REQUIRES THE FOLLOWING HARDWARE (NOT INCLUDED) 5 X PY0215 3/8" x 1-1/14" BOLT 5 X PY1305 3/8" NYLOCK NUT

PH1300 ~ SPRING AXLE 2 x 2 (CUSTOM)

3.5K DEXTER / UFP

Magic Tilt Heavy duty custom spring axle no Hubs ~ PH1300 Contact us at 877-795-1965 for a shipping quote (V - Add PH0999, $27.95) V - Above Springs Only Good to know: Includes 4-Hole Square Brake Plate Axle will come with an "X" Drawn On The Tube. The x should face the back of the trailer when installed.

PH1320 ~ REMOVABLE SPINDLE 3750# TORSION DEXTER / TIE DOWN

REPRESENTATION PHOTO MAGIC TILT TORSION AXLE SPINDLE ~ PH1320 INCLUDES: 1" NUT, WASHER AND COTTER PIN FOR MOUNTING SPINDLE TO TORSION ARM DOES NOT INCLUDE FOLLOWING SPINDLE-TO-HUB HARDWARE: PH2060 SPINDLE WASHER PH2000 SPINDLE NUT PH2014 COTTER PIN USE WITH FOLLOWING HUBS (NOT INCLUDED): PD1702-L IDLER HUB KIT PG2026-1 DISC ROTOR

PH1325 ~ TORSION ARM 3" AXLES NON-POSI LUBE DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT TORSION ARM & SPINDLE ~ PH1325 CAUTION – MAKE SURE YOU PROPERLY IDENTIFY YOUR BRAND OF TORSION ARM AS UFP (SEE SECOND IMAGE) INCLUDES 4-HOLE BRAKE PLATE AND TORSION ARM MOUNTING BOLT REQUIRES THE FOLLOWING HUB MOUNTING HARDWARE KIT PH2125 (NOT INCLUDED)

PH1327 ~ TORSION ARM 3" AXLES W/ POSI-LUBE DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT TORSION ARM & SPINDLE ~ PH1327 CAUTION – MAKE SURE YOU PROPERLY IDENTIFY YOUR BRAND OF TORSION ARM AS UFP (SEE SECOND IMAGE) INCLUDES 4-HOLE BRAKE PLATE AND TORSION ARM MOUNTING BOLT REQUIRES THE FOLLOWING HUB MOUNTING HARDWARE KIT PH2125 (NOT INCLUDED)

PH1330 ~ TORSION ARM 3-1/2" AXLES SQUARE PLATE DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT TORSION ARM & SPINDLE ~ PH1330 INCLUDES 4-HOLE BRAKE PLATE AND TORSION ARM-TO-AXLE MOUNTING HARDWARE

PH1349 ~ TORSION AXLE WELD-ON BRACKET 3" DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT WELD-ON BRACKET

PH1374 ~ TORSION AXLE 2-1/2" "V" 93T 79FW 3.8K NO HUBS DEXTER / TIE DOWN

REPRESENTATION PHOTO MAGIC TILT TORSION AXLE WITHOUT HUBS TIE DOWN ~ PH1374 ( PLEASE CALL 941-358-1117 FOR SHIPPING QUOTE) FRAME WIDTH: 80-1/2" (INSIDE MOUNT) 79" (OUTSIDE MOUNT) TRACK (HUB-FACE TO HUB-FACE): 93" INCLUDES 4-HOLE SQUARE BRAKE PLATES ADD-ONS (NOT INCLUDED) FRAME MOUNTING HARDWARE: ALUMINUM TUBE FRAME BOTTOM CHANNEL PY9145-T I-BEAM ALUMINUM FRAME PY9145 GALVANIZED TUBE FRAME U-BOLTS

PH1450 ~ CUSTOM SPRING AXLE 2x3 UP TO 89T 5-6K DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT HEAVY DUTY CUSTOM SPRING AXLE NO HUBS ~ PH1450 PLEASE CALL 941-358-1117 FOR SHIPPING QUOTE (V - ADD PH0999, $27.95) V - ABOVE SPRINGS ONLY INCLUDES 4-HOLE SQUARE BRAKE PLATES STANDARD. CAN BE ORDERED WITH 5-HOLE ROUND BRAKE PLATES AXLE WILL COME WITH AN "X" DRAWN ON THE TUBE. THE X SHOULD FACE THE BACK OF THE TRAILER WHEN INSTALLED.

PH1454 ~ TORSION AXLE 2-1/2" "V" 66-3/4T 56FW 2.1K W/HUBS KNOTT (KARAVAN 200-00049)

REPRESENTATION PHOTO MAGIC TILT TORSION AXLE W/ HUBS KNOTT ~ PH1454 TRACK (HUB FACE TO HUB FACE): 66-3/4" LUG NUTS NOT INCLUDED MOUNTING HARDWARE (NOT INCLUDED) ALUMINUM TUBE FRAME BOTTOM CHANNEL PY9145-T ALUMINUM I-BEAM FRAME PY9145 GALVANIZED TUBE FRAME U-BOLTS 74x12x10

PH1462 ~ TORSION AXLE 2-1/2" STRAIGHT 92T 81-1/2FW 3K W/ HUBS KNOTT

REPRESENTATION PHOTO MAGIC TILT TORSION AXLE WITH HUBS KNOTT ~ PH1462 ( PLEASE CALL 941-358-1117 FOR SHIPPING QUOTE) SPECIAL ORDER - PLEASE ALLOW EXTRA TIME FRAME WIDTH: 83" (INSIDE MOUNT) 81-1/2" (OUTSIDE MOUNT) TRACK (HUB FACE TO HUB FACE): 92" LUG NUTS NOT INCLUDED MOUNTING HARDWARE (NOT INCLUDED) ALUMINUM TUBE FRAME BOTTOM CHANNEL PY9145-T ALUMINUM I-BEAM FRAME PY9145 GALVANIZED TUBE FRAME U-BOLTS

PH1465 ~ TORSION AXLE 2-1/2" STRAIGHT 88-3/4T 77FW 3.8K W/ HUBS KNOTT (KARAVAN 200-200059-GL)

REPRESENTATION PHOTO MAGIC TILT TORSION AXLE WITH HUBS KNOTT ~ PH1465 ( PLEASE CALL 941-358-1117 FOR SHIPPING QUOTE) TRACK (HUB FACE TO HUB FACE): 88-3/4" LUG NUTS NOT INCLUDED MOUNTING HARDWARE (NOT INCLUDED) ALUMINUM TUBE FRAME BOTTOM CHANNEL PY9145-T I-BEAM ALUMINUM FRAME PY9145 GALVANIZED TUBE FRAME U-BOLTS

PH150-40 ~ TORSION ARM FOR 3" AXLES FA-35 (NON-UFP)

REPRESENTATION PHOTO MAGIC TILT TORSION ARM & SPINDLE ~ PH150-40 CAUTION – MAKE SURE YOU PROPERLY IDENTIFY YOUR BRAND OF TORSION ARM AS FA-35 (SEE SECOND IMAGE) INCLUDES 4-HOLE BRAKE PLATE, TORSION ARM MOUNTING BOLT, POSI-LUBE FITTING. THIS ARM WILL NOT WORK ON STANDARD DEXTER / UFP AXLES.

PH150-72 ~ TORSION AXLE WELD-ON BRACKET 4" UCF

REPRESENTATION PHOTO OUT OF STOCK MAGIC TILT MOUNTING BRACKET ~ PH150-72 TO ORDER, SELECT LEFT OR RIGHT FROM DROP-DOWN STANDING BEHIND TRAILER LOOKING FORWARD

PH1500 ~ CUSTOM SPRING AXLE 2x3 UP TO 88T 3.5K DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT HEAVY DUTY CUSTOM SPRING AXLE NO HUBS ~ PH1500 PLEASE CALL 941-358-1117 FOR SHIPPING QUOTE (V - ADD PH0999, $27.95) V - ABOVE SPRINGS ONLY INCLUDES 4-HOLE SQUARE BRAKE PLATES. AXLE WILL COME WITH AN "X" DRAWN ON THE TUBE. THE X SHOULD FACE THE BACK OF THE TRAILER WHEN INSTALLED.

PH1600 ~ TORSION AXLE 3x3 (CUSTOM) 73-95T 3.5K NO HUBS (NON UFP)

REPRESENTATION PHOTO MAGIC TILT CUSTOM 3x3 TORSION AXLE NO HUBS ~ PH1600 PLEASE CALL 941-358-1117 FOR SHIPPING QUOTE SPECIAL ORDER - PLEASE ALLOW ADDITIONAL TIME FOR SHIPPING V + $22.95 (PH0999) FRAME WIDTH MUST BE 63" OR GREATER INCLUDES 4-HOLE SQUARE BRAKE PLATES. MOUNTING HARDWARE (NOT INCLUDED) ALUMINUM TUBE FRAME BOTTOM CHANNEL PY9145-T I-BEAM ALUMINUM FRAME PY9145

PH1605 ~ CUSTOM TORSION AXLE 3-1/2x3-1/2 73-95T 5-6K DEXTER/UFP

REPRESENTATION PHOTO MAGIC TILT CUSTOM 3-1/2x3-1/2 TORSION AXLE NO HUBS ~ PH1605 (PLEASE CALL 941-358-1117 FOR SHIPPING QUOTE) SPECIAL ORDER - PLEASE ALLOW ADDITIONAL TIME FOR SHIPPING V + $22.95 (PH0999) INCLUDES 4-HOLE SQUARE BRAKE PLATES STANDARD. CAN BE ORDERED WITH 5-HOLE ROUND BRAKE PLATES. MOUNTING HARDWARE TO FRAME (NOT INCLUDED) ALUMINUM TUBE FRAME BOTTOM CHANNEL PY9145-T I-BEAM ALUMINUM FRAME PY9145

PH1752 ~ SPINDLE 1-1/16" x 1-1/16" 1.5K UCF

REPRESENTATION PHOTO MAGIC TILT SPINDLE ~ PH1752

PH1800 ~ SPINDLE 1-1/16" x 1-1/16" 2.5K DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT SPINDLE ~ PH1800

PH1849 ~ SPINDLE 1-1/16" x 1-3/8" 3.5K DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT SPINDLE ~ PH1849

PH1903 ~ SPINDLE 1-1/4" x 1-3/4" 5-6K DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT SPINDLE ~ PH1903 6,000 POUNDS (8-LUG)

PH1906 ~ SPINDLE 1-1/4" x 1-3/4" 5-6K DEXTER / UFP

REPRESENTATION PHOTO MAGIC TILT SPINDLE ~ PH1906 6,000 POUNDS (8-LUG)

PH1980 ~ SPINDLE NUT 13/16"

REPRESENTATION PHOTO MAGIC TILT SPINDLE NUT ~ PH1980 SOLD INDIVIDUALLY

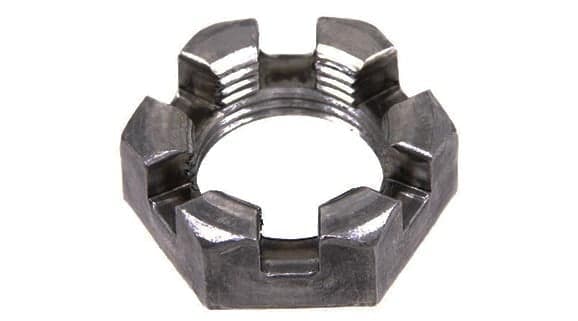

PH2000 ~ SPINDLE NUT 1"

REPRESENTATION PHOTO MAGIC TILT SPINDLE NUT ~ PH2000 SOLD INDIVIDUALLY

PH2050 ~ AXLE WASHER 3/4" F436

REPRESENTATION PHOTO MAGIC TILT AXLE WASHER ~ PH2050 SOLD INDIVIDUALLY

PH2060 ~ AXLE WASHER 1"

REPRESENTATION PHOTO MAGIC TILT AXLE WASHER ~ PH2060 SOLD INDIVIDUALLY

PH2065 ~ AXLE D WASHER 3/4" x 13/16" x .137" (DEXTER / UFP)

REPRESENTATION PHOTO MAGIC TILT AXLE WASHER ~ PH2065 SOLD INDIVIDUALLY THINNER. USED ON 2000 TO 3500 LB. UFP AXLES

PH2066 ~ AXLE D WASHER 3/4" x 13/16" x .184" (DEXTER / UPF)

REPRESENTATION PHOTO MAGIC TILT AXLE WASHER ~ PH2066 SOLD INDIVIDUALLY THICKER. USED ON 5000 LB. AND GREATER UFP AXLES

PH2070 ~ AXLE D WASHER 1"

REPRESENTATION PHOTO MAGIC TILT AXLE WASHER ~ PH2070 SOLD INDIVIDUALLY

PH2105 ~ TANG WASHER 1"

REPRESENTATION PHOTO MAGIC TILT TANG WASHER ~ PH2105 SOLD INDIVIDUALLY

PH2108 ~ SPINDLE NUT RETAINER

REPRESENTATION PHOTO MAGIC TILT SPINDLE NUT RETAINER ~ PH2108 SOLD INDIVIDUALLY

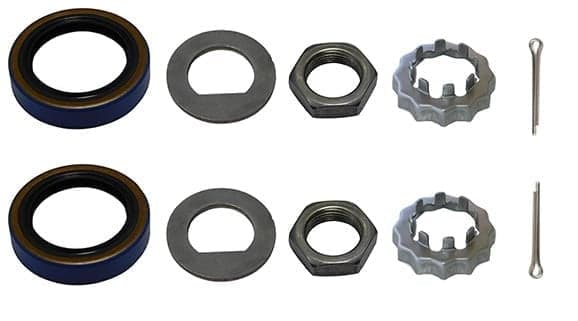

PH2145 ~ HUB CONVERSION KIT 1-1/16" SPINDLES (NON-UFP HUBS to UFP AXLES)

REPRESENTATION PHOTO MAGIC TILT HUB CONVERSION KIT ~ PH2145 INCLUDES: ENOUGH HARDWARE TO CONVERT TWO HUBS TO 1-1/16" UFP-STYLE SPINDLES 2 x PE2010 SEAL 1-1/16" UFP (125-198) 2 x PH1980 SPINDLE NUT 13/16" UFP 2 x PH2012 COTTER PIN 1/8" x 1-1/4" UFP 2 x PH2065 3/4" AXLE D WASHER 3/32" UFP 2 x PH2108 SPINDLE NUT RETAINER UFP

PH2150 ~ HUB CONVERSION KIT 1-3/8" SPINDLES (NON-UFP HUBS to UFP AXLES)

REPRESENTATION PHOTO MAGIC TILT HUB CONVERSION KIT ~ PH2150 INCLUDES: ENOUGH HARDWARE TO CONVERT TWO HUBS TO 3.5K UFP-STYLE SPINDLES 2 x PE2055 SEAL 1-3/8" UFP (168-257) 2 x PH1980 SPINDLE NUT 13/16" UFP 2 x PH2012 COTTER PIN 1/8" x 1-1/4" UFP 2 x PH2065 3/4" AXLE D WASHER 3/32" UFP 2 x PH2108 SPINDLE NUT RETAINER UFP

PH2155 ~ HUB CONVERSION KIT 1-3/4" SPINDLES (NON-UFP HUBS to UFP AXLES)

REPRESENTATION PHOTO MAGIC TILT HUB CONVERSION KIT ~ PH2155 INCLUDES: ENOUGH HARDWARE TO CONVERT TWO HUBS TO ALL UFP-STYLE 1-1/4" x 1-3/4" SPINDLES 2 x PE2101 SEAL 1-3/4" UFP (21333) 2 x PH1980 SPINDLE NUT 13/16" UFP 2 x PH2012 COTTER PIN 1/8" x 1-1/4" UFP 2 x PH2066 3/4" AXLE D WASHER 3/16" UFP 2 x PH2108 SPINDLE NUT RETAINER UFP

PH2160 ~ CONVERSION KIT (5-LUG 3.5K UFP ROTORS & HUBS to NON-UFP AXLES)

REPRESENTATION PHOTO MAGIC TILT HUB/ROTOR CONVERSION KIT ~ PH2160 INCLUDES: ENOUGH HARDWARE TO CONVERT TWO 5-LUG ROTORS OR HUBS TO EITHER 1" D OR 1" ROUND SPINDLES 2 x PE2050 SEAL 1-3/8" NON-UFP (171-255) 2 x PH2014 COTTER PIN 1/8" x 1-3/4" (1" SPINDLE THREADS) 2 x PH2000 AXLE NUT 1" CASTLE NON-UFP 2 x PH2105 TANG WASHER (1" D-SPINDLES) 2 x PH2070 SPINDLE WASHER (1" D-SPINDLES) 2 x PH2060 SPINDLE WASHER (1" ROUND SPINDLES)

PH6025

AX[V]2X2X86TR 68SC HD W/FLG [NO HUBS]

PJ1350 ~ DOUBLE-EYE SPRING 20"

REPRESENTATION PHOTO MAGIC TILT LEAF SPRING ~ PJ1350 # LEAF: 3 DOUBLE-EYE SPRINGS ARE MEASURED FROM THE CENTER OF THE FRONT EYE TO THE CENTER OF THE REAR EYE. INCLUDES .58" ID NYLON SPRING BUSHINGS (ALLOWS FOR GALVANIZED 1/2" BOLT) DOES NOT INCLUDE MOUNTING HARDWARE MOUNTING HARDWARE KITS HARDWARE KITS

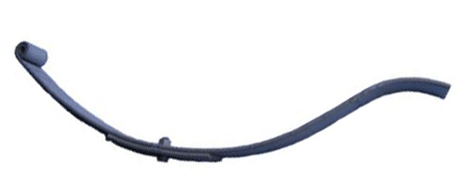

Single Eye Spring

8 sizes available

SPINDLE NUT

AXLE NUT 3/4" ID

Spindles

4 sizes available

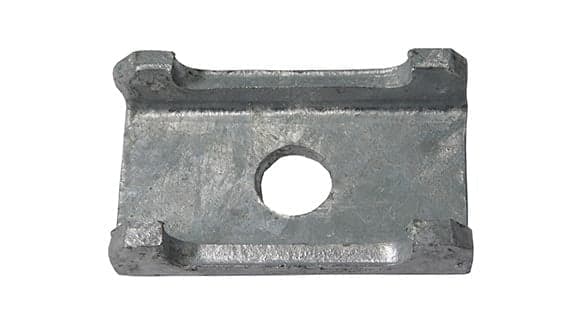

Spring Tabs

3 sizes available

Torsion Arms

5 sizes available

UFP DEALER LOCKOUT

DEALER LOCKOUT -6K/7K
